Stainless Steel IP65 20Mpa Ceramic Pressure Sensor For Compressor
Stainless Steel IP65 20Mpa Ceramic Pressure Sensor For Compressor
Production Description
ceramic pressure sensor is made of high quality stainless steel structure, the core and the pressure sensor chips are imported from Germany, the use of digital calibration and compensation technology, and passed the safety certification and CE certification.Widely used in compressor, automobile, air conditioning and other field pressure measurement.
|
Pressure range |
0~0.2bar...20Mpa(OEM) |
|
Pressure type |
Gauge (G) |
|
Accuracy |
±0.25%FSm, ±0.5%FS |
|
Material |
Membrane: ceramic Housing:Stainless steel |
|
Output signal |
4~20mA 1-5V 0-5V 0.5~4.5V 0~10V 100mv R |
|
Power supply |
10~30Vdc 5V |
|
Electrical connection |
Packard , DINS43650 , plug connection, cable connection, water proof outlet |
|
Pressure connector |
G1/2, G1/4, NPT1/4, 7/16-20UNF, M20×1.5 |
|
Stability |
Typical ±0.1%FS Max. ±0.2%FS |
|
Overload pressure |
1.5 times of rated pressure (1.5X) |
|
Operating temperature range |
-30~80℃ |
|
protection |
IP65 (OEM) |
|
certification |
CE ,Ex ,ROHS |
In order to meet different connection requirements, it has designed four electrical connections.They are DIN43650(Hirschmann),cable connection,plug connection,packard.
Feature
1. Overpressure Protection
Withstand the instantaneous impact of 2.5 times the range pressure
2. Wide Voltage Supply
10-30V wide voltage range optional
3. German Imported Chip
High stability, effective suppression of power frequency interference
4. 3mm Lead Pressure Hole
Protect the internal sensor precision work for a long time

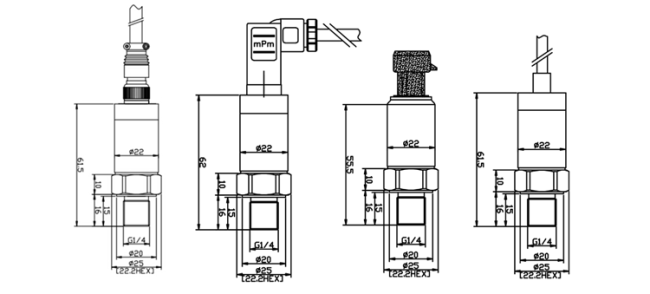

Dimensions

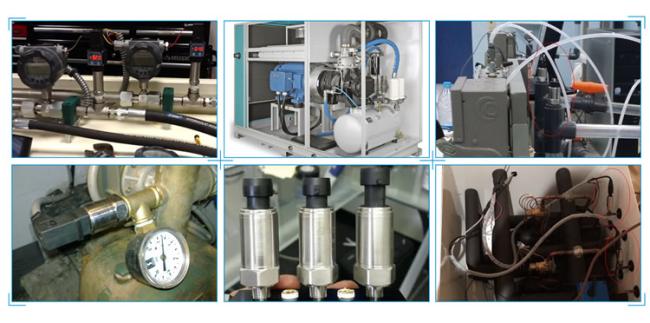

Application:
Process control system Air compressor Refrigeration system
CNGSNG gas station Natural gas HVAC
Oil pumpdrilling Food industry Chemical industry
Hydraulic control system pump&water system Others
