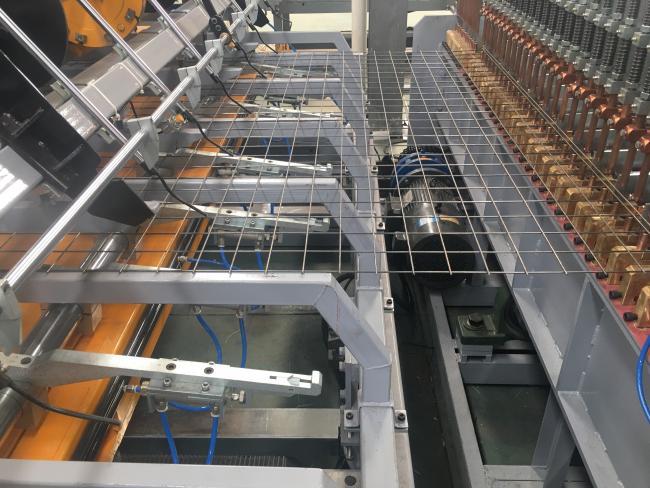

Roller Bending Q235 Wire Mesh Roll Welding Machine For Carbon Steel
Full-Auto Mesh Welding Roll Mesh And Panel Machine
this machine can make for the roll mesh , for your fence and your cage wire.
we can make the mini long wire spacing 20mm.(wire diameter 2-5mm)
1) The welding electrodes head use high-quality materials, which make them more wearable and with better conductive, and also have a long life, reduce production costs.
2) The improvement of design of welding transformers meets the demand to weld continuously wires of 5+5mm at a high speed at the moment when saving energy.
3) 61 electrodes adopt circulating water cooling, which extends their service lives, and ensures the long-term operation of the equipment.
| Product type | DNW-33QB Full-auto Type |
| Working speed max. | 40-60Times/Min. |
| Width range of wire mesh | ≤ 2500mm |
| Length range of wire mesh | ≧1000mm |
| Longitudinal wire spacing | ≧50mm variable from mm it can be adjusted |
| Cross wire spacing | ≧50mm Freely programming adjustments |
| Cross wire diameter | 3-6mm |
| Max. welding capacity | 6+6mm |
| Welding wire material |
low carbon steel galvanized wire; cold drawn wire; Apply to clean wires whose surface are without excessive oxides, foreign matter, moisture |
| Number of max. welding spot | 51PCS/ROW |
| Longitudinal wire feeding method | pre cut in |
| Cross wire feeding method | pre cut in |
| Control method | PLC programming control, servo stepper system |
| Transformer power | 160KVA*9 Cooling water: each transformer has a separate microcomputer |
| The Allowed Fluctuation Range for External Power | ±10% |
| Air consumption pressure | 0.6-0.8Mpa 3.4m³/minute |
| bending | online bending finished on one time |
