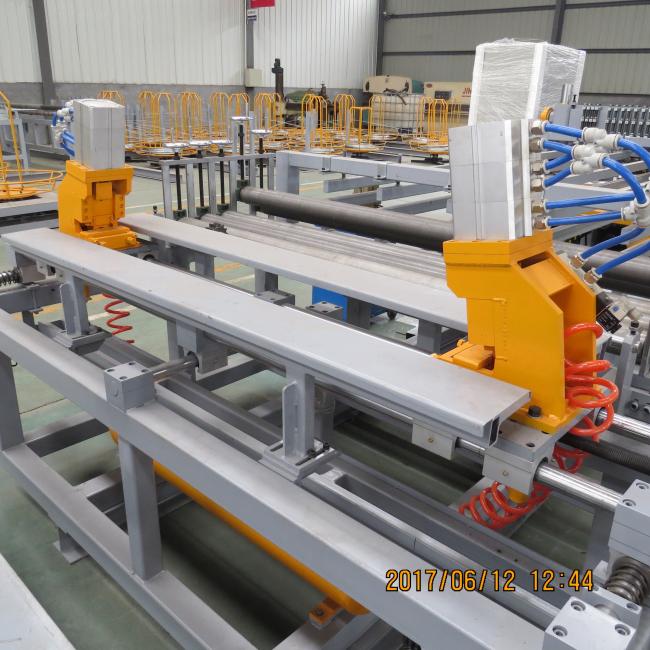

Full Auto 125KVA Wire Mesh Welding Machine For Breeding Cage
Full-Auto Layer Breeding Cage Wire Mesh Welding Machine
Long wire and cross wire are all coil in ,they had made for nearly 10years and they are the first one type making for cross wire coil in China.
We will continue to improve, perfect and improve the appearance, quality, performance and after-sales of our products, strive to provide customers with high-quality products and after-sales service, and strive to provide users with cost-effective wire mesh welding equipment.
Welding host: mechanical welding is adopted for welding, and a special pressure spring is equipped above the electrode head (after special treatment, the fatigue degree can be reduced), which can reduce the damage of the electrode to the surface of the solder joint during welding.
Stepless adjustment of the welding distance of the warp line is realized, the structure of the welding transformer is enhanced, and the special forced water cooling system is configured to ensure that the long-time operation does not generate heat, and the welding effect is excellent.
All the upper electrode heads can be lowered as a whole.
| Product type | HJ-20 Full-auto Type |
| Working speed max. | 70-90s/Min. |
| Width range of wire mesh | ≤ 2000 |
| Length range of wire mesh | ≧1000mm |
| Longitudinal wire spacing | ≧50mm variable from mm it can be adjusted |
| Cross wire spacing | ≧25mm Freely programming adjustments |
| Cross wire diameter | 2.0mm-4.0mm |
| Max. welding capacity | 4+4mm |
| Welding wire material |
low carbon steel galvanized wire; cold drawn wire; Apply to clean wires whose surface are without excessive oxides, foreign matter, moisture |
| Number of max. welding spot | 61PCS/ROW |
| Longitudinal wire feeding method | coil in |
| Cross wire feeding method | coil in |
| Control method | PLC programming control, servo stepper system |
| Transformer power | 125KVA*7 Cooling water: each transformer has a separate microcomputer |
| The Allowed Fluctuation Range for External Power | ±10% |
| Air consumption pressure | 0.6-0.8Mpa 3.4m³/minute |
the edge wire can be cutted by machine in one time
