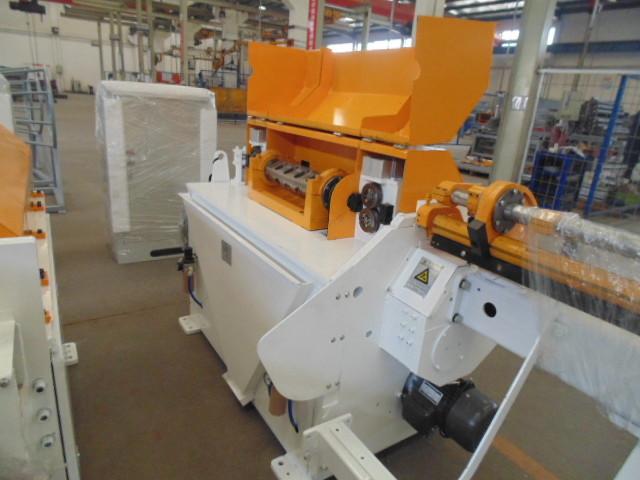

CNC 120m/Min Rebar Straightening And Cutting Machine 4620x500x2230mm
Price:
discuss
MOQ:
1
Delivery Time:
15days
Brand:
FZ
Product Description
CNC For Steel 5-12mm Wire Straightening And Cutting Machine
Technical parameters of GT 10 / 16 steel bar straightening and cutting machine:
Steel bar with diameter of Φ 10 ~ Φ 16 (strength σ s ≤ 400MPa)
The length of straightening and cutting is 800mm ～ 12000mm
Straightening speed high speed gear 130m / min
Medium speed 100 m / min
Low gear 75m / min
Fixed length error ≤± 1mm
Straightness of steel bar after straightening ≤± 2mm / M
Motor power cut-off motor 7.5kW servo motor
Main motor 45 kw
Inverter heavy load vector 45 kw
| NO. | NAME | PARAMETER |
| 1 | Wire diameter | 5.0-12.0mm |
| 2 | Length | 500-2000mm(adjustable) |
| 3 | Length error | ＜±1mm |
| 4 | Speed | 70-120m/min |
| 5 | Straightenss | ＜2mm/m |
| 6 | Material | Q235,Q195,Galvanized wire |
| 7 | Cutting knife material | Alloy |
| 8 | Feed motor power | 4.5KW |
| 9 | Motor power of shuttle | 3KW |
| 10 | Power supply voltage | 380V 3Phas 50Hz |
| 11 | Air pressure | 0.6-0.8mpa |
| 12 | Equipment size | 4620*500*2230 |
| 13 | Color | Gray,Yellow |
