Fixed Length Steel Rod Wire Straightening and Cutting Machine 380V 50HZ

Price Negotiable
Price: Negotiable
MOQ: 1 set
Delivery Time: 30 days
Brand: FZ
Product Description

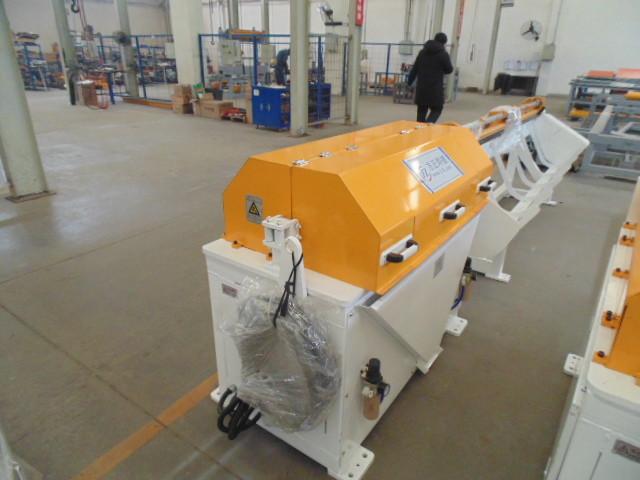

Fixed Length Steel Rod Wire Straightening And Cutting Machine



The operation error will cause the equipment not to run normally or cause the accident.



Please do not approach and touch moving parts, control elements, parts for welding while the machine is running, otherwise it will cause injury.



Please read the manual, repeat the safety, in the operation of the machine program changes and other operations.



Operators should always pay attention to see, listen, smell, ahead of time to find accident signs and equipment hidden trouble. When abnormal phenomenon is found, the power outage should be stopped immediately for inspection and treatment.



No. Name Parameters
1 Wire diameter 3.0-6.0mm
2 Straightening length 500-6000mm
3 Cutting error ±1mm
4 Straightening speed 70-120m/min
5 Straightness 2mm/m
6 Material Cold drawn wire,Galvanized wire
7 Voltage fluctuation range ±10%
8 Voltage 380V 50HZ



Notes to the Steel Wire Straightening And Cutting Machine:


1 . The Steel Wire Straightening And Cutting Machine​ user must do the operation and maintenance in strict accordance with the equipment manual.
2 . Prepare the site for
Steel Wire Straightening And Cutting Machine installation must be according to the requirements
3 . Supply power and gas according to the
Steel Wire Straightening And Cutting Machine​ requirements.
4 . Users are required to provide technical staff to assist in the installation, during installation, users need to install the
Steel Wire Straightening And Cutting Machine provided free of charge auxiliary equipment.
5 . The
Steel Wire Straightening And Cutting Machine​ should be used in the workshop; the work environment will directly affect the performance and service life of the equipment.
