CNC 4-8mm Wire Straightening And Cutting Machine

Price Negotiable
Price: discuss
MOQ: 1
Delivery Time: 25days
Brand: FZ
Product Description

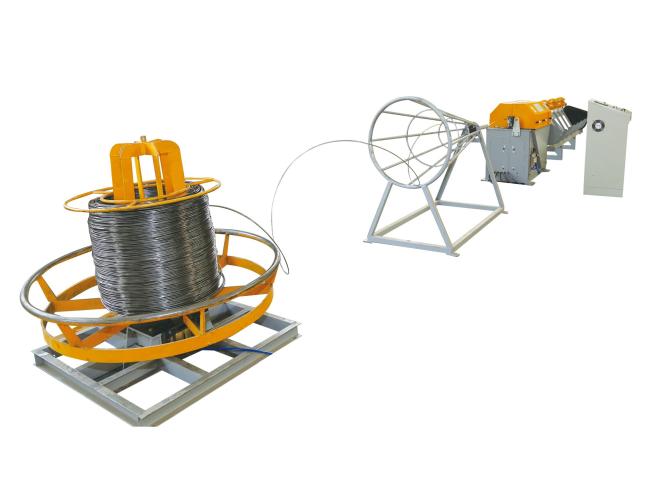

CNC Wire Straightening And Cutting Machine 4-8mm



Features of high efficiency CNC straightening machine:
1. Drive mode: the feeding and straightening are variable frequency brake motors, which ensure the sensitivity of pause, fast stop speed and no damage to the motor.
2. Control: integrated control cabinet and operation, PLC programming control, touch screen operation interface, can memory specifications, making the operation more humanized and adjustment more convenient.
3. The straightening mother is made of alloy. the working speed can show you 80-12-m each minute.After special treatment, it is durable and can make the straight wire scratch small (slight thread scratch) without damaging the surface of the wire,

4.The wire length can be cutting in ±2mm , then make sure you dont need cancel the edge wire in the after working.



 NO. NAME PARAMETER
1 Wire diameter 4.0-8.0mm
2 Length 500-3000mm(adjustable)
3 Length error <±2mm
4 Speed 80-120m/min
5 Straightenss <2mm/m
6 Material Q235,Q195,Galvanized wire
7 Cutting knife material Alloy
8 Feed motor power 4.5KW
9 Motor power of shuttle 3KW
10 Power supply voltage 380V 3Phas  50Hz
11 Air pressure 0.6-0.8mpa
12 Equipment size 4620*500*2230
13 Color Gray,Yellow
