Disassemble Impact Resistant Traffic Management Attenuator

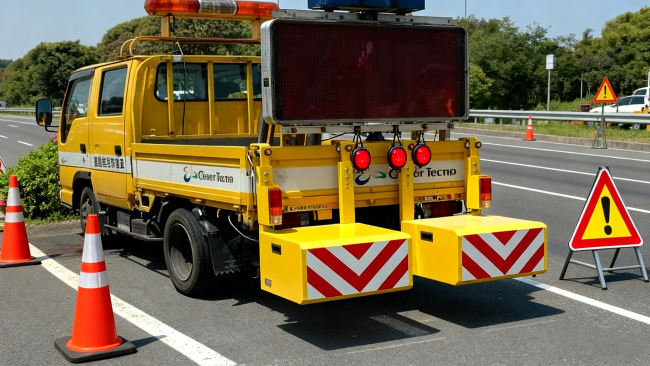

This product is installed in the rear of road maintenance vehicle, sprinkler, tunnel cleaning vehicle, sweeper, mower, etc. The size can be customized according to the vehicle.

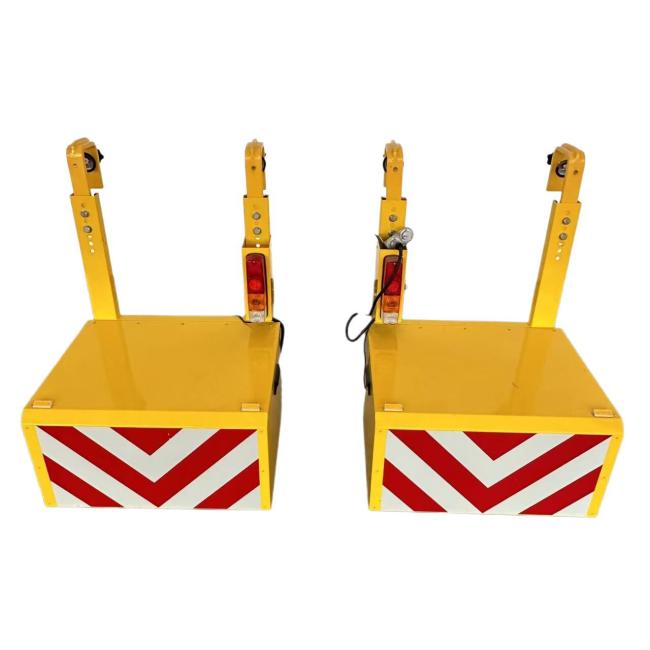

Its appearance is a regular cuboid, two in a set. There are two column-shaped hooks on the top, which are designed to facilitate installation.
Most of the truck mounted attenuator on the market have to adjust the installation method according to the vehicle bottom plate, but ours only needs to be hung on the back door of the truck, and fixed with screws. You can complete the installation easily without professional installers on-site measurement, which saves time and reduces installation costs. The main material is aluminum alloy and built-in the honeycomb shaped energy absorbing material inside, the weight is light. There are recessed grippers on both sides, two people can lift it.
| Item | Specification Description |
|---|---|
| Configuration | 2 units per set, used in combination |
| Installation Method | Hanging type (top hook design) |
| Single Unit Dimensions | 660mm (W) × 650mm (L) × 1055mm (H) |
| Single Unit Weight | 37 kg |
| Main Material | Aluminum plate + aluminum profile structure, electrostatic spray coating |
| Energy Absorption Core | Patented honeycomb aluminum alloy (repairable, high energy absorption) |
| Warning Features | Dual-side LED flashing lights + front red/white reflective film |
| Mobility Design | Equipped with wheels at the bottom and handles on both sides |
| Applicable Vehicles | Municipal work vehicles such as street sweepers, water sprinklers, landscaping vehicles, road maintenance vehicles, etc. |
| Core Functions |
1. High-intensity warning (sound, light, and color combined) 2. Collision energy absorption (prevents "underride" accidents) |
| Optional Services | Customization of dimensions, colors, etc. supported |
-
✅ Patented Energy Absorption Technology: Built-in honeycomb aluminum alloy energy absorption structure (Patent No.: ZL 2006 1 0057817.8) that deforms in a controlled manner during collisions to effectively absorb impact energy.
-
✅ International Safety Certification: The product has passed Japanese road safety tests and complies with professional collision protection standards.
-
⚡ Ready to Use: Top hook design requires no vehicle modifications; a set of two units can be installed in 10 minutes.
