Engineer Vehicle-Mounted Interceptors Absorb The Impact

The utility model relates to a safety protection device for traction behind a construction vehicle.

Shock Asorbing Mechanism

         Berore collision                                                                                       After collision 1(Towing arm A contracte)

After collision 2(shock absorbers B                         After collision 3(shock absorber D contracts while cushioning the

and C contract while cushioning the impact)           impact.At this time the shock absorber for cars hits the truck's

                                                                                                  tyre axle arm and is bent under it.

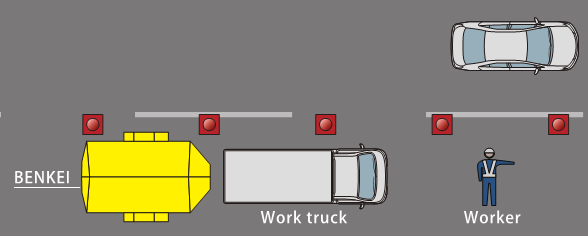

Example of use

Three-directional drawing

3D Skeleton Diagram
