Flashing Warning Effect LED Arrow Board Dynamic Modes
Price:
USD 3,959/unit
MOQ:
100
Delivery Time:
30 work days
Brand:
RMHs
Product Description
Flashing Warning Effect LED Arrow Board Dynamic Modes
This LED warning board is suitable for construction areas, road maintenance zones, and other locations with limited access. The eye-catching appearance with LED strobe lights effectively reminds drivers to pay attention to the road ahead and stop safely. The LED rubber light strip is 3.5m long, easy to retract and store in the light box, making it ideal for special situations. When set on the ground in construction areas, it forms an integrated warning system.
The product is manufactured from high-quality aluminum and plastic materials, ensuring safety, reliability, and durability. The external surface features yellow electrostatic spraying with eye-catching red LED lights, providing an ideal warning effect. Even in haze, rain, snow, and other adverse weather conditions, it maintains excellent visibility. The compact size and lightweight design make it portable and practical.
X-shaped LED Warning Light Box Specifications
| Item | Specification |
|---|---|
| Product Name | X-shaped LED Warning Light Box (with Retractable Light Strip) |
| Model | Cross Line |
| Brand | RMHs |
| LED Color | Red |
| External Color | Yellow / Red |
| Dimensions | 470 * 423 * 130 mm |
| Weight | 7 kg |
| Material | Aluminum, Plastic, Rubber |
| Surface Finish | Spray-plastic anti-rust treatment (yellow electrostatic spraying) |
| Power Supply | DC, AC, Solar |
| Flashing Modes | • Fast: 0.05 sec / cycle • Slow: 0.8 sec / cycle |

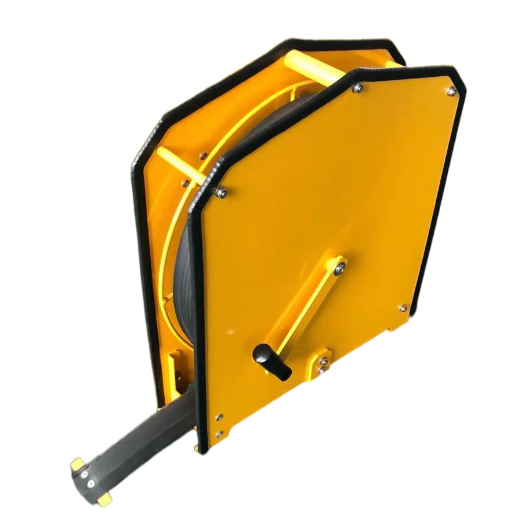

| Retractable Light Strip | 3.5 m in length, fully retractable into the box |
| Control | Independent switches (main light box and light strip controlled separately) |
| Application Scenarios | Construction zones, road maintenance areas, breakdown parking, restricted areas, etc. |
| Main Function | Warning, traffic guidance, hazard zone delineation |

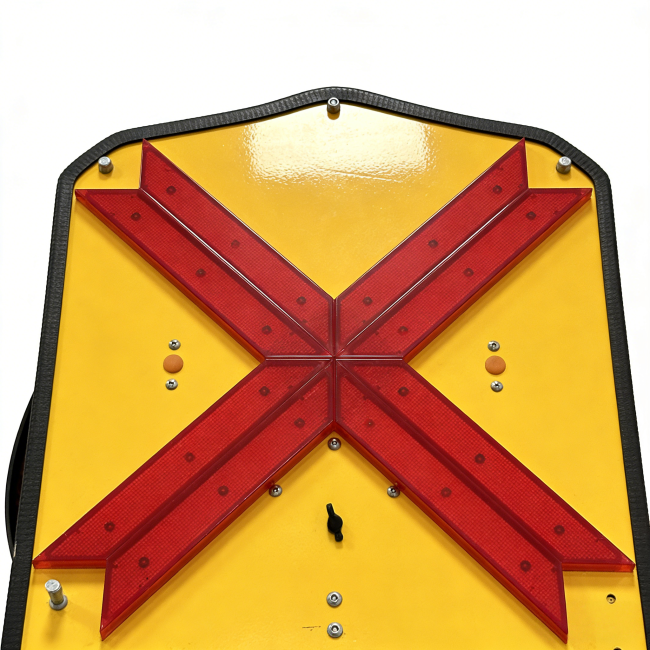

The LED features two dynamic modes, fast and slow, which can be switched to adapt to different lighting conditions (fast mode: 0.05s/cycle, slow mode: 0.8s/cycle).
Key Advantages
- Portable & Practical: Lightweight design for easy vehicle storage – the essential "mobile safety guard" for drivers.
- Space-Saving Design: Innovative 3.5m retractable light strip extends to expand warning range and retracts fully into the box for compact storage.
- Smart Flash Modes: Switch between fast flash (0.05 sec/cycle) and slow flash (0.8 sec/cycle) to suit different urgency levels and scenarios.
- Reliable Material: Made of high-quality aluminum and high-strength plastic – sturdy, impact-resistant, and built to last.
- Outdoor Ready: Spray-plastic anti-rust coating with UV protection – withstands sun, rain, and harsh weather conditions.
- All-Weather Warning: High-brightness LED ensures excellent visibility and warning effect even in fog, rain, snow, or at night.
Advantage Comparison: X-shaped LED Warning Light Box vs. Traditional Warning Products
| Comparison Item | X-shaped LED Warning Light Box | Traditional Triangle Warning Sign / Basic Warning Light |
|---|---|---|
| Warning Range | Main light box + 3.5m retractable light strip, forming a linear warning barrier | Fixed small area, short warning distance |
| Visibility (Night/Bad Weather) | High-brightness LED active light, strong penetration, clearly visible in fog, rain, or haze | Mostly passive reflective, relies on headlights, poor effect in low visibility |
| Storage & Portability | Light strip fully retracts into the box, compact size, easy to store in trunk | Triangle still takes up space when folded; standard light strips require separate storage |
| Flash Modes | Fast / Slow dual modes adjustable for different urgency levels | Mostly single flash mode or no option |
| Power Supply | DC / AC / Solar – three options, flexible for various scenarios | Usually battery-only, limited runtime |
| Durability | Aluminum + plastic, spray-plastic anti-rust coating, impact-resistant, suitable for long-term outdoor use | Mostly all-plastic, prone to aging and damage |
| Application Scenarios | Construction zones, breakdown parking, road maintenance, entry/exit control, etc. | Primarily for temporary vehicle breakdowns |
Frequently Asked Questions
Q1: What makes an LED arrow board have a high-quality flashing warning effect?
High-quality flashing warning effects come from dynamic modes (e.g., fast/slow flashing, sequential arrow patterns) and high-brightness LED chips that remain visible in rain, fog, or at night.
Q2: Why is A 5052 aluminum used for LED arrow board lights?
A 5052 aluminum is lightweight, corrosion-resistant, and strong – making it ideal for outdoor warning products that need to withstand weather and impact.
Q3: What are "dynamic modes" on an LED arrow board?
Dynamic modes refer to changeable light patterns, such as left/right arrow sequences, rapid flashing for emergencies, or slow flashing for regular warning. These modes help guide traffic more effectively.
Q4: How do China's leading LED arrow board factories ensure product quality?
They apply strict quality control at every stage – from material selection (e.g., A 5052 aluminum) to assembly and testing, ensuring reliable performance in tough outdoor conditions.
Q5: Where are high-quality dynamic LED arrow boards typically used?
They are commonly used in construction zones, road maintenance areas, temporary lane closures, and vehicle breakdown scenes to warn and guide approaching drivers.
