Narrow Low Speed Road Portable Vehicle Barricades Aluminum Alloy
Price:
USD 12,964/unit
MOQ:
50 units
Delivery Time:
30
Brand:
RMHs
Product Description
Narrow Low Speed Road Portable Vehicle Barricades Aluminum Alloy
HS-60-MT1 Narrow Roads 20kg Low Speed Road Portable Vehicle Barricades
The MINI Tomarukun is designed for vehicles traveling at low speeds on narrow roads. Compact in size yet effective for stopping, it weighs only 20kg and folds conveniently to fit in a car trunk for easy transport and handling.
Product Specifications
| Brand | RMHs |
| Product Name | Mini Vehicle Stopper / Foldable Mobile Crash Barrier |
| Primary Materials | Aluminum Alloy Profiles, Rubber |
| Surface Finish | Electrostatic Spray Coating |
| Product Color | Yellow / Orange (High-visibility) |
| Product Weight | 20 kg |
| Deployed Dimensions | L 1040 mm × W 664 mm × H 894 mm |
| Folded Dimensions | L 1100 mm × W 664 mm × H 200 mm |
| Structural Features | Foldable design, equipped with auxiliary wheels, three specially designed rubber friction pads on the bottom, includes 2 shock absorption buffers |
| Function | Deployed at work zone perimeters to guide and intercept low-speed vehicles using lever principle to lift front wheels and dissipate kinetic energy through ground friction |
| Impact Performance | Capable of absorbing impact energy from frontal collisions up to 25 degrees. Passed overseas safety tests and holds relevant patents |
| Application Scope | Municipal roads, highway maintenance, utilities, construction sites, and other work zones |
| Compatible Products | Safety arrow signs, customized LED arrow boards (can be mounted on top) |
| Usage Method | Placed at rear of work zone. Can be moved, deployed, and stored by a single person |
Key Advantages
- Lightweight & Efficient - Weighs only 20kg with wheels. Can be easily moved and set up by a single person, saving labor and time
- Easy to Store - Quick-folding design with compact folded size fits in standard car trunk for convenient transport
- Safe & Reliable - Utilizes patented energy-absorbing aluminum, professionally tested to effectively stop low-speed intruding vehicles. Non-flammable aluminum prevents secondary fires
- Highly Visible & Durable - High-visibility yellow/orange color, compatible with optional LED arrow boards. Exterior electrostatic coating provides rust resistance and weatherproofing
- Cost-Effective & Eco-Friendly - Reusable design reduces long-term costs. Main structure made of recyclable aluminum

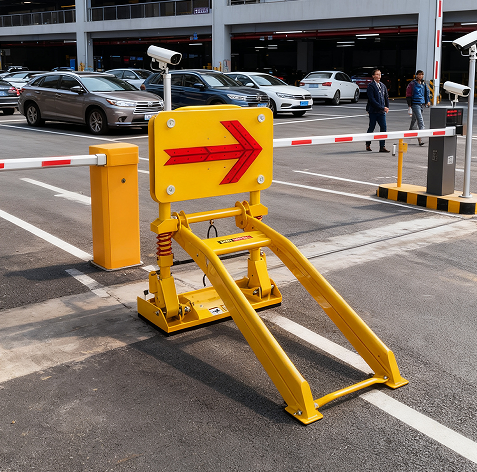

Stopping Principle
When a vehicle collides, the device acts as a lever to lift the vehicle's front wheels. Impact force is directed downward and absorbed through friction by specially designed rubber pads, while two shock absorbers dissipate energy. The vehicle stops within a short distance through controlled energy conversion.
Setup & Deployment
- Placement - Position at the outer perimeter of work zones on approaching traffic side
- Deploy - Unfold from compact folded state to full protective size
- Add Signage - Attach compatible safety arrow sign or LED board for enhanced warning visibility
- Movement & Storage - Single person can move using auxiliary wheels. Fold for transport in car trunk
Product Features & Applications
Compact size with powerful interception capability. Effectively protects workers and drivers in narrow spaces.
With Optional Arrow Board
Model: HS-60-MT1 with enhanced warning visibility

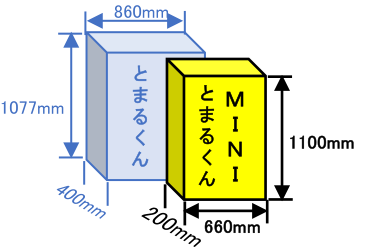

Storage & Transport Features
Fits conveniently in family car trunk
Stable when folded and standing
Equipped with wheels for easy mobility
Why Choose MINI TOMARUKUN
- Protects workers from accidents caused by vehicles straying into construction areas
- Moves and stops in sync with vehicle, minimizing impact on driver
- Reduces vehicle stopping distance effectively
- Lighter and more compact than conventional barriers, easy to carry
Installation Reference
Install at the beginning of construction restricted areas. We recommend installing two units in parallel per location for optimal protection.
Crash Test Results
| Set Speed | Without Mini Tomarukun | With Mini Tomarukun (1 unit) |
|---|---|---|
| 40 km/h | 9.6m | 8.1m |
| 60 km/h | 19.5m | 12.9m |
Test conditions: Dry roads with brakes applied after collision. Test vehicle: Toyota Mark II. Results may vary based on road surface and accident conditions.
Frequently Asked Questions
Q1: What is this product?
A: High-quality, non-combustible mobile vehicle crash barrier for isolation and safety protection in road construction sites and work zones.
Q2: What is its core function?
A: Shock absorption. Uses leverage and friction principles to bring low-speed vehicles to controlled stops, protecting personnel and vehicles.
Q3: What are its dimensions?
A: Approximately L1400mm × W530mm × H230mm when folded. Refer to specifications for deployed dimensions.
Q4: What are its key features?
A: Non-combustible aluminum alloy material, shock absorption capabilities, mobile design with wheels for easy deployment.
Q5: How is quality ensured?
A: Manufactured under strict quality control system, meeting high standards as a leading market product.
Q6: Where is it typically used?
A: Outer perimeter of work sites requiring temporary isolation and crash protection: municipal roads, highway maintenance, construction sites.
Q7: How does it differ from ordinary traffic cones?
A: Provides actual physical crash prevention and energy absorption capabilities, actively stopping intruding vehicles for higher safety levels.
Q8: Can one person operate it?
A: Yes. Lightweight (20kg) with wheels allows easy movement and setup by a single person.
