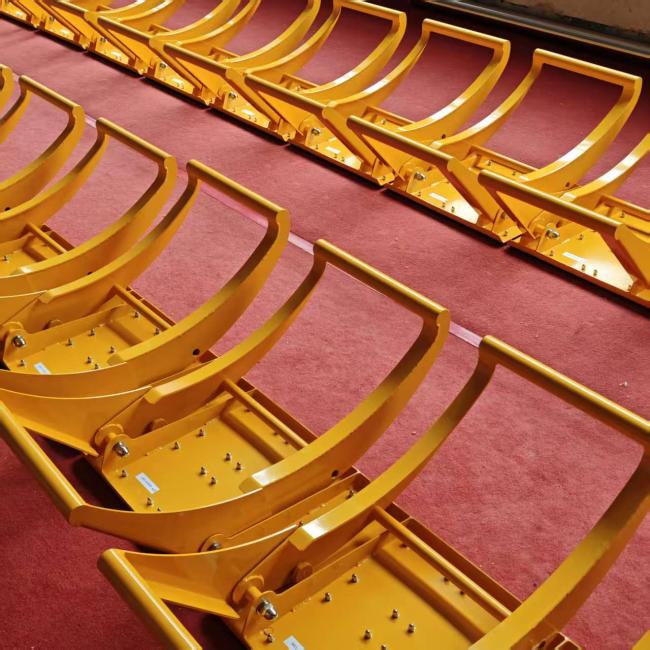

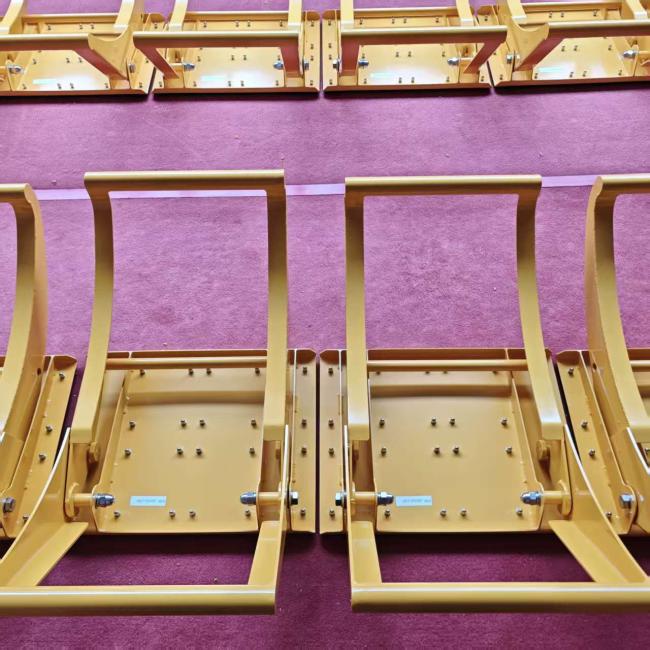

Lightweight Aluminum Portable Vehicle Barricade with Foldable Structure and Electrostatic Spraying for Anti-Collision Safety

Anti-collision guardrails are designed to help stop intruding vehicles non-lethally. It is mainly applied to vehicles traveling at low speed. Simple car stop as a kind of anti-collision guardrail, its biggest advantage is light and movable.

Placed in urban road sections and municipal road isolation areas and other areas, can effectively control the entry of vehicles. When the driving vehicle hit the barricade, it will force the vehicle to stop within a certain distance to protect the lives of construction site personnel.

The main material of the product is aluminum profile, which is environmentally friendly and recyclable. When the vehicle explodes and catches fire due to excessive impact, it can avoid the secondary disaster caused by splash, and protect the driver and passengers and the surrounding people, buildings, etc.

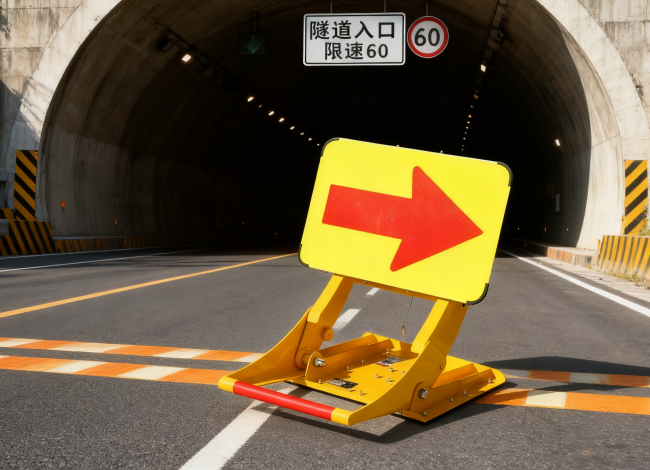

The product can be equipped with our design of the grid cold light sheet arrow signs, the grid arrow double-sided male and female paste fixed on both sides of the handle can be, the operation is very simple.

Product Advantages:

1. Lightweight & Portable – Weighs only 13.4kg, foldable, easy to carry and store.

2. Quick Deployment – Simple structure, ready to use when unfolded.

3. Safe & Effective – Lifts the front wheel upon low-speed impact, stops vehicle by friction, protects construction workers.

4. Durable & Weatherproof – Electrostatic coating resists fading and rusting, suitable for outdoor use.

5. Eco-friendly & Safe – Made of recyclable aluminum, non-flammable, reduces risk of secondary disasters.

6. Anti-slip & Stable – Four rubber pads at the bottom increase ground friction.

7. High Visibility – Yellow/orange-yellow color, can be used with arrow signs for traffic guidance.

When a vehicle hits the device, the front wheel is lifted. Due to the lever principle, the impact force is transmitted to the ground, and the rubber plate at the bottom rubs against the ground, forcing the vehicle to stop.

Test Conditions: Apply the brakes after the collision
Test Vehicle: Toyota Camry 2000cc
Pavement Condition: Dry

The product was tested in Japan, and the data showed that the stopping distance of the vehicle after hitting the device was shortened. Prove that the product can shorten the accident distance.

• Community construction sites, municipal road isolation, temporary protection for low-speed areas

• Lightweight and foldable (13.4kg), easy to carry and store

• Lifts the front wheel upon impact, stops vehicle by friction

• Made of recyclable aluminum, non-flammable, reduces secondary disasters

• Dimensions: 1400 × 530 × 230 mm

• Color: Yellow / Orange-yellow

• Surface: Electrostatic spraying (rust-resistant and weatherproof)

• Grid cold-light film arrow sign (fixed with Velcro, used for warning and traffic guidance)

• Confirm the speed range of the road section (suitable for low-speed areas)

• Determine quantity and whether arrow signs are needed based on site requirements

• Foldable for stacking, space-saving; lightweight design for easy vehicle transport
