4100mm*1250mm*2300mm 120L Low Pressure PU Foaming Machine

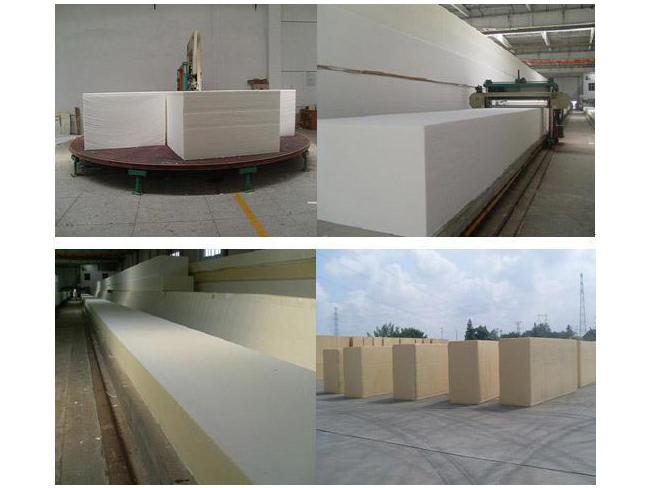

Polyurethane foam has been a favorite material of pattern builders for years. With this 6 ft. x 4 ft. x 2 ft. block, you can cut, carve, sand, and sculpt nearly any shape without the hassle of gluing numerous sheets together or pouring your own block.
Although this foam can be easily CNC machined, it should not be hot-wired. Professional results can be achieved by using a variety of hand tools to saw, carve, plane, and smooth out your shape.
Polyurethane low-pressure foaming machine is widely used in multi-mode continuous production of rigid and semi-rigid polyurethane products, such as: petrochemical equipment, directly buried pipelines, cold storage, water tanks, meters and other thermal insulation and sound insulation equipment craft products.
| No. | Item | Technical parameter |
| 1 | Foam application | Flexible Foam Block Sheet |
| 2 | Raw material viscosity(22℃) |
POL ～3000CPS ISO ～1000MPas |
| 3 | Injection flow rate | 155.8-623.3g/s |
| 4 | Mixing ratio range | 100:28～50 |
| 5 | Mixing head | 2800-5000rpm, forced dynamic mixing |
| 6 | Tank Volume | 120L |
| 7 | Input power | Three-phase five-wire 380V 50HZ |
| 8 | Rated power | About 13KW |
| 9 | Swing arm | Rotatable 90°swing arm, 2.3m (length customizable) |
| 10 | Volume | 4100(L)*1300(W)*2300(H)mm, swing arm included |
| 11 | Color( customizable) | Cream-colored/orange/deep sea blue |
| 12 | Weight | About 1000Kg |
Features of Low Pressure Foam Machine:
1. Accurate measurement: high-precision low-speed gear pump, error ≤0.5%.
2. Uniform mixing: Multi-tooth high-shear mixing head is used, with reliable performance.
3. Pouring head: special mechanical seal is used to prevent air leakage and material pouring.
4. The material temperature is stable: the material tank adopts its own heating temperature control system, and the temperature control is determined, and the error is ≤2℃
5. The whole machine adopts 7-inch touch screen and PLC module control, which can be poured regularly and quantitatively and can be automatically cleaned by air flushing.
Yongjia Polyurethane Co., Ltd. is a professional machinery manufacturer in PU industry combined with design, development, production. Founded in 2013, the construction area of over 10,000 square meters, is the China forefront polyurethane technology company. At present our company's products range covers:high pressure pouring machine, low pressure foaming machine, PU spraying foam machine, PU elastomer casting machine, also we customize to make production line according to clients requirement,like in flexible foam system we make the lines: PU shoe /sole/insole production line(Egypt),anti-fatigue mat production line(India),memory pillow production line(Iran),Albania,elastic ball production line(Mexico),car seat and cushion production line(Morocco),PU slow rebound ear plugs line(India);rigid foam system we make the line:PU decorative molding crown cornice line(Saudi Arab), float trowel making line(Saudi Arab, Pakistan), cold storage panel production line(Uzbekistan),sandwich panel production line(Iraq).Elastomer line:forklift wheel casting line(lran);coal sieve screen select line(Russia).
