Hydraulic Driven 380V 50HZ PU Foam Spray Machine
| SPECIFICATIONS FOR JYYJ-H600 PU Spray Machine | ||
| Parameter | Raw material | polyurea polyurethane |
| Features |
1. Can be used both for spraying and casting with higher production efficiency 2. Hydraulic driven is more stable |
|
| Power source | 1- phase 380V 50HZ | |
| Heating power | 22KW | |
| Driven mode | pneumatic | |
| Air source | 0.5-0.8 MPa ≥0.5m³/min | |
| Raw output | 2-12 kg/min | |
| Maximum output pressure | 24MPA | |
| Poly and ISO material output ratio | 1:1 | |
| Spare parts | Spray gun | 1 Set |
| Heating hose | 15-120 meters | |
| Spray gun connector | 2 m | |
| Accessories box | 1 | |
| Instruction book | 1 | |
| Gift | Protective suit | 1 set |
| Goggle | 1 set | |
| Gloves | 1 set | |
| Mask | 1 set | |
| Earplug | 1 box | |
Our Polyurea Coating Machine can be widely used in a variety of construction environments and a variety of two-component materials,polyurethane water base system, polyurethane 141b system, polyurethane 245fa system, closed cell and open cell foaming polyurethane material application industries: building waterproofing, anticorrosion, toy landscape, stadium water park, railway Automotive, marine, mining, petroleum, electrical and food industries.
Main Features of Polyurethane PU Spray Foam Machine:
1. Equipped with air cooling system to reduced oil temperature, hence offering protection for the motor and pump and save oil.
2. Hydraulic station works with booster pump, guaranteeing pressure stability for A and B material
3. The main frame is made from welded seamless steel tube with plastic-spray so it is more corrosion resistant and can bear with higher pressure.
4. Equipped with emergency switch system, help operator deal with emergencies rapidly;
5. Reliable & powerful 220V heating system enables rapid warming of raw materials to the best state, making sure it performs well in cold condition;
6. Humanized design with equipment operation panel, super easy to get the hang of it;
7. Feeding pump adopts big change ratio method, it can easily feed raw materials high viscosity even in winter.
8. The latest spraying gun has great features like small volume, light weight, low failure rate, etc;

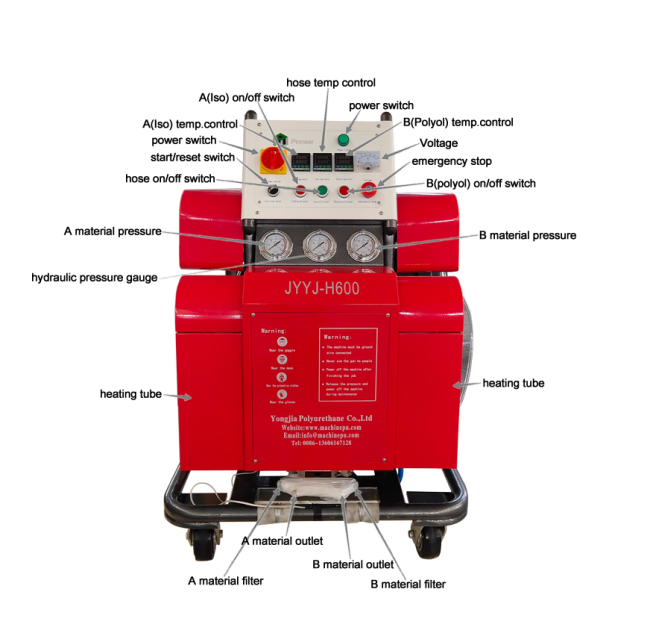

Spray Foam Machine Detials
Pre-Sales Service
* Exclusive customer service, providing 24 hours' Inquiry and consulting support.
* Professional team provides the highest quality product solutions including project calculation, construction consultation and so on.
* Factory tour accompanied by explanation.
After-Sales Service
* One year warranty, machine quality problems, free replacement of accessories.
* Freely modify the machine voltage according to customer requirements.
* Training how to install the machine, training how to use the machine.
* Engineers available to service machinery overseas.
| Packaging | ||
| Size | 850(L) * 1000 (W) * 1400 (D) | |
| Weight | 340 KG | |
|
Packaging Details
|
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request. | |
