25T20M stiff boom pedestal crane for ship on deck or offshore cargos goods
25T20M stiff boom pedestal crane for ship on deck or offshore cargos goods
Product Description:
Marine environments require equipment of the highest quality ensuring reliable and safe operation.Every single component and crane part is selected and designed for long life. Just as long term technical solutions without exceptions are applied.In general, design, components, material, surface treatment and salt test provide a strong barrier against corrosion.OUCO has a wide range off fix boom marine cranes. All models can be customized according to your special requirements and wishes.All cranes are designed and built from scratch for marine use and successfully applied under the most critical conditions.OUCO stiff boom cranes are suitable equipped on the deck for bulk cargo ships or offshore with enough free space. The crane installed with lifting winches.The crane can’t extend and folded. But for its simple structure, it’s price and maintenance cost is the lowest.Stiff bow free booms with the dexterity for accurate, safe, and efficient material handling;Low price and maintenance cost. Application in Luxury Yacht, Oceanographic, Work boat, Oilfield, Coast Guard or Military industriesects.
Features and Benefits:
Accurate positioning
Prolonged exercise at maximum load
Safe and reliable design
Precision components are in the crane shell, fully enclosed and protected to adapt to the marine environment
Horizontal amplitude, smooth operation
Specification
| No. | Item | Specification |
|
CRANE |
SWL | 25T |
| Working condition |
HEEL≦5° TRIM ≦2° |
|
| Max Working radius | 20m | |
| Min Working radius | 4.5m | |
| Hoist speed | ~15m/min(20ton) ~30m/min(empty load) | |
| Hook travel | 45m | |
| Slewing Speed | 0~0.5r/min | |
| Slewing Angle | ~360° all free | |
| Luffing time | 70s | |
| Luffing angle | 0~80° | |
| Design temperature | -10℃~40℃ | |
| Self-Weight Of Crane | ~39000 kg | |
| Clarification | As require | |
| Painting Standard | C5M |
General Arrangement

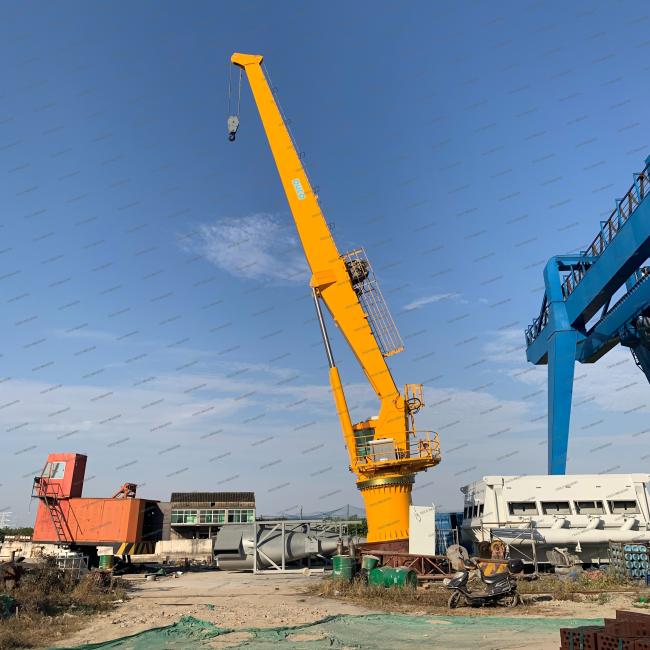

Product Pictures
Certification
Our Company
FAQ
1. Can this type work in hazardous environment?
Sure! We can customize for you, acid proof or explosion proof, no problem for that.
2. Can you provide the serious lifting tools?
Sure, we can provide any lift tools such as lift sling belt, lift clamp, grab, magnet or other specials as your requirement!
3. How can we install the crane?
Our senior engineer can be your side to do the installation guide service and training. Moreover, our best sales can visit your country.
4. Safety device
Overload limiter, Limit Switch (lifting and traveling), Interlock protection device.
