Modular Outdoor LED Flood Lights 10w 20w 30w 50w 220v Aluminum Waterproof Smd
Brand New Modular Outdoor Led Flood Light 10w 20w 30w 50w 100w 220v Aluminum OEM ODM Ip65 Waterproof Smd
Outdoor Led Flood Light Description:
1. Using high brightness 3030 SMD chip which achieves 80-100lm/w;
2. Ultra-slim sleek design, sylish and classic;
3. Unique construction design with full beam angle (270°);
4. No spot, no black area, long life span and less brightness decay;
5. Meanwell driver, full voltage,can be applied in various evironment, Quality assurace,Long life-span;
6. Wide voltage AC85-265V,High efficiency constant current drives, Efficiency of power supply is more than 90%;
7. It can be made into red,blue, green light;
8. No magnetic disturbance influence and CE and RoHS standard compliant;
9. No UV and near-IR radiation in the light beam;
10. 3-5 yearss warranty, Life-time maintainence at cost price, IP65 wateproof.
Outdoor Led Flood Light Specification:
| Product Name | Brand New Modular Outdoor Led Flood Light | |||||||
| Product Model | EK02-10W | EK02-20W | EK02-30W | EK02-50W | EK02-100W | EK02-150W | EK02-200W | EK02-300W |
| Lumen/LED Type | 800LM | 1600LM | 2400LM | 4000LM | 8000LM | 13500LM | 18000LM | 27000LM |
| CRI | Ra>80 | |||||||
| Beam angle | 90° | |||||||
| IP Class | IP65 | |||||||
| Color Temperature | 2700K-6500K | |||||||
| Housing Color | Black/White/ Grey | |||||||
| Housing Material | Aluminum | |||||||
| Working Temp | -20°C~+50°C | |||||||
| Storage Temp | -20°C~+50°C | |||||||
| PF | >0.9 | |||||||
| Warranty | 3years | |||||||
| For more informaton, please click | CONTACT US > |

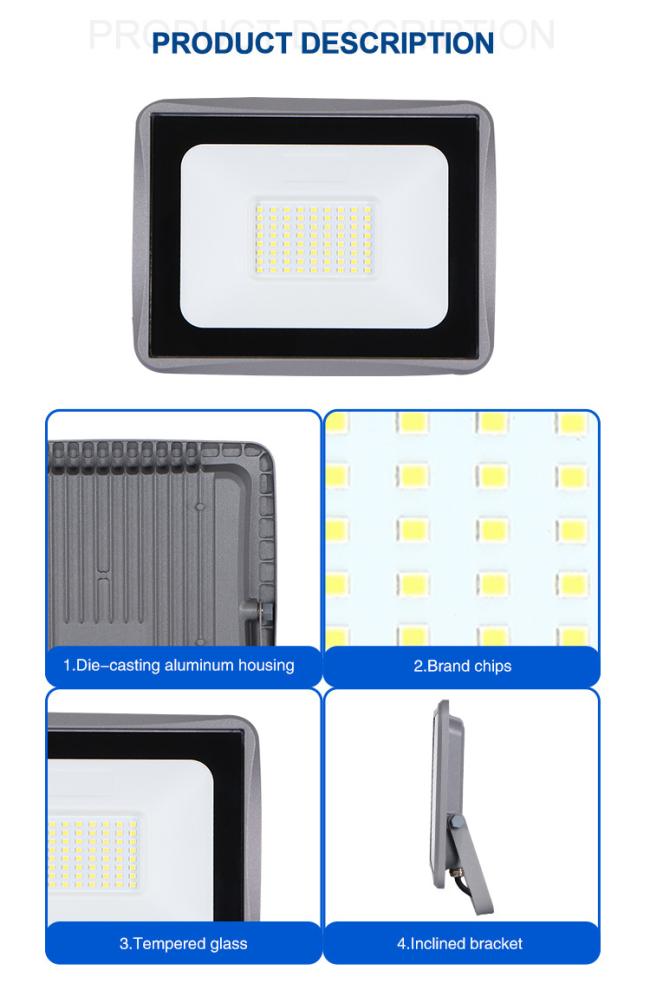

Outdoor Led Flood Light Features

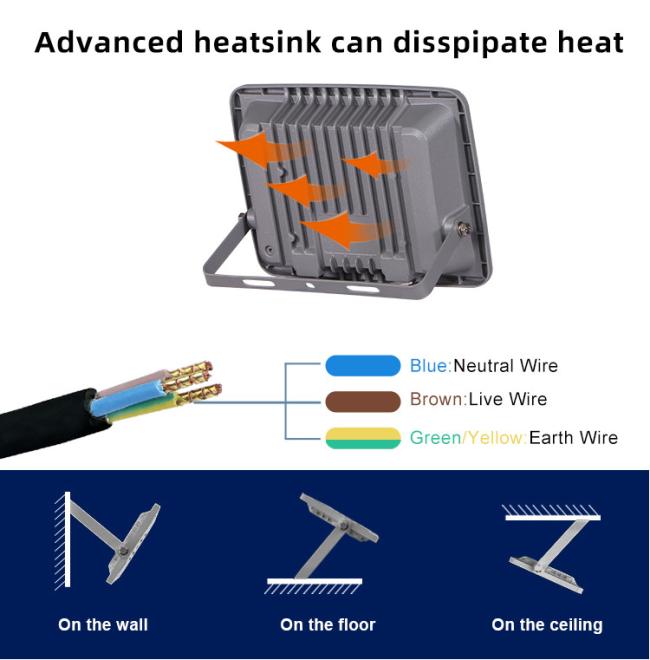

1. Pure aluminum structure ensure excellent heat dissipation. PC lens, high light transmittance, effective anti-dust.
2. Unique reflector can improve lumency.
3. High quality SMD chip, high brightness, low light decay, longer service time.
4. Double waterproof design, thicker water-proof rubber ring to insure better effect. Waterproof IP65 Outdoor.
5. Well-known brand driver, not dimmable / dimmable optional.
| Model NO. | Power | Size:LxWxH(mm) | Ra | Luminous Flux |
| KCD EK02-10W | 10W | 75*81*21.5mm | >80 | 80-100lm/w |
| KCD EK02-20W | 30W | 103*99*23.5mm | >80 | 80-100lm/w |
| KCD EK02-30W | 10W | 125*119*25mm | >80 | 80-100lm/w |
| KCD EK02-50W | 50W | 165*160*35mm | >80 | 80-100lm/w |
| KCD EK02-100W | 100W | 215*198*38.5mm | >80 | 80-100lm/w |
| KCD EK02-150W | 150W | 280*253*41mm | >80 | 80-100lm/w |
| KCD EK02-200W | 200W | 350*318*43mm | >80 | 80-100lm/w |
| KCD EK02-300W | 300W | 408*356.4*47mm | >80 | 80-100lm/w |
Outdoor Led Flood Light Applications:
Exterior Building Lighting, Canopy Lighting, Warehouse Lighting, Construction Lighting, Highway and Road-side lighting, Gymnasium, Parking lot illumination, Sign board, Advertisement board, Shopping Plaza, Athletic field, etc.
| For more informaton, please click | CONTACT US > |
