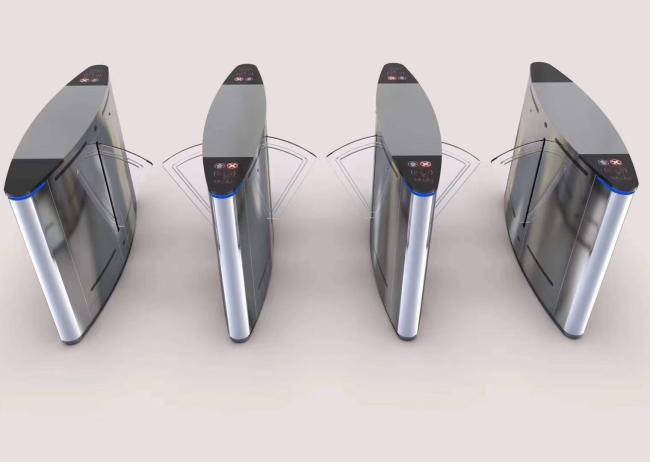

Direct Drive SUS304 SS Weelchair Lane Retractable Barrier Gate

Introduction:

SUS304 SS Weelchair Lane Retractable Barrier Gate is designed to control Disabled pedestrians entering or exiting restricted areas, usually used of high pedestrian traffic flow in both directions.
The body is made from brushed stainless steel which creates a seamless and elegant access point to blend into most indoor environment. The lane can be widely to 850mm with two wings. Besides, it can be integrated with any kind of access controller system (e.g.: RFID device, Push button, Fingerprint and Biometric device).
In case of emergency, the Retractable Barrier Gate arm will open automatically to allow free passage.
Retractable Barrier Gate are suit for elegant and luxury entrance solutions.

Features:

1) Material: SS304,thickness is no less than 1.5mm

2) Manufacturing Technique: CNC laser cutting

3) Barrier Material: Acrylic glass, SS304 ,Soft rubber and so on

4) Gate Opening and Closing time: ≤ 0.4S

5) Passing Speed: Normally open-50persons/min; Normally closed-50persons/min

6) Communication Connection: RS485 Communication

7) Power: AC220C±10V,50HZ

8) Motor: DC Brushless Motor, 140W/24V

9) Communication Distance: ≤1200M

10) Input Connection: +12V Level Signal or Pulse Wide>100ms DC12V pulse, Current>10Ma

11) Infrared Sensors: 9 or 10 Pairs

12) Relative Humidity: <95%, No Densation

13) Operating Temperature: -15°C-60°C

14) Working environment: indoor and outdoor(added the rain-shed)

15) Color: SSB(US32D)-Stainless Steel Brushed / Powder Coating(Optional), or other Color you like

16) Protection Grade: IP54

Specification:

Product application:

1.Flap gate are compact and cost-effective entrance solutions.

2.The body is made of brushed stainless steel which is robust, rigid, anti-rust and durable.

3.Flap gate is ideal for indoor and outdoor settings.

4.It can be integrated with any kind of access controller system (e.g.: RFID device, Push button, Fingerprint and Biometric device).

5.In case of emergency, the Flap gate will open when power off.

6.It is suitable for all kinds of places

FAQ:

1.Can machines be used outside?

With waterproof function, could be used outside

2.What is the warranty for the machine?

Whithin two years, if any problems, we will offer the accessories(but you pay the freight cost)

3.When will you make the delivery?

Regular products:(3-5 days)

4.How does your factory control the quality?

Quality controlling from the beginning to the ending.

5.What is your MOQ?

Any quantity is acceptable.

6.payment term?

30% by T/T, 70% by T/T before delivery.
