Outdoor Multi Core 12 Fiber 1m SC Fiber Optic Pigtails

Price Negotiable

Price: Negotiation

MOQ: 800pcs

Delivery Time: Within 5-7 working days to delivery

Brand: Geehe (OEM Service)

Product Description

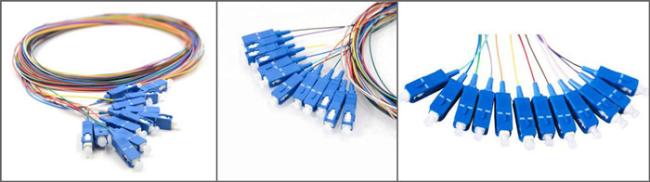

Outdoor 12 Fiber 1 Meter SC Connector Multi-core Fiber Optic Pigtails

Basic Information:

The pigtail is divided into tail multimode fiber and single-mode fiber.

Single-mode pigtail is yellow, there are two kinds of wavelength, 1310Nm and 1550Nm, transmission distance 10km, and 40km respectively.

SC /APC pigtail single-mode supply offers a wide variety of connector options, jacket colors, and diameter as well as different flammability rating,

All of our fiber optic pigtails are tested to ensure quality and performance that meet the industry standards, and the test results for each pigtail are included with your purchase.

Features And Benefits of SC Pigtails

Multimode and Singlemode fibers
Singlemode, 62.5, OM3, OM4 fiber available in riser or plenum
Cable Diameter-900um, 2mm, 3mm. We can manufacture to fit the customer’s needs
100% factory transmission tested per TIA/EIA-568-C.3
Suitable for fusion or mechanical splicing
Fiber Instrument Sales for custom fan-out lengths, specifications, and pricing.
Safe package makes sure sound shipment

Applications of SC/APC Single Mode Pigtails:

CATV, Video, Active Device Termination
Premise Installations, Telecommunication Networks
Local Area Networks (LANs), Data processing networks
Wide Area Networks (WANs), Industrial, medical & military

Specification &Technology Parameters:

Item	SM (Single-Mode)			MM (Multimode)
Fiber Cable Type	G625D/G655/G6571A/G657A2			OM1	OM2/OM3/OM4
Fiber Diameter (um)	9/125			62.5/125	50/125
IL(dB)	≤0.3			≤0.1
Cable Type	Simplex, Duplex, Fan-Out
Connector Type	LC, SC, FC, ST, MU, MPO, MTRJ, D4, DIN, SMA, FDDI, ESCON etc.
Cable OD (um)	0.9/1.6/1.8/2.0/2.4/2.8/3.0
End-face Type	PC	UPC	APC	UPC	UPC
Retun Loss(dB)	>45	>50	>60	/
Insert-pull Test (dB)	<0.2		<0.3	<0.15
Interchangeability (dB)	<0.1		<0.15	<0.1
Mating Times	>1000
Anti-tensile Force (N)	>70
Temperature Range (℃)	-40~+80

12 Fiber Pigtails Specification:

Parameter		Unit	Index
End-Face Type			PC	UPC	APC
IL		dB	SM: ≤0.3； MM ≤0.1
Repeatability		dB	≤0.1
Interchangeability		dB	≤0.2
RL	SM	dB	≥45	≥50	≥60
	MM	dB	≥36(Exclusive APC Connector )
Mating Times			＞1000
Operating Temperature		℃	-40~ +80

SC Ordering Information:

OFC	-X	-XX	-XX	-XX	-XX	-XX
	S: Simplex D: Duplex	SA:SC/APC SC:SC/UPC SP:SC/PC	SA:LC/APC SC:LC/UPC SP:LC/PC	09:0.9mm 20:2.0mm 30:3.0mm	0:G652D 1:G657A 2:50/125 3:62.5/125 4:others	0.5:0.5m 1.0:1.5m 10:10.0m
	Fiber Mode	Connector Type	Connector Type	Cable Diameter	Fiber Type	Fiber Length
