IP65 Outdoor Telecom Cabinet , Waterproof Outdoor BTS Cabinet
30U IP65 IP55 Telecom Outdoor Cabinets Telecommunication Enclosures for BTS
| Protect name | 30U 19'' Outdoor Telecom Cabinet |
| External dimension | H*W*D 1650*750*750mm,with 150mm height plinth |
| Internal dimension | H*W*D 1400*650*650mm |
| Material | Double wall galvanized steel,thickness of outer plate and inner plate is 1.0mm.with 50mm EPS or PU heat insulation between the double wall. |
| Surface Finish | PANTONE 428C |
| Ingress Protection | IP55 /IP65 |
| Security design | Embedded door, embedded hinges |
| Door | One front door,with door stopper |
| Cable entry method | Cable entries from the bottom of the cabinet |
| Grounding protection | Grounding cooper bar, with enough screws for wiring connection terminals. |
| Structure | Assembled sandwich structure or welded structure. |
The cabinet OEC1650-2 is made of galvanized steel and color coated steel.It's price is much more cheaper than all galvanized steel material.
The two side panels and rear panel are made of color coated steel,the plinth and roof and 19'' inch rack and base are all made of galvanized steel.We can supply different telecommunication solutions for customer's different telecom projects.
It's our standard dimension,we also support customize size of the cabinets according to customer's specific requirements.
Cabinet cooling:
If the ambinet temperature is not high,and the heat generated by the equipments inside the cabinet is not large,we can choose high speed emergency fan as cabinet cooling,venting holes are on the bottom of the cabinet,the air flows vertical and let cool air in,heat air out of the cabinet.
The fan is connected with temperature sensor,it will start working when the temperature inside at 35 ℃.

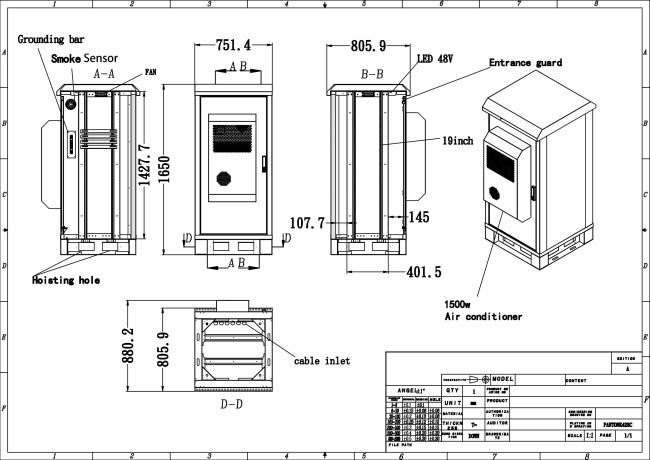

Cabinet drawing:

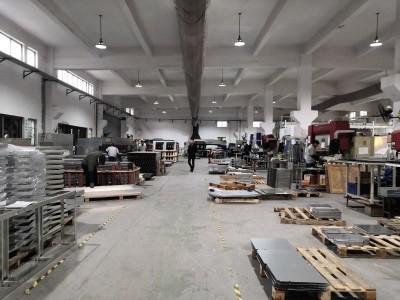

More about us:
