1500w Power Solution Integrated Metal Enclosure Outdoor Integrated Cabinet Ip65 Ip55

1.Technical Data Sheet

1.1 Structure
Internal Dimension(H*W*D) :Standard 1427 *650*650mm or any customized size
External Dimension(H*W*D) : Standard 1650*750*750mm or any customized size

1.2 Material:Materials are Galvanized steel with 45mm thickness EPS insulation

1.3 Layout : one compartment equipment cabinet+one compartment

1.4 Door : one door with special lock for outdoor cabinet (support padlock)

1.5 Cable enter method :Bottom φ50*5 or customer requirement.

1.6 Temperature Control Cooling :1500w 220VAC air conditioner

1.7 way of communication:RS485

1.8 Power supply system

1.9 working temperature:-40℃~+55℃

2. Available dimension and material

Width available:600mm,650mm,700mm,750mm,800mm,850mm,900mm or any customized size
Depth available:600mm,650mm,700mm,750mm,800mm,850mm,900mm,950mm,1000mm or any customized size
Internal capacity: 18U,22U ,27U,30U,32U,35U,37U,40U,42U etc (based on customers requirements)

Material available: Galvanized iron/Aluminum/Stainless steel/Cold-rolled steel etc(based on customers requirements)

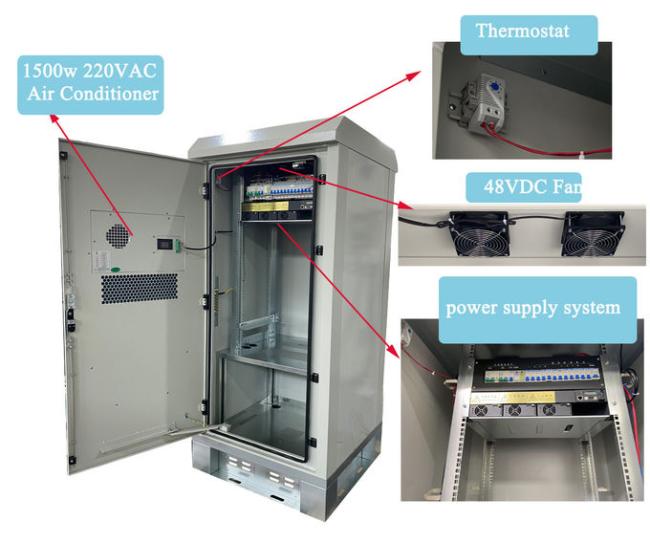

3. Detailed Picture

4. Cooing system

1500W 220VAC air conditioner installed on the front door

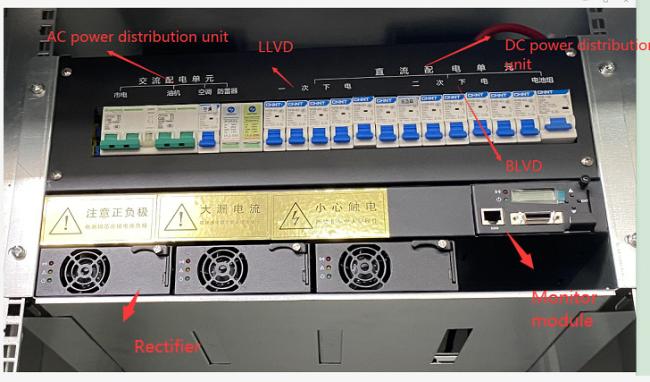

5. Power supply system
