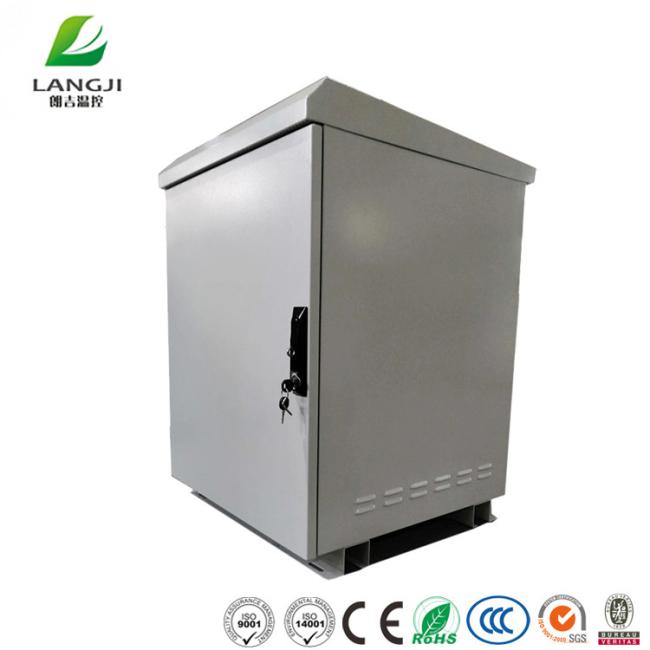

Metal Weatherproof 14U Outdoor Pole Mount Enclosure
Price:
USD 100~250/unit
MOQ:
1 pc
Delivery Time:
15~25 working days
Brand:
Langji
Product Description
IP55 IP65 Wall Mounting Pole Mounting Outdoor Metal Cabinet
Product Description
- Strong rack inside to be equipped with telecom equipments, power source, battery, temperature control device and other
attachments.
- Digital display the temperature-setting, temperature alarm, temperature parameters inside and outside, and all kinds of other alarm information, etc.
- Cabinet made of low thermal conductivity and fireproof material for heat insulation fireproof.
- Can be installed in any difficult places include the top of mountain and the roof of buildings.
- Wind-proof, sand-proof, rain-proof, sun-proof and anti-theft, protection level IP65.
-Supportcustom-made.
attachments.
- Digital display the temperature-setting, temperature alarm, temperature parameters inside and outside, and all kinds of other alarm information, etc.
- Cabinet made of low thermal conductivity and fireproof material for heat insulation fireproof.
- Can be installed in any difficult places include the top of mountain and the roof of buildings.
- Wind-proof, sand-proof, rain-proof, sun-proof and anti-theft, protection level IP65.
-Supportcustom-made.
Technical Data Sheet
Internal Dimension(H*W*D) : 14U *650*650mm or any customized size
External Dimension(H*W*D) :800*600*600mm or any customized size
Internal capacity: 9U,12U,15U,18U,22U ,27U,30U,32U,35U,37U,40U,42U etc (based on customers requirements)
Layout :1 compartment for and equipment cabinet
Door :With one front door, with special lock for outdoor cabinet (support padlock)
Hinge :Embedded
Material: galvanized steel
Material available: Galvanized iron/Aluminum/Stainless steel/Cold-rolled steel etc(based on customers requirements)
Structure :Welding,1.5mm thickness galvanized wall
Cable enter method :Bottom φ50*5 or customer requirement.
Color :RAL7035/Pantone428C, powder coating finish
Equipment Installation Method:19" rack
Ingress Protection: IP65
Coolling system:48vdcHigh Speed fans
Temperature controller/ Thermostat:Can be automatically adjusted according to cabinet temperature
External Dimension(H*W*D) :800*600*600mm or any customized size
Internal capacity: 9U,12U,15U,18U,22U ,27U,30U,32U,35U,37U,40U,42U etc (based on customers requirements)
Layout :1 compartment for and equipment cabinet
Door :With one front door, with special lock for outdoor cabinet (support padlock)
Hinge :Embedded
Material: galvanized steel
Material available: Galvanized iron/Aluminum/Stainless steel/Cold-rolled steel etc(based on customers requirements)
Structure :Welding,1.5mm thickness galvanized wall
Cable enter method :Bottom φ50*5 or customer requirement.
Color :RAL7035/Pantone428C, powder coating finish
Equipment Installation Method:19" rack
Ingress Protection: IP65
Coolling system:48vdcHigh Speed fans
Temperature controller/ Thermostat:Can be automatically adjusted according to cabinet temperature
|
Accessory List(options)
|
||
| No. | Item | Specifications |
| 1 | Fan | DC48V, START WORK AT 35°C |
| 2 | Power Distribution (PDU) | GRADE B LIGHTNING PROOF AC INPUT: 63A/2P *1; AC OUTPUT: 16A/1P*4; DC OUTPUT: 16A/1P*4 or customer requirement |
| 3 | Environment Monitoring Unit | 48VDCCommunication port: RS485, TCP/IP, SNMP optional |
| 4 | Door Sensor | Monitor door open status inside cabinet and provide real time alarm. |
| 5 | Water Sensor | Monitor water status inside cabinet and provide real time alarm. |
| 6 | Tilt & Shock Sensor | Monitor shock status inside cabinet and provide real time alarm. |
| 7 | Temperature & Humidity Sensor | Monitor temperature and humidity inside cabinet and provide real time alarm. |
| 8 | Smoke Sensor | Monitor smoke status inside cabinet and provide real time alarm. |
| 9 | Ground Bar | Resistance value: 0.021Ω |
| 10 | Built-in power supply | 150A/200A/300A |
| 11 | Packaging | Wooden case/Export pallet |
| Cooling System(Optional) | ||
| No. | Item | Specifications |
| 1 | Air Conditioner | AC220V/DC48V, Cooling capacity 300w, 400w, 600w, 800w, 1000w, 1200w, 1500w, 2000w, 2500w, 3000w, 3500w, 4000w; AC380V,5000w |
| 2 | Heat Exchanger | AC220V/DC48V, Heat transfer 80w/k, 100w/k, 120w/k, 150w/k, 200w/k |
| 3 | Thermoelectric Cooler (TEC) | DC48V, Cooling capacity 200w, 300w |
| 4 | Fan | DC48V |
Company Profile
Langji Technology Co., Ltd. was founded in 2009, it is a high-tech enterprise with R&D, manufacturing and sales department. It is ocated at the coast of Taihu Lake Suzhou city, the registered capital is 50 million RMB. The whole factory covers 5000 square meters and employs about 200 people with an annual sale of nearly 100 million RMB.
Langji company provides full range of temperature control products and solutions for
- Telecommunication
- Data Center
- Base station
- Solar based installations
- Wireless cell sides & switches
- Industry Automation
- Energy Storage
Suzhou Langji Technology Co., Ltd. is always taking the concept of "well-grounded, ambitious and make all efforts to create national brand of precision air conditioner", holding 3 point management strategy that includes technique, force, and service,tracking the market trend and focusing on the development of products. Based on strong technical force, and advanced design ideas,Langji has promoted many models of precision air condition, heat exchanger, and energy-saving products for base station or equipment room, outdoor communication equipment cabinet and thermostatical battery cabinet etc. to meet the diversified needs of the domestic and overseas customers.
Suzhou Langji Technology Co., Ltd. manages the company and production scientifically according to ISO9001 and ISO14001 international management system. The products are certified by CE and CCC, with stable and reliable quality, Langji products are sold in many countries and regions including China, India, Russia, the Middle East, South-east Asia, South America, Africa, Europe and the USA.
