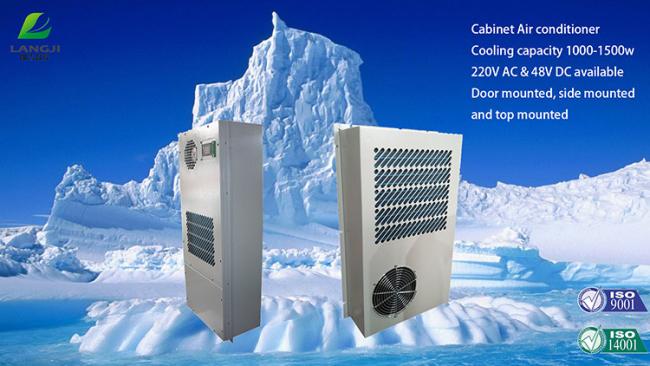

Industrial Door Mounted 1500W Cabinet Air Conditioner
1500W Industrial Door Mounted Cabinet AC Air Conditioner
Product Feature:
1. Good design,sable structure and easy maintenance.
2. Widely used for outdoor telecommunction cabinets,battery cabinets,electric cabinets and industry cabinets etc.
3. Door mounted,side mounted and top mounted available,cooling capacity ranges from 300W-5000W.
4. The protective level is IP55,can protect cabinet from moisture,dust and water.It can be installed indoor and outdoor,
run at high ambient temperature of 55ºC.
5. Digital temperature controller and high precision of temperature control.
6. The main components have CE certifications,which can meet EU RoHS requirements.
Product Parameters:
| Model | SAD110-2 | SAD115-2 |
| Cooling capacity(L35/L35) | 1000W (3500BTU ) | 1500W (5000 BTU ) |
| Voltage | 220VAC±15% 50/60Hz | 220VAC±15% 50/60Hz |
| Rated Power(L35/L35) | 426W | 605W |
| Rated Current | 1.93A | 2.75A |
| Circuit max pressure | 26bar | 26bar |
| Refrigerant | R134A | R134A |
| Heating Power(Optional) | 300W/400W/500W | 300W/400W/500W |
| Working temperature | -40~55ºC | -40~55ºC |
| Noise | 60dB | 63dB |
| IP Grade | IP55 | IP55 |
| Dimension(W×D×H) | 482×188×781mm | 482×188×781mm |
Product Drawings:
