19" rack floor standing outdoor battery storage cabinet telecom power cabinet

1. Introduction

Outdoor telecom power cabinet refers to a cabinet made of metal material, directly under the influence of the weather, and does not allow unauthorized operators to access. Base station equipment, power supply, battery, temperature control equipment, transmission equipment and other ancillary equipment can be installed in the cabinet, which can provide reliable mechanical and environmental protection for the normal operation of internal equipments. Outdoor telecom power cabinet is designed to house a varity of batteries and equipments ,they provide protection from vandalism, dust, rain,snow and dripping water.The material can be made from galvanized steel , aluminum or stainless steel according to different demand.Air conditioner (options:Heatexchanger/Fan) is installed on cabinet for keeping a stable temperature inside cabinet so as to increse service life and stability of battery and equipment.It provides a secure thermally managed environment for backup battery sytems for telecommunications and cable applications.

2. Data Sheet

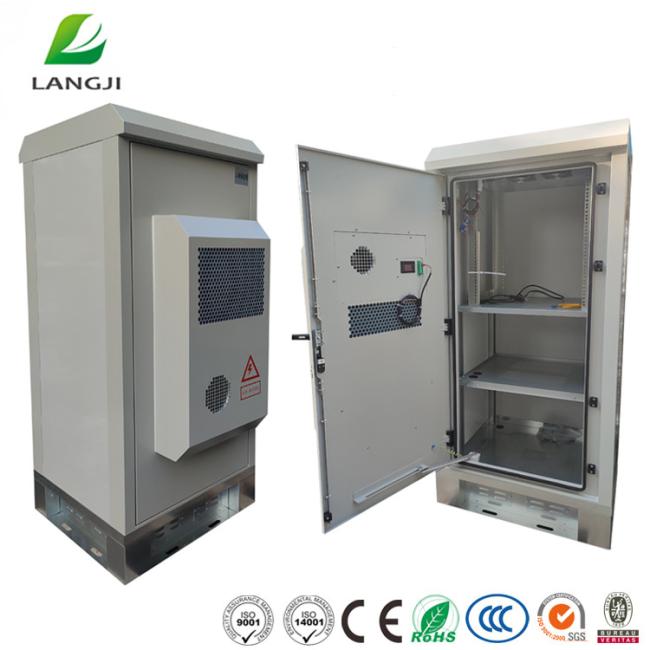

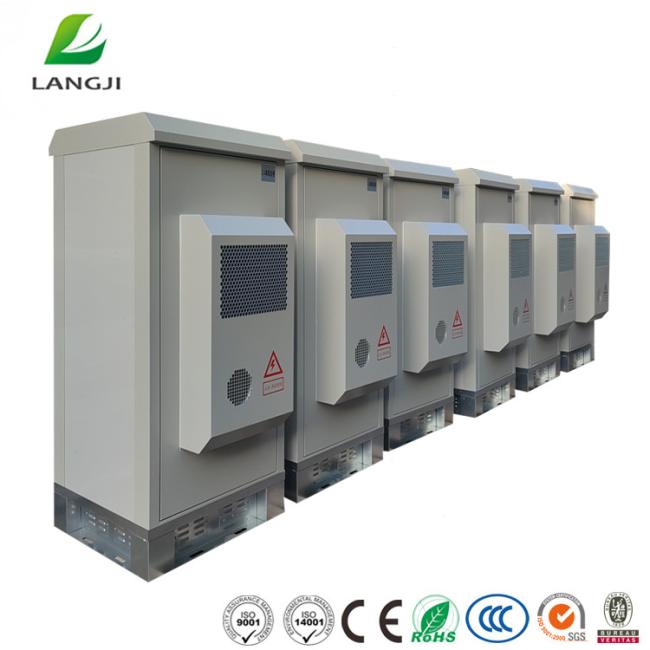

3. Outdoor telecom power cabinet Pictures:

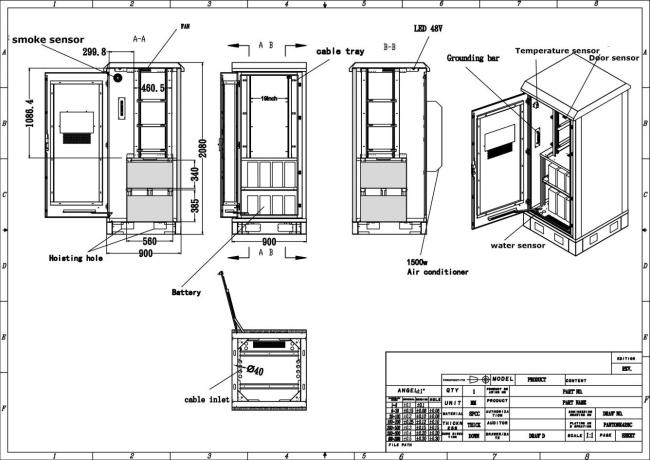

4. Drawing

5. Outdoor Telecom Power Cabinet Features

1). Sandwich panel construction

2). Attractive powder coat finish

3). Strong 19'' rack inside to be equipped with telecom equipments, power source, battery, temperature control device and other attachments.

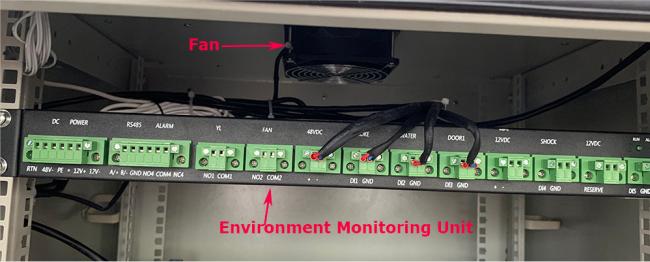

4) Digital display the temperature-setting, temperature alarm, temperature parameters inside and outside, and all kinds of other alarm information, etc.

5) Cabinet made of low thermal conductivity and fireproof material for heat insulation fireproof.

6). Anti-theft four-point outdoor cabinet lock,excellent keyhole protection device

7). IP55 cabinet,walls and roof in double steel with high quality insulation

8). High performance air conditioner for heat removal

9). Door stopper to hold door open at service

10). Pass earthquake intensity 8 anti-seismic performance test

11). Can be installed in any difficult places include the top of mountain and the roof of buildings.

12). Support custom-made

6. Product Details

7. Outdoor Telecom Power Cabinet Application:

Outdoor telecom power cabinet is mainly used for wireless communication base station, including the new generation of 4G system, communication network/network integrated services, access/transmission switching station, emergency communication/transmission, etc.
