600w IP55 Outdoor Cabinet Enclosure Air Cooling Units
600w IP55 outdoor cabinet air conditioners industrial enclosure air cooling units
1.Enclosure Ari Cooling Units Introduction
Enclosure Air Cooling Units are designed to maintain a set temperature inside the enclosure using a closed-loop method, ensuring a contaminant-free environment and protecting electrical/electronic components from overheating. Enclosure air conditioners are available for various operating voltages and cooling capacities.
Enclosure Air Cooling Units control temperatures inside of electrical cabinets to protect sensitive components from high heat loads, which can cause overheating and other malfunctions. Our electrical enclosures are effective at keeping out harmful contaminants like dust and dirt, vapors that can cause corrosion and preventing the buildup of moisture.
Langji offers a variety of electrical enclosure air cooling units solutions that include: enclosure air conditioners, plate heat exchangers etc.
2.Enclosure Air Cooling Units Specification
| Model | SAD106-2 |
| Cooling capacity(L35/L35) | 600W |
| Voltage | 220VAC±15% 50/60Hz |
| Rated Power(L35/L35) | 360W |
| Rated Current | 1.63A |
| Circuit max pressure | 26bar |
| Refrigerant | R134a |
| Heating Power(Optional) | 500W |
| Working temperature | -40～55℃ |
| Noise | 56dB |
| Weight | 21Kg |
| IP Grade | IP55 |
| Dimension(W×D×H) |
455×155×692mm |
3. Enclosure Air Cooling Units Advantages
1)Good design, stable structure and easy maintenance.
2)Widely used for outdoor telecommunication cabinets, battery cabinets, electric cabinets and industry control cabinets etc.
3)Door mounted, side mounted and top mounted available.
4)The protective level is IP55, can protect cabinet from moisture, dust and water. It can be installed indoor and outdoor, run at high ambient temperature of 55℃.
5)Digital temperature controller and high precision of temperature control.
6)CE certified, which can meet EU RoHS requirements.

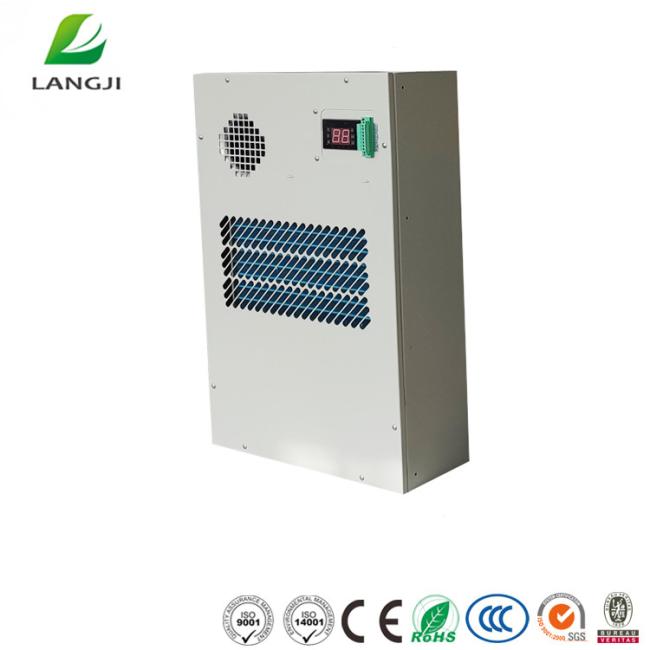

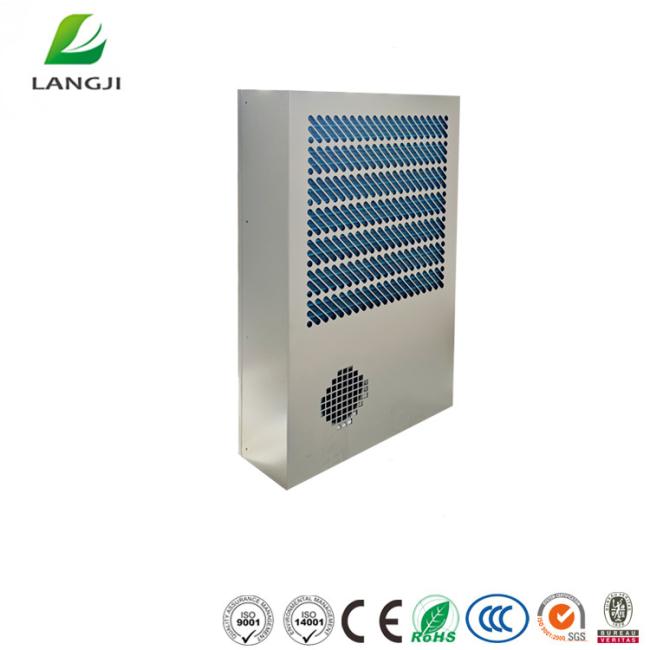

4. Enclosure Air Cooling Units Pictures
5. Application of Enclosure Air Cooling Units
1)Outdoor telecom cabinet
2)Outdoor battery cabinet
3)Electrical cabinet
4)Industrial control cabinet
6. Enclosure Air Cooling Units Details
7. Packaging & Shipping
8. Our strengths
① 100% original manufacturer
② Our steel raw material comes from famous Company, with higher quality assurance
③ Various sizes and accessories can be provided according to different application requirements
④ Professional container loading team, make full use of space and save your transportation cost
