Flip Chip Flexible LED COB Strip Light 2700k Warm White 10W 24V COB FOB LED
COB led strip light product detail:
COB led strip light is flexible. It can use like the normally flexible led strip light. The lighting angle is 180°. It can use any surface need dotless version.
If the LED density not enough, the traditional LED strip light use with the led aluminum profile will see one dot by one dot.
The cob led strip light use with led aluminum profile doesn't have that problem. It is dotless.
| Item No. | Color | LEDs/unit | LEDs/m | PCB Width (mm) |
PCB Thickness (OZ) |
Cutting Length (mm) | Dominant Wave (nm) | Viewing Angle | Voltage (V) |
Power (W/M) |
| AR-FS-COB-480R | R | 24 | 480 | 8 | 2 | 50 | 620-630 | 180 | 24 | 10 |
| AR-FS-COB-480G | G | 24 | 480 | 8 | 2 | 50 | 520-530 | 180 | 24 | 10 |
| AR-FS-COB-480B | B | 24 | 480 | 8 | 2 | 50 | 455-465 | 180 | 24 | 10 |
| AR-FS-COB-480Y | Y | 24 | 480 | 8 | 2 | 50 | 585-595 | 180 | 24 | 10 |
| AR-FS-COB-480P | Pink | 24 | 480 | · | 2 | 50 | 645-655 | 180 | 24 | 10 |
1.Own R&D OEM is welcome
2.24 hours on line one to one service
3.All inquiry will be replied within 24 hours
4.8 year golden & verified supplier in Alibaba
5.Free replacement
6.Strict quality control
| Features: |
COB high density
Even lighting output
Free splicing Flip chip technology based on flexible substrate led chips soldered directly on FPCB, makes the light ultra high reliability, flat surface.
High flexible arbitrary bending long durability
Cuttable and Linkable
| Advantages: |
1. Overall thickness 0.6mm,flat appearance,regular,consistent ,bring unlimited space to the design
2. The emitted light is continuous uninterrupted and uniform linear light, and there is no dark area at any close distance.
3. Uniform brightness at each point,no dazzle, no glare
4. Flip-chip process, no dead light risk, 1000 high temperature and low temperature thermal shock test (-40 °C / +100 °C)
5. Single core current is small, the lamp has low heat and long life
6. Multi-dimentional parallel protection, even if the single core loss is abnormally damaged, no dark light
7. The lamp strip substrate is resistant to vulcanization, has high halogenation ability, is lit for a long time, and has consistent color consistency.
8. Arbitrary node,bend at any angle.Extreme winding aging for more than 10,000 hours.
9.High Color Rendering Index

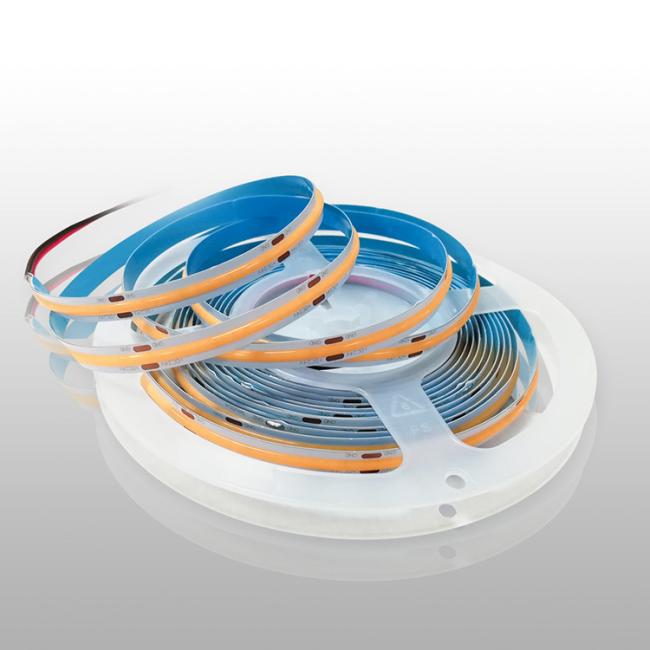

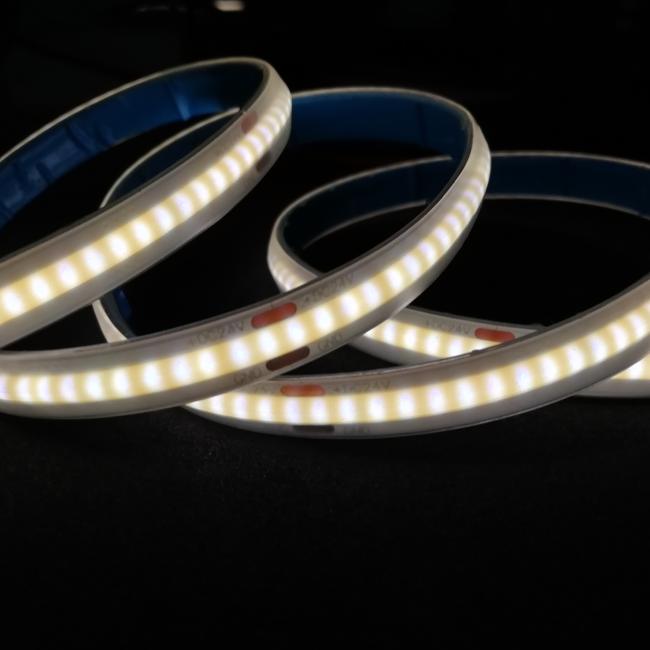

| Product display: |

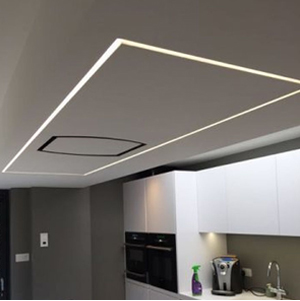

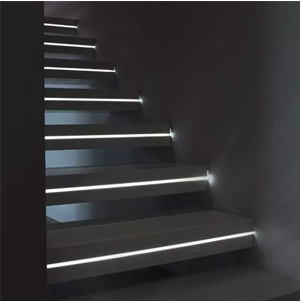

| Application: |
Letter signage backlight
Building Decoration
Auditorium walkway lighting
Advertising signs, light box lighting
Landscape decoration
Decorative lighting for festivals, events, shows, exhibitions
Architectural lighting for canopy, corridor, window, archway
Backing or edge light for signage
Path or contour marking
Channel letter lighting
