EN1254-6 Standard 3/4''X3/4" FIP 24" Flexible Brass Hose
EN1254-6 3/4'' X 3/4" FIP 24" Flexible Brass Hose

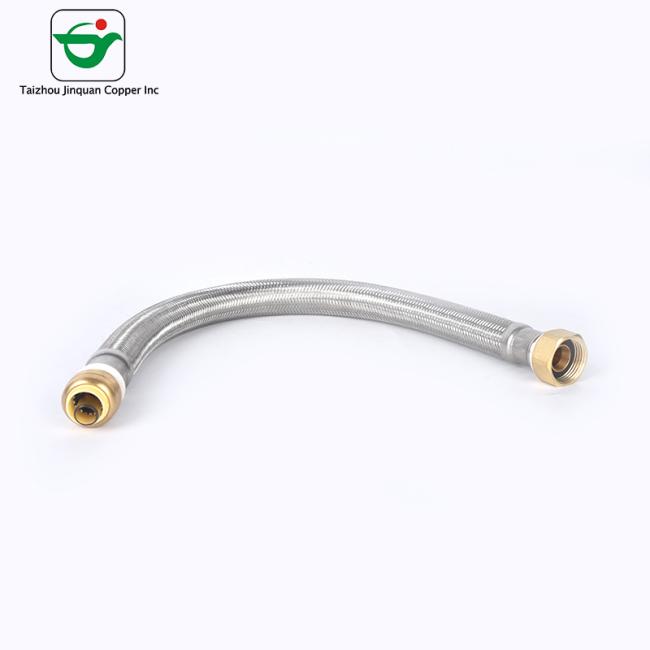

Flexible Brass Hose Introduction
The metal flexible hose is made of thin-walled seamless or welded stainless steel tube which undergoes precise plastic processing. This metal hose has very good flexibility and elasticity because of waveform of the metal hose, making it very easy to absorb deformation of the cyclic loading caused by displacement, particularly in the piping system, the metallic flexible hose has the ability to compensate for a large amount of displacement.
JINQUAN introduced eight metallic flexible hose automatic welding production lines for the production of high-precision metallic flexible hoses, which greatly improved the quality of the hose and broke the hose length limits.
The net wrapping waveform tube is a main pressure-bearing parts, as well as a protection parts for metallic flexible hose. Yoryuo match the layers of woven stainless steel wire or steel strip for customers according to the pressure in the pipe size and applications
Flexible Brass Hose Parameters
|
Detail Specification
|
|
|
Product Name
|
flexible hose
|
|
Material
|
304 Stainless steel
|
|
Finishing
|
Brushed nickel finishing
|
|
Size
|
30cm, 40cm, 50cm, 60cm, 80cm,100cm,120cm,150cm,200cm
|
|
Function
|
Cold/hot water faucet inlet hose
|
|
Working pressure
|
10 Bar
|
|
Seal test
|
1.6±0.05Mpa and 0.05±0.01Mpa, keep 1 min, no leakage
|
|
Flow rate
|
≤8.3L/min
|
|
Plating
|
Acid salt spray test ≥ 24 or 48 hours
|
|
Plating thickness
|
Chrome ≥ 0.2µm, nickel ≥ 8µm Or per your request
|
|
Certification
|
ISO9001:2008, ISO14001, cUPC, NSF, AB1953. Watersense
|
|
Warranty time
|
5 years
|
|
Customized
|
OEM & ODM are welcomed
|
|
Package
|
One piece one box
|
|
Package & Shipping
|
|
|
Samples leading time
|
3-5 days
|
|
Bulk leading time
|
About 15 days
|
|
Inner box
|
200*160*145cm
|
|
Carton Size
|
510*420*300 cm
|
