Hydraulic Transmission Fork Positioner Diesel Forklift Truck With ISUZU Engine

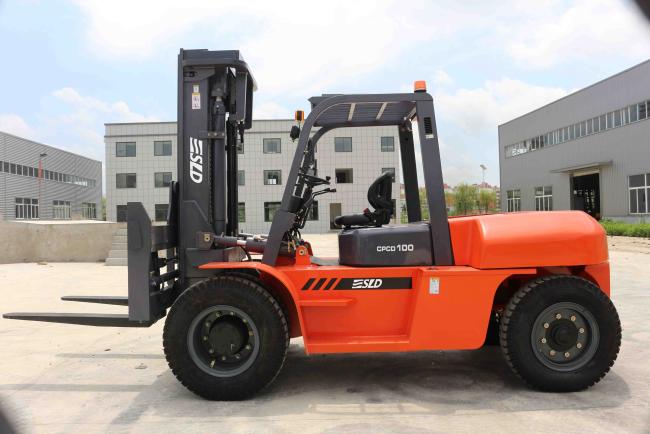

10 Tons Diesel Forklift Truck With ISUZU 6BG1 Engine Hydraulic Transmission Fork Positioner
- Power system
Equipped with Chinese powerful and reliable engine with excellent environmental performance. Original imported ISUZU, MITSUBISHI and CUMMINS engines as options.
- Heavy-duty driving axle
Install heavy-duty driving axle to ensure safety work at bad working conditions.
- Hydraulic system
Adopt advanced load sense technology which offers flow for steering system to save energy, protect environment, and lower the system heat.
- Security system
Equipped with OPS or ORS seat and brake switch to prevent incorrect operation and secure the driver and the forklift from all sides.
- Lighting system
Equipped with full set of LED lamps, which are brighter and energy saving.
| l | ||||
| Model | FD100 | FD120 | ||
| Power Type | Diesel | Diesel | ||
| Load Capacity | kg | 10000 | 12000 | |
| Load centre | mm | 600 | 600 | |
| Tyre | ||||
| Tyre | Pneumatic Tyre | Pneumatic Tyre | ||
| Front Tyre | 9.00-20-14PR | 11.00-20-16PR | ||
| Rear Tyre | 9.00-20-14PR | 9.00-20 | ||
| Overall Dimension | ||||
| Lift Height | mm | 3000 | 3000 | |
| Fork Size | L×W×T | mm | 1520×175×85 | 1520×180×100 |
| Mast Tilt Angle | F/R | . | 6/12 | 6/12 |
| Mast Lowered Height | mm | 2830 | 3080 | |
| Mast Extended Height(with backrest) | mm | 4335 | 4500 | |
| Length to face of fork(Without fork) | mm | 4280 | 4700 | |
| Overall Width | mm | 2170 | 2200 | |
| Overhead Guard Height | mm | 2570 | 2590 | |
