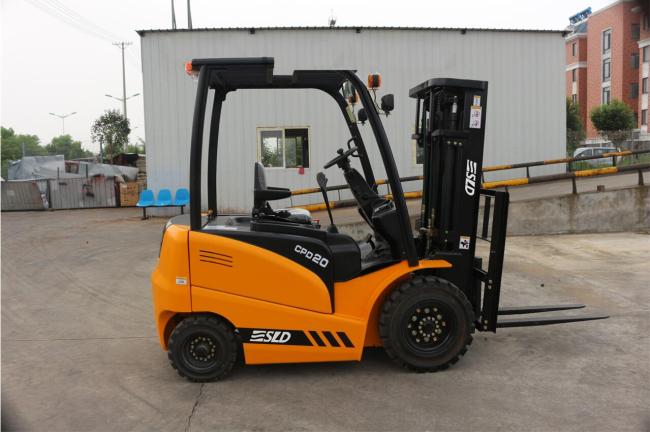

Industrial 48V 560Ah Battery Electric Warehouse Forklift 2.0 Ton
AC / DC Drive Electric Warehouse Forklift Industrial Forklift Truck 2.0 Ton
2.0 ton Electric Forklift advantages:
Improved driver's view
Standard configuration of wide view mast, compact structure of mast and tube pulley block;
Overhead guard with large arc and grid tray with optimized angle enlarge driver's upper view.
- Choose to use chinese battery, and it can be taken out easily(two way,From top and from side)
- LED lamp
- Famous brand battery and charger
- Curtis or Zapi AC controller
- Reasonable structure,better heat dissipation for controller
- Battery water automatic replenish for optional
- Forklift With Powerful Ac driving motor applied to reduce maintenance cost and increase the overall performance.
| General | ||||
| Model | FB20 | FB25 | ||
| Power Type | Electric | Electric | ||
| Load Capacity | kg | 2000 | 2500 | |
| Load centre | mm | 500 | 500 | |
| Tyre | ||||
| Tyre | Pneumatic Tyre | Pneumatic Tyre | ||
| Front Tyre | 7.00-12-12PR | 7.00-12-12PR | ||
| Rear Tyre | 18×7-8-14PR | 18×7-8-14PR | ||
| Overall Dimension | ||||
| Lift Height | mm | 3000 | 3000 | |
| Fork Size | L×W×T | mm | 1070×120×40 | 1070×120×40 |
| Mast Tilt Angle | F/R | . | 6/12 | 6/12 |
| Mast Lowered Height | mm | 2070 | 2070 | |
| Mast Extended Height(with backrest) | mm | 4070 | 4070 | |
| Length to face of fork(Without fork) | mm | 2360 | 2360 | |
| Overall Width | mm | 1160 | 1160 | |
| Overhead Guard Height | mm | 2240 | 2240 | |
