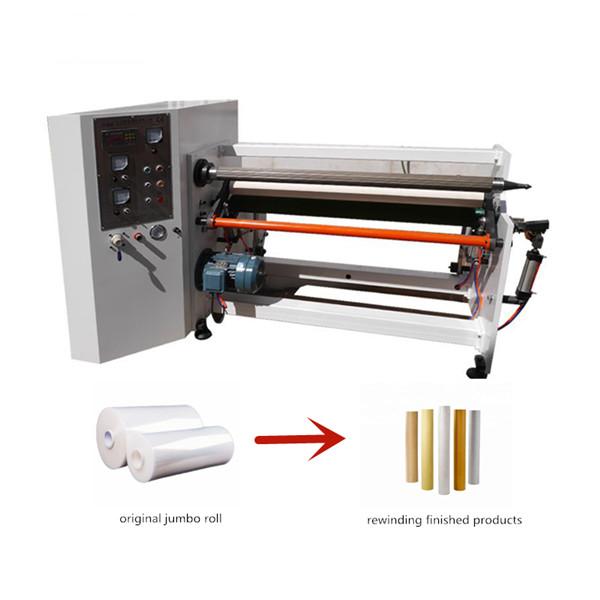

5kw Single Shaft Adhesive Foam 1300mm Tape Rewinding Machine
1300mm 5kw Single Shaft Adhesive Foam Tape Roll To Roll Rewinding Machine
Product Application
Suitable for BOPP tape, PE, PET, masking tape, double-sided tape, foam tape, release paper and many other adhesive and non-adhesive materials 1300mm 5kw Single Shaft Adhesive Foam Tape Roll To Roll Rewinding Machine.
Main Technical Parameters 1300mm 5kw single shaft adhesive foam tape roll to roll rewinding machine :
| Name | 1300mm 5kw single shaft adhesive foam tape roll to roll rewinding machine |
| max. unwind diameter | 1000mm |
| max. rewind diameter | 250mm |
| max. rewind speed | 0-150M/min |
| I.D. of paper core | 76.2mm |
| main motor | 5 HP×2 |
| air pressure | 5Bar |
Main Features :
1) Unwind and rewind tension is adopted with PLC auto taper control. E.g.: when the rewind diameter is increasing, rewind tension is also increasing accordingly, so that the tension in the whole rewinding process keeps the same, i.e. constant tension.
2) Automatic length setting: once the set length is reached, servo motor is adopted to ensure easy operation and efficient performance.
3) Programmable controller: the high performance programmable controller offers convenient control of the entire rewinding operation. Both length and tension are accurately displayed by LCD readout.
4) The paper core is held firmly on the air shaft. With easy, fast loading and unloading, it greatly improves efficiency.
5) Hydraulic auto up-lifter device (optional): this device offers easy material loading for operational convenience and improves efficiency.
Finished Product:
