Crimped Woven Stainless Steel Wire Mesh SUS304 20 inch No Tearing
SUS 304 20 mesh stainless steel crimped woven wire mesh

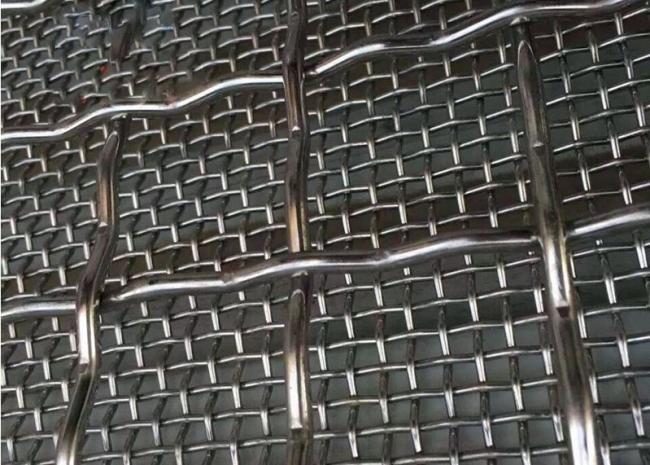

Stainless steel crimped woven wire mesh product description:
Stainless steel crimped woven wire mesh is available in different wire diameters, mesh opening and open area. This is widely used for various applications such as screening, sizing, grading, shifting, separating, scalping and washing. This wire mesh can be also custom designed in case plungers and vibrating rods are needed to insert for protection against tearing. It is installed above rubber beads to avoid metal to metal contacts.
| Mesh/inch |
Wire diameter |
Aperture |
| 2mesh | 1.80 | 10.90 |
| 4mesh | 1.20 | 5.15 |
| 6mesh | 0.80 | 3.433 |
| 8mesh | 0.60 | 2.575 |
| 10mesh | 0.55 | 1.990 |
| 12mesh | 0.50 | 1.616 |
| 14mesh | 0.45 | 1.362 |
| 16mesh | 0.40 | 1.188 |
| 18mesh | 0.35 | 1.060 |
| 20mesh | 0.30 | 0.970 |
| 30mesh | 0.25 | 0.596 |
| 40mesh | 0.21 | 0.425 |
| 50mesh | 0.19 | 0.318 |
| 100mesh | 0.10 | 0.154 |
| 120mesh | 0.08 | 0.132 |
| 150mesh | 0.065 | 0.104 |
| 180mesh | 0.053 | 0.088 |
| 200mesh | 0.053 | 0.074 |
When screens form part of the manufacturing process, the profits will depend on the specification of the screens which must be chosen to give optimum performance. The specification of the screen best suited to the screening operation depends on:
The screen selected must achieve a compromise amongst these factors.
When ordering screens the following technical aspects should be taken into account :
Thickness of wire
Thick wire will last longer than thin wire, but will give a smaller open area and will therefore pass less material per unit area.
1. Are you factory/manufacturer or trader?
We are direct factory who owns production lines and workers. Everything is flexible and there is no need to worry about extra charges by the middle man or trader.
2. Which countries do you export to?
Our goods are mainly exported to Australia, Canada, UK, USA, Germany, Thailand,South Korea and so on.
3. Can I get free samples?
If the sample is available, yes, can be free. If unavailable, need to customize.
4. What is your minimum order quantity?
Actually there is no MOQ for our products. But usually we recommend a quantity based on the price which is easy to accept.
5. Which payment method you can accept?
Generally we adopt T/T, LC, Western Union, PayPal, Escrow and Money Gram
