Twill Dutch Weave Stainless Steel Wire Mesh 325x2300 2m Width
325x2300mesh Stainless steel Twill Dutch Weave Mesh
325x2300mesh Stainless steel Twill Dutch Weave Mesh product description:
Weaving Method: This type of woven wire mesh/cloth/fabric is a kind of twilled woven wire product combined with the Hollander Weave or Dutch weave. This pattern enables a strong wire cloth with super fine filtration. Compared with common Twill Weave, the Dutch twill allows a thick structure and a fine filter material. The weft wires and the warp wires intercross two above and two below, inverting the intersections of the warp wire at an established distance, obtaining a rigid, stable and robust type of wire mesh fabric.
Uses: Dutch Twill also known as Crossed twilled wire mesh are basic components in the production of filter used in chemical industry, medicine, petroleum, telecom-communication, scientific research units and so on.
Forms of Supply: Supplied in full rolls or cut strips, round pieces. Processed in the forms of disc screen and filter elements.
Wire Materials:
Mainly Stainless Steel Wire: Aisi 304, 304L, 316, 316L.
Specification of Dutch Twill Woven Wire Mesh, Made of Stainless Steel: Table 1:
| Mesh Count Warp x Weft |
Wire Dia mm Warp x Weft |
Wire Dia inch Warp x Weft |
Micron Rating |
| 20 x 250 | 0.250 x 0.215 | 0.0100 x 0.0085 | 70-90 |
| 40 x 400 | 0.180 x 0.140 | 0.0071 x 0.0055 | 90-110 |
| 50 x 500 | 0.140 x 0.114 | 0.0055 x 0.0045 | 70-90 |
| 50 x 600 | 0.140 x 0.090 | 0.0055 x 0.0035 | 60-70 |
| 80 x 700 | 0.100 x 0.080 | 0.0040 x 0.0032 | 45-55 |
| 100 x 800 | 0.100 x 0.070 | 0.0040 x 0.0028 | 36-38 |
| 120 x 1000 | 0.080 x 0.053 | 0.0031 x 0.0021 | 27-29 |
| 165 x 800 | 0.070 x 0.053 | 0.0027 x 0.0021 | 24-26 |
| 165 x 1450 | 0.070 x 0.040 | 0.0027 x 0.0016 | 16-18 |
| 270 x 2000 | 0.350 x 0.028 | 0.0014 x 0.0011 | 9-10 |
| 325 x 2400 | 0.035 x 0.025 | 0.0014 x 0.0010 | 4-5 |
Features of Stainless Steel Woven Mesh:
- Uniform aperture
- Standard hole size
- Good filter performance.
- Corrosion resistance.
- Anti-acid and alkali
- Anti-high temperture.
Packing way of Stainless Steel Woven Mesh:
1.inside use carton pipe for support+wire mesh layer+water proof paper
2.outside use plastic wooden bags,wooden case/carton pipes/wooden pallets.
3.also we can as per your requirements.

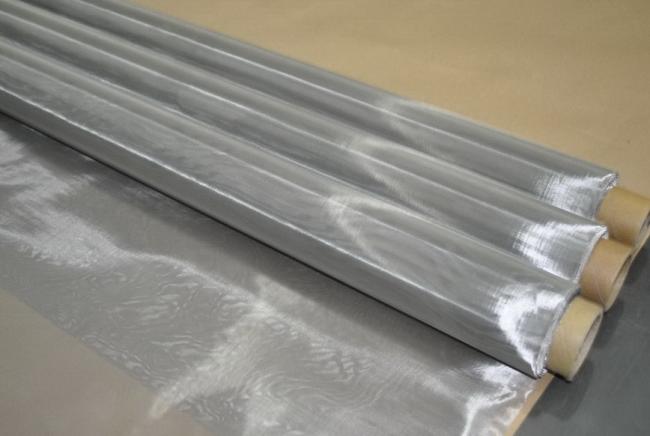

Pictures of Stainless Steel Woven Mesh show to you for reference:
