Galvanised Expanding Metal Roll Lathing Corrosion Resistant
3'-6' Galvanized steel decorative expanded metal wire mesh rolls
3'-6' Galvanized steel decorative expanded metal wire mesh rolls product description:
Expanded metal mesh is the industry a variety of metal mesh, also known as expanded metal, diamond wire mesh, iron wire mesh, metal expansion net, heavy steel plate net, pedal mesh, stainless steel mesh, granary, antenna wire mesh, filter mesh, acoustics meshes, etc
Expanded metal mesh: low carbon steel, stainless steel plate, aluminum plate, copper plate, nickel plate, aluminum and magnesium alloy plate and other metal plate
Expanded metal mesh surface treatment: PVC dip molding(plastic spraying, plastic coated), hot-dipped galvanized, electric galvanized, spray paint, etc
Expanded metal mesh specification:
| Thickness | SWD | LWD | wire stems width | Width | Length | Weight |
| (mm) | (mm) | (mm) | (mm) | (m) | (m) | (kg/m2) |
| 0.5 | 2.5 | 4.5 | 0.5 | 0.5 | 1 | 1.8 |
| 0.5 | 10 | 25 | 0.5 | 0.6 | 2 | 0.73 |
| 0.6 | 10 | 25 | 1 | 0.6 | 2 | 1 |
| 0.8 | 10 | 25 | 1 | 0.6 | 2 | 1.25 |
| 1 | 10 | 25 | 1.1 | 0.6 | 2 | 1.77 |
| 1 | 15 | 40 | 1.5 | 2 | 4 | 1.85 |
| 1.2 | 10 | 25 | 1.1 | 2 | 4 | 2.21 |
| 1.2 | 15 | 40 | 1.5 | 2 | 4 | 2.3 |
| 1.5 | 15 | 40 | 1.5 | 1.8 | 4 | 2.77 |
| 1.5 | 23 | 60 | 2.6 | 2 | 3.6 | 2.77 |
| 2 | 18 | 50 | 2.1 | 2 | 4 | 3.69 |
| 2 | 22 | 60 | 2.6 | 2 | 4 | 3.69 |
| 3 | 40 | 80 | 3.8 | 2 | 4 | 5.00 |
| 4 | 50 | 100 | 4 | 2 | 2 | 11.15 |
| 4 | 60 | 120 | 4 | 2 | 7.5 | 4.0 |
| 4 | 80 | 180 | 4 | 2 | 10 | 3.0 |
| 4 | 100 | 200 | 4 | 2 | 12 | 2.5 |
| 4.5 | 50 | 100 | 5 | 2 | 2.7 | 11.15 |
| 5 | 50 | 100 | 5 | 1.4 | 2.6 | 12.39 |
| 5 | 75 | 150 | 5 | 2 | 10 | 3.0 |
| 6 | 50 | 100 | 6 | 2 | 2.5 | 17.35 |
| 8 | 50 | 100 | 8 | 2 | 2.1 | 28.26 |
Decorative expanded metal mesh features:
1. Attractive look
2. Skid proof surface
3. Completely safe
4. No crack, joint or weld
5. Variety of openings and sizes
6. Suitable for versatile applications
7. More than 60% savings in cost
8. Easy to handle and install
9. Style and functionality
10. Flesible-could be bent or curved
11. Withstand high stress due to uncut knuckles
Decorative expanded metal mesh widely useages:
- Perimeter fencing / gates
- ceiling, partition,
- Pedestrian safety barriers
- airport ceiling,
- Wall reinforcement
- high - grade restaurant,
- curtain wall decoration mesh

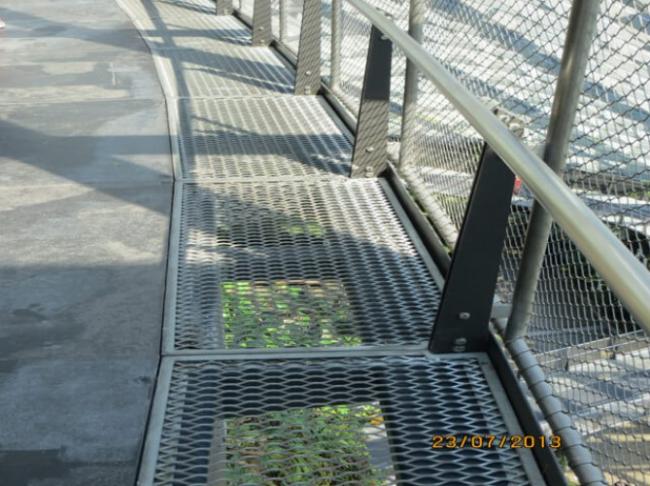

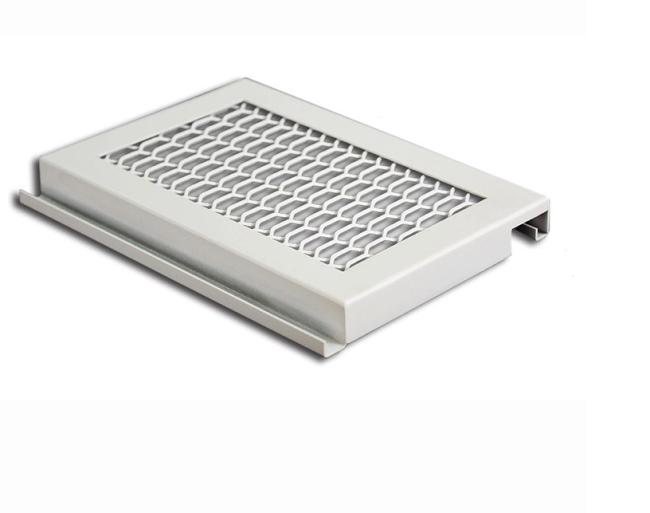

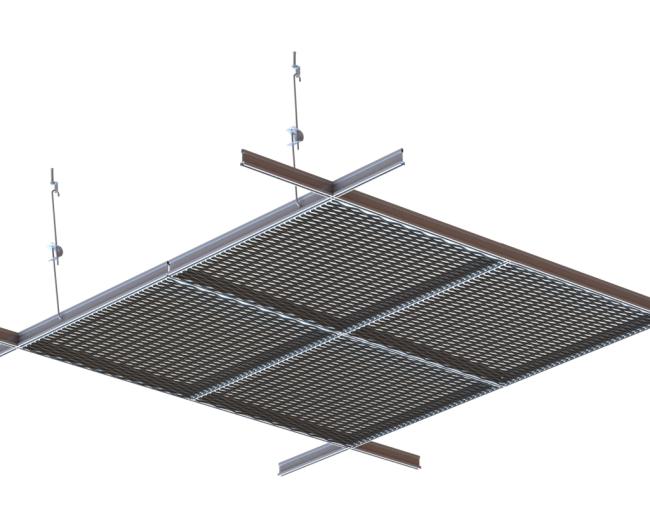

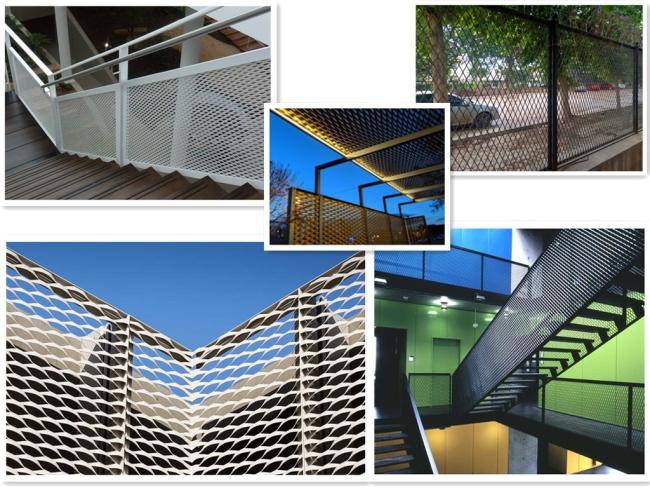

Product Display:
FAQ
1. Can you make custom panels if I have a design?
Yes,we can OEM according to your detailed drawings.
2. Can I get a pcs of your products sample?
Yes, free samples will be provided anytime.
3. What type of materials do you use for your products?
Carbon steel plate,Stainless steel plate,Aluminum and Aluminum Alloy plate,Cooper plate,Galvanized plate etc.
Special material also available
4. Do you have any certificate?
Yes,we have ISO9001,ISO14001,BV certificate,SGS certificate.
