316 Stainless Steel Perforated Filter Tube 1.2m Length 1.5mm Thickness
stainless steel 304 perforated tubes Decription:
Materials: stainless steel, carbon steel, aluminum or other materials. The mostly used stainless steel perforated tubes include 304, 304L, 316, 316L.
Hole patterns: round, square, hexagonal, oval and special hole patterns.
Processes: perforating, flattening, rolling, cutting, bending, edging, welding and finishing.
Applications:
Perforated metal tube can be used for decorating, cage ventilation, antiskid. At the same time, it can be as the guard of central heating, air conditioning equipment, different sorts of chassis and machines. Another important use is filtration. For instance, filter, filter pipe, water and gas treatment equipment.
Specifications:
Open area: it will determine the strength of the support tube and the filter flow.
The thickness of perforated metal tubes: 0.2mm to 15mm
Opening diameter: 0.2mm to 100mm
micro perforated metal sheet
| Hole Diameter |
Staggered Centers
|
Sheet Thickness | Open Area | ||
| 0.045'' | 1.14mm | 0.06 | 0.032'' | 0.81mm | 37.00% |
| 1/16'' | 1.59mm | 1/8'' | 0.032'',0.040'' | 0.81mm,1.02mm | 23.00% |
| 3/32'' | 2.38mm | 5/32'' | 0.040'',0.063'' | 1.02mm,1.60mm | 33.00% |
| 7/64'' | 2.78mm | 3/16'' | 0.32'' | 0.81mm | 29.00% |
| 1/8'' | 2.78mm | 3/16'' | 0.320'',0.040'',0.050'',0.063'',0.125'' | 0.81mm,1.02mm,1.27mm,1.60mm,3.17mm | 40.00% |
| 5/32'' | 3.97mm | 3/16'' | 0.320'',0.063'',0.090'' | 0.81mm,1.60mm,2.29mm | 63.00% |
| 3/16'' | 4.76mm | 1/4'' | 0.320'',0.040'',0.050'',0.063'' | 0.81mm,1.02mm,1.27mm,1.60mm | 50.00% |
| 3/16'' | 4.76mm | 3/8'' | 0.040'', | 1.02mm | 23.00% |
| 1/4'' | 6.35mm | 5/16'' | 0.063'' | 1.60mm | 58.00% |
| 1/4'' | 6.35mm | 3/8'' | 0.063'',0.125'' | 1.60mm,3.17mm | 40.00% |
| 1/2'' | 12.7mm | 11/16'' | 0.063'' | 1.60mm | 48.00% |

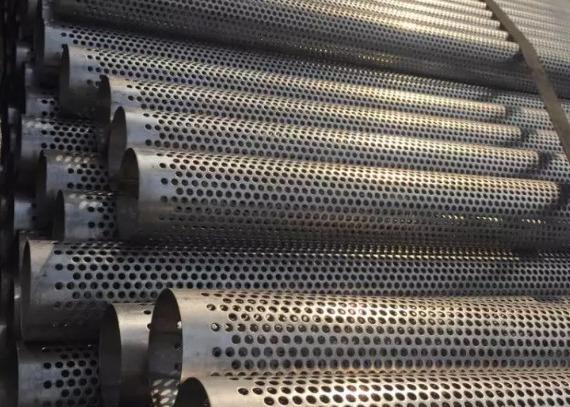

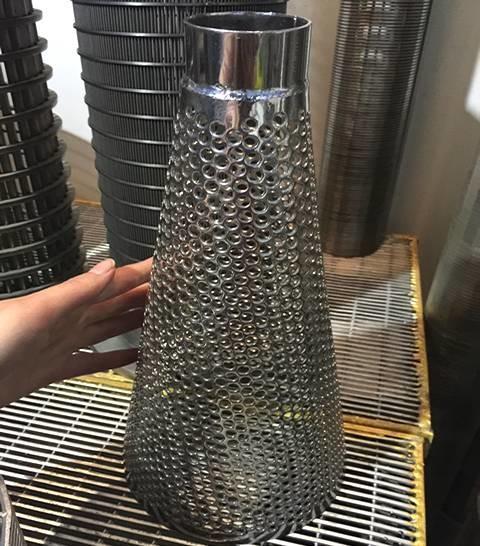

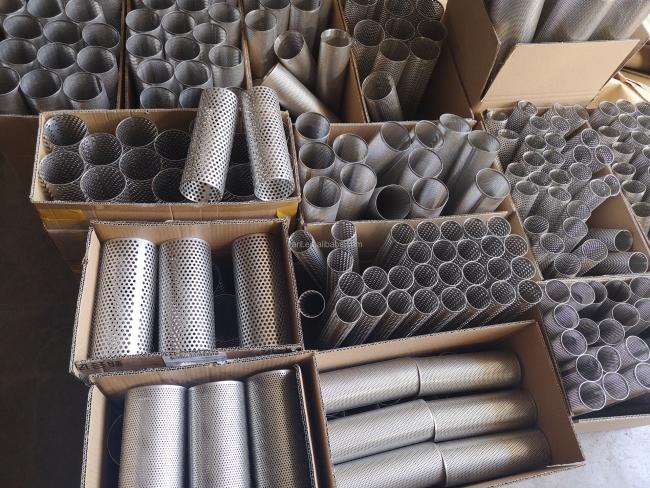

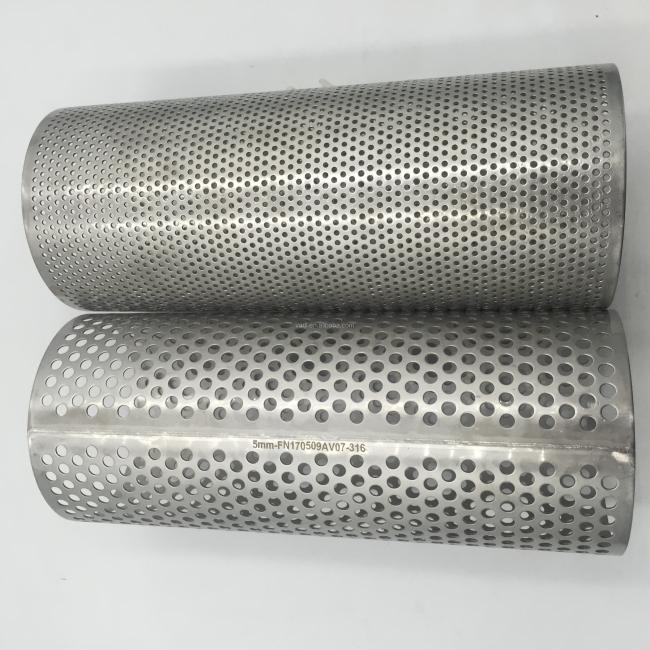

Product Images:
We are based in Hebei, China, start from 2007,sell to Domestic Market(30.00%),South America(11.00%),North America(10.00%),Eastern Europe(10.00%),Africa(7.00%),Oceania(6.00%),Southeast Asia(5.00%),South Asia(5.00%),Central America(5.00%),Northern Europe(3.00%),Western Europe(2.00%),Eastern Asia(2.00%),Southern Europe(2.00%),Mid East(2.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
stainless steel mesh,copper mesh,titanium mesh,nickel mesh,sintered mesh
4. why should you buy from us not from other suppliers?
Anping county Longyi Mesh Manufacture Co., Ltd. established in 2007, owns over 13 years experiecne in manufacturing and exporting the Stainless steel wire mesh, stainless steel filter products, titanium wire mesh, monel wire mesh, inconel mesh etc.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,EXW,DDU；
Accepted Payment Currency:USD,EUR;
Accepted Payment Type: T/T,L/C,Credit Card;
Language Spoken:English,Chinese,Russian
