Woven Metal Wire Rope Mesh 0.5m Width Stainless Steel 304 For Balustrade Infill

SS316 Woven metal rope mesh For Stair Case Balcony Railing Balustrade Infill

SS316 Woven metal rope mesh For Stair CaseBalcony Railing Balustrade Infill descriptio:

Wire mesh is a high strength wire mesh, diamond wire mesh, ring network, high strength steel wire grid gate) as the main part. Along with bolt and rope support parts constitute the whole system.To cover, tighten the slope surface way to prevention and control of slope rock collapse, tumble, blasting slungshot and other hazards.
Custom Manufactured Stainless Steel Flexible Rope Mesh / Cable Mesh

1. Material: AISI304/316/304L/316L,etc.
2. Ferrule material: Tinnes copper, Nickel plated copper, stainless steel, etc.
3. Cable dia: 1.20-5.0mm
4. Cable construction: 7*7(1.2--2.5mm), 7*19(3.0--4.0mm)

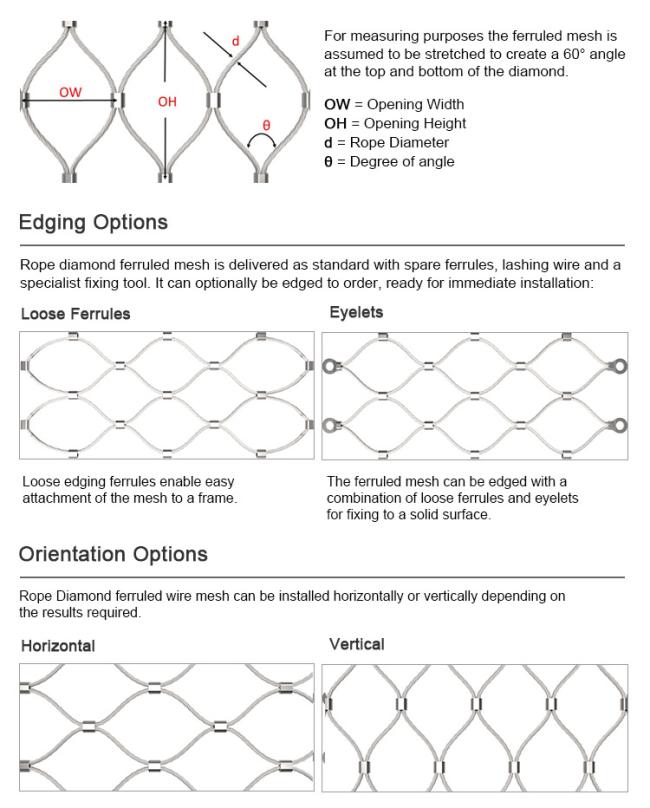

5. Opening Width(OW): 20--200mm, Opening Hight(OH): 35--346mm

Cable diameter		Mesh opening size		Nominal break
inch	mm	inch	mm	lbs.
1/8	3.2	4x4	102x102	1600
1/8	3.2	3x3	76x76	1600
1/8	3.2	2x2	51x51	1600
3/32	2.4	4x4	102x102	920
3/32	2.4	3x3	76x76	920
3/32	2.4	2x2	51x51	920
5/64	2	3x3	76x76	676
5/64	2	2x2	51x51	676
5/64	2	1-1/2x1-1/2	38x38	676
1/16	1.6	3x3	76x76	480
1/16	1.6	2x2	51x51	480
1/16	1.6	1-1/2x1-1/2	38x38	480
1/16	1.6	1x1	25.4x25.4	480
3/64	1.2	1-1/2x1-1/2	38x38	270
3/64	1.2	1x1	25.4x25.4	270
3/64	1.2	4/5x4/5	20x20	270

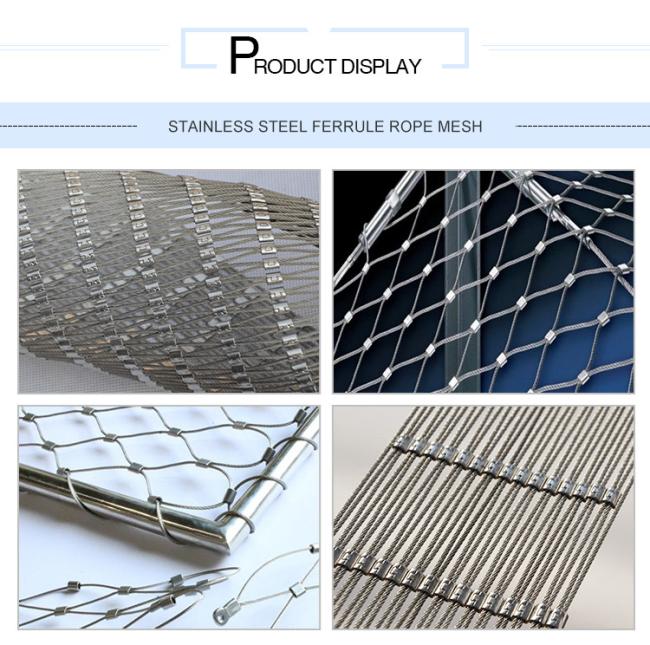

Product Display:

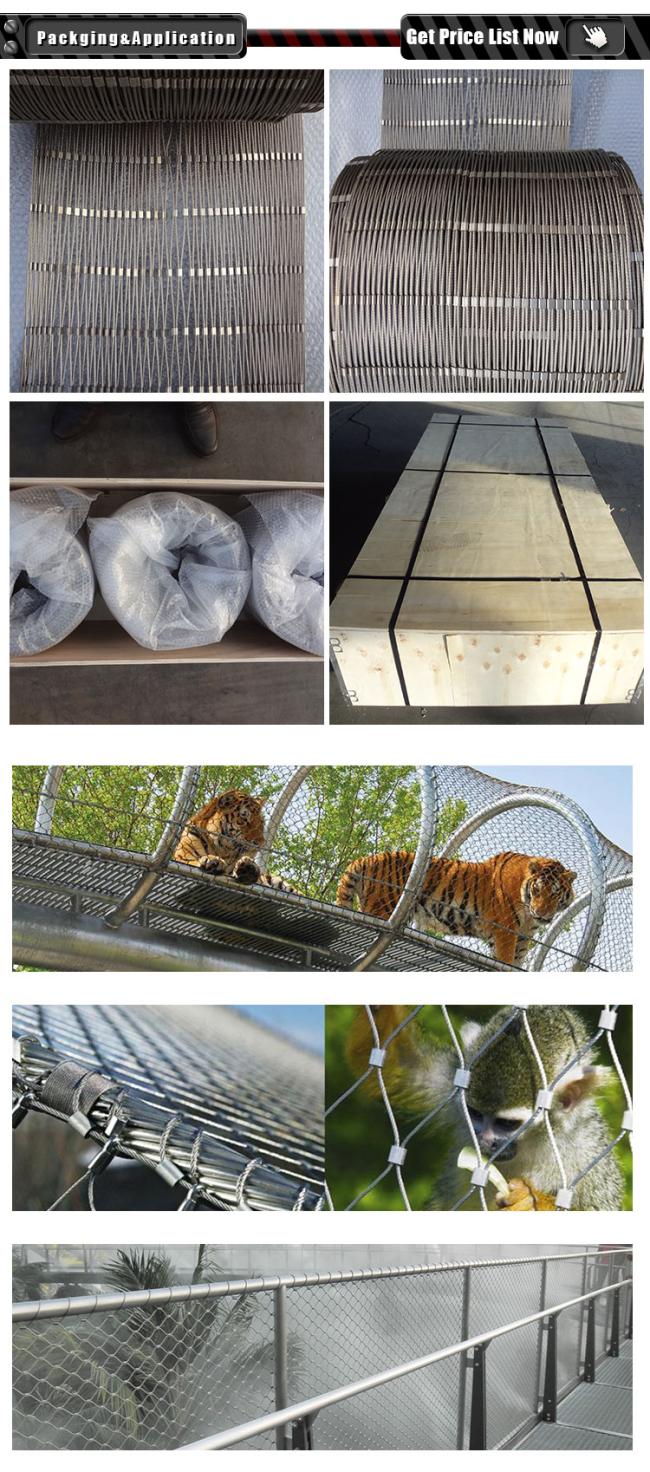

Stainless Steel Rope Mesh Usages:



Rope Mesh has multiple applications including balustrades, safety netting, zoological enclosures, tensile facades and art
installations.



FAQ:



1. Are you a manufacturer?
Yes, we are the ISO and CE certificated Manufacturer and our factory founded in this industry since 2001.
2. Will your price competitive?
Yes , we have stable and large raw material supplier ,we work with them for nearly 20 years . Our machine and technical it is most advanced , we will send our technical to aboard to learning new technical every year.
3.Can we have a sample ?
Yes , if the samples it is not much big , we can offer free sample , the courier it is paid by customers.
4.Can we visit your factory ?
Yes , you are welcome to visit us . we can pick you up from the airport .
5. What are the payment terms?
We can accept TT , LC , West Union , Money Gram , Cash.
