SS316 Flexible Metal Wire Rope Mesh Architectural 100mm Hole
SS 316 Architectural protective Flexible Stainless Steel Wire Rope Mesh
SS 316 Architectural protective Flexible Stainless Steel Wire Rope Mesh Product Description
Material:stainless steel304, 304L, 316, 316L.
Ferrule material:tinned copper, nickel plated copper, stainless steel.
Surface treatment:silver or black oxide finish.
Structures of wire cable:7 × 7, 7 × 19.
Cable diameter:1.0–5.0 mm.
Diamond sizes:20–200 mm.
Mesh opening angles:20°, 30°, 60°, 70°, 75°. Mesh aperture at 60° as standard opening.
Connection: ferrule or knotted.
Certification: certified to EN1263-1 for static and dynamic load capacity.
The type of stainless steel rope mesh:
There are two types of flexible wire rope meshes in construction: ferrule type and knotted.
| Flexible Stainless Steel Cable Mesh | ||
| Type | Knotted cable mesh | Ferrule cable mesh |
| Combination | Inter-woven | Seamless ferrule |
| Hole pattern | 90 degree diamond hole | 60 degree diamond hole |
| Material | SS304, 316, 316L, etc | |
| Cable diameter | 1 ~ 4 mm | |
| Cable structure | 7 × 7 (1.5 mm, 2 mm or 2.5 mm), 7 × 19 (3 mm, 4 mm) | |

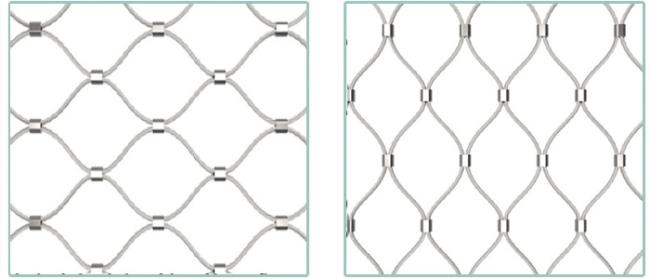

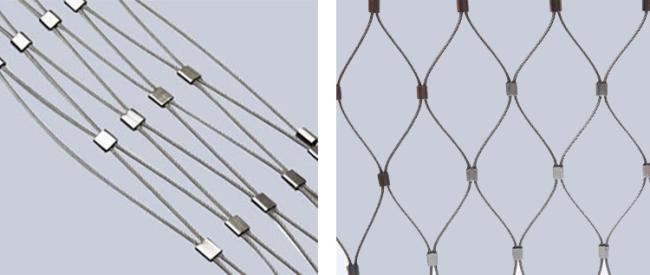

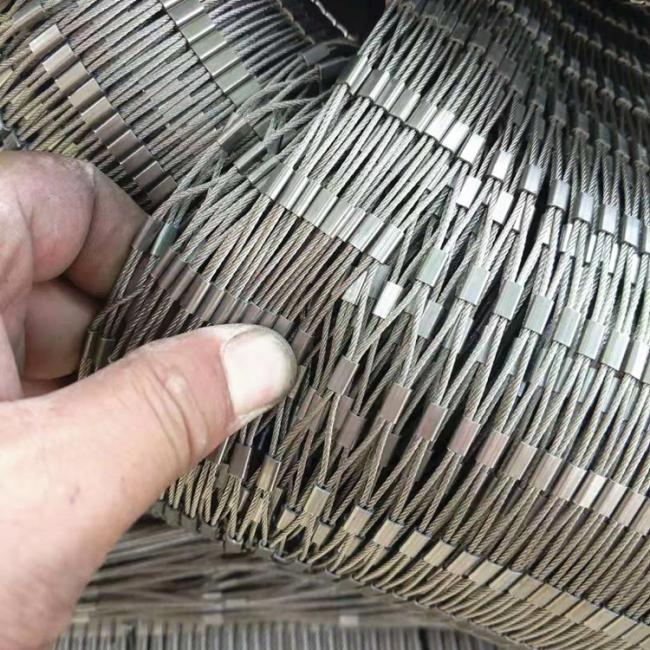

Product Images
Product Application
1. Green Facade - Cable System for Most Climbing Plants
2. Aviary Netting - Lightweight, Durable and Long Lasting
3. Cable Zoo Mesh - Solution to Enclosing Most Animals
4. Helipad Safety Net - Modular Heliport Webbing
5. Safety Net - Structural Measure to Prevent Suicide
6. Cable Mesh - Excellent Solution to Safety
7. Steel Mesh Balustrade - bridge, stair, balcony, path

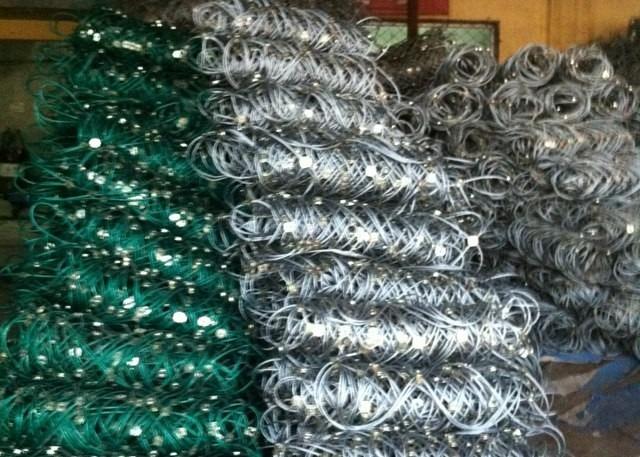

Packing & Delivery
