316 Knitted Stainless Steel Wire Mesh 2.5mm Thickness 500mm Width For Filtering
High Quality Knitted Stainless Steel Wire Mesh For Filtering
High Quality Knitted Stainless Steel Wire Mesh For Filtering Product Description
gas liquid knitted wire mesh/moisture separator Introduction:
Gas liquid filter, also known as the mist, a special form of woven wire mesh, it is a major component of the production of screen, other than demister, oil-gas separator, dust, environmental protection, engine silencers, mechanical damping.
Material: stainless steel wire AISI201, 202, 301, 302, 304, 304L, 321, 316, 316 L, galvanized wire, redrawing wire, brass wire, copper wire, titanium wire, alloy wire, nickel wire, nylon wire, PE wire, fiberglass wire.
Wire diameter: 0.10 ~ 0.55mm flat wire or round wire. Most common: 0.20mm-0.25mm.
Hole size: 4mm×3mm 5mm×6mm 2mmx4mm, 4mmx5mm etc.
Width: 40mm, 80mm, 100mm, 150mm, 200mm, 300mm, 400mm, 500 mm, 600mm, etc.
|
model
|
Specification(HG/T2168-1998)
|
Material
|
|
Standard type (SP)
|
40-100/60-150/105-300/140-400/
160-400/200-570
|
304/304L/316L/310S/321/2205
|
|
High efficiency (DP)
|
60-100/80-100/80-150/90-150/
150-300/200-400/300-600
|
304/304L/316L/310S/321/2205
|
|
High yield type (DR)
|
20-100/30-150/70-400/100-600/
170-560
|
304/304L/316L/310S/321/2205
|
|
Damping type (HR)
|
33-30/ 38-40/26-40/30-40/30-50/48-50/30-60/30-80/50-120
|
304/304L/316L/310S/321/2205
|
|
Take 400-10 as an example: there are 40 knitted 100mm wide gas-liquid filters or 100mm wide gas-liquid filters with 40 holes.Standard gas-liquid filter is the most widely used model, 40-100, 140-400 are more commonly used
|
||

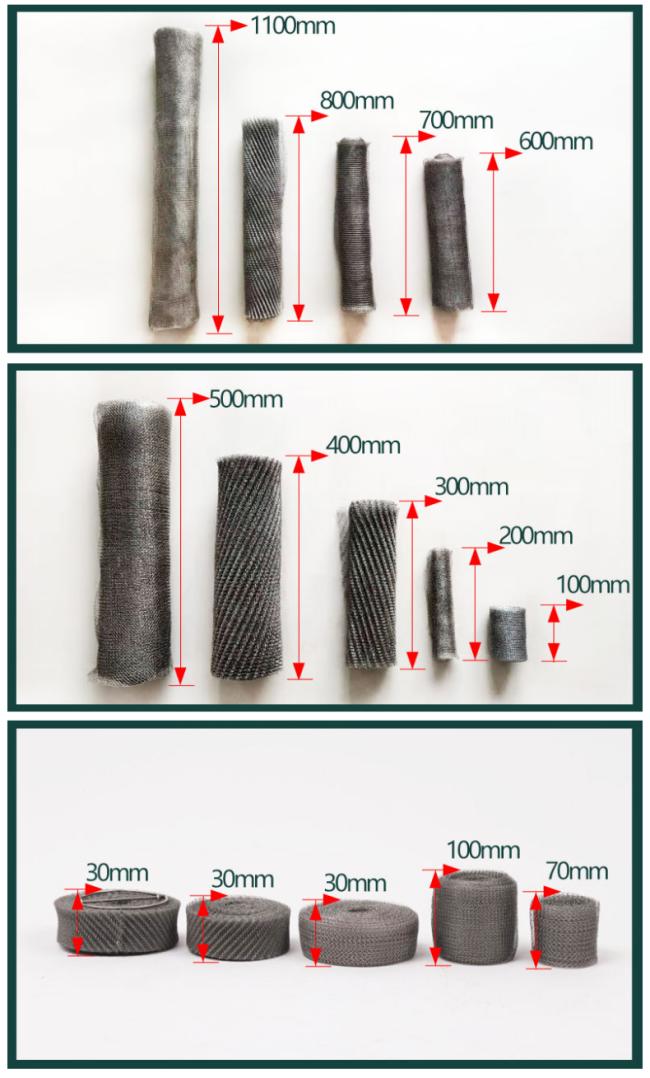

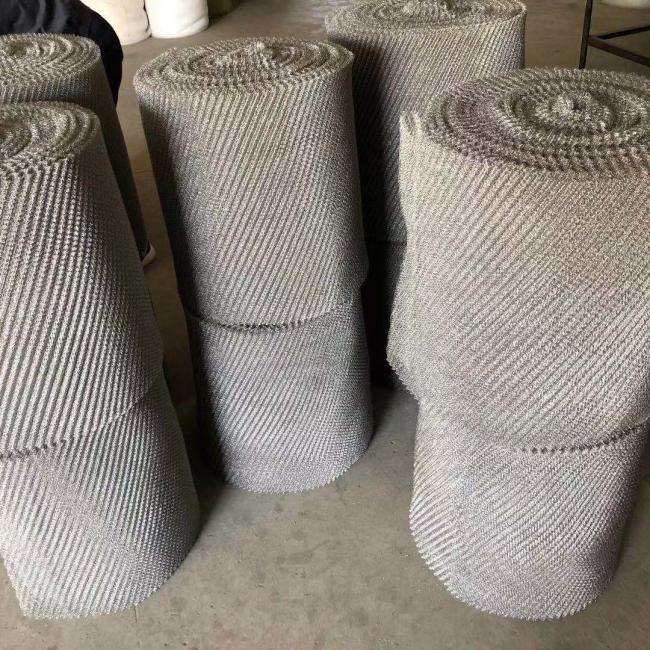

Product Images

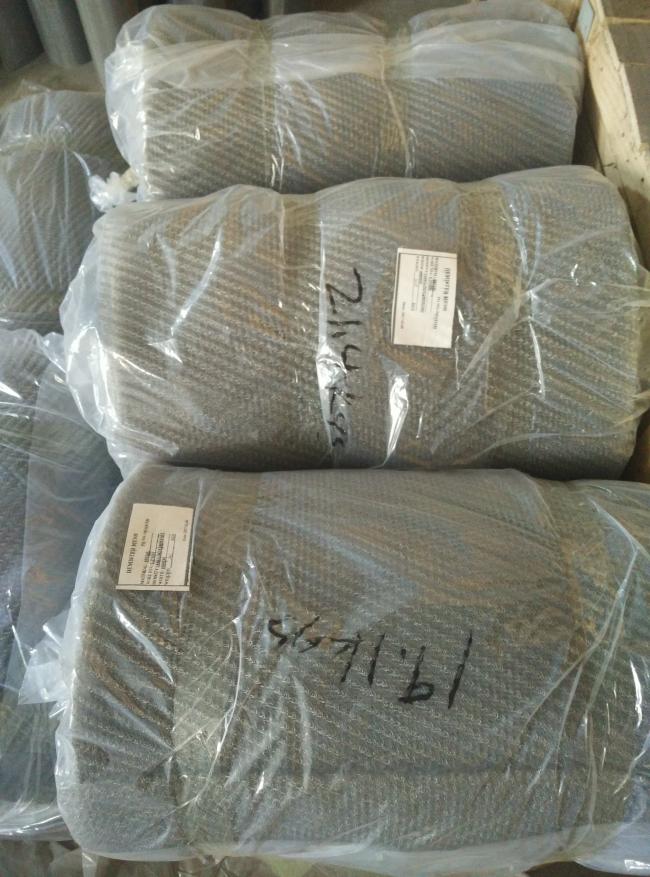

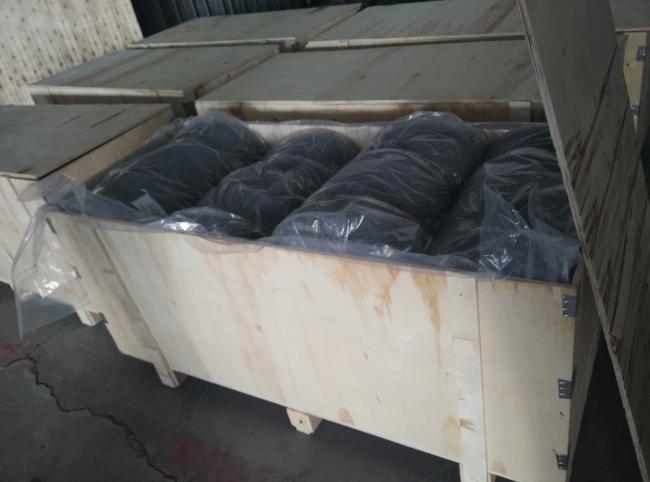

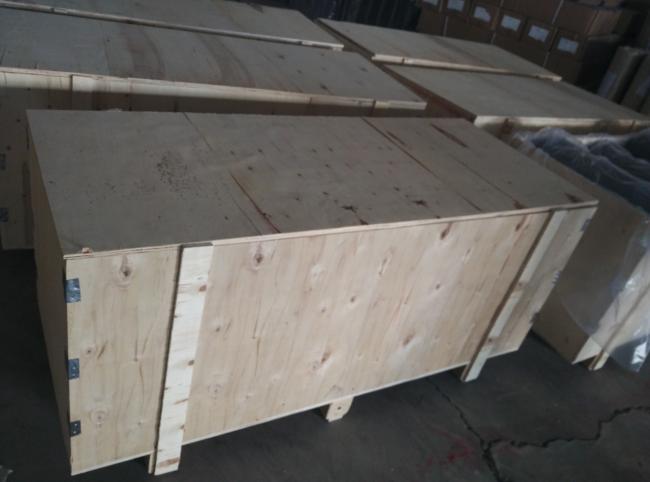

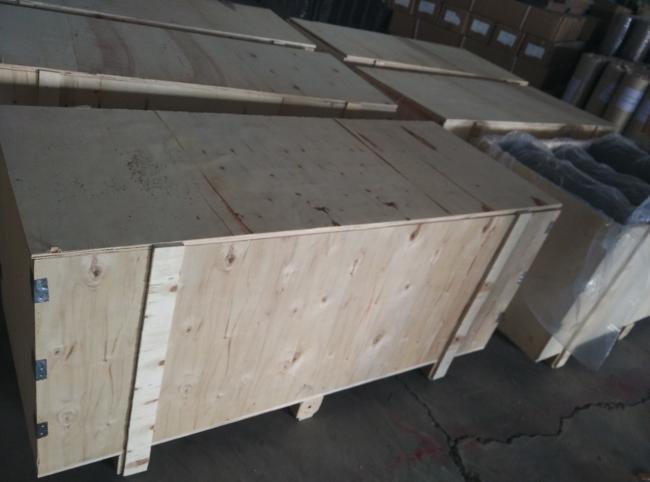

Packing & Delivery
