4ftx8ft 5052 Aluminum Expanded Wire Mesh For Walkway
EXPANDED ALUMINIUM 5052 for WALKWAY
Our Products:
I. Electric/Hot dipped galvanized expanded mesh;
II. Copper plated expanded mesh;
III. PVC coated expanded mesh;
IV.Aluminum expanded mesh.
* Material: Low carbon steel sheet, cold rolled sheet, aluminum sheet,stainless steel sheet
* Processing mode: Deep stamping and drawing process
* Classification:
| Specification | Design Size | Opening Strands | Size of Strands | Overall Thickness | Open Area | |||
| (Inches) | (Inches) | (Inches) | (Inches) | (%) | ||||
| SWD | LWD | SWO | LWO | Width | Thickness | |||
| 1/2" .051 | 0.5 | 1.2 | 0.375 | 0.937 | 0.093 | 0.051 | 0.158 | 65 |
| 1/2" .081 | 0.5 | 1.2 | 0.375 | 0.937 | 0.093 | 0.081 | 0.186 | 60 |
| 3/4" .051 | 0.923 | 2 | 0.813 | 1.175 | 0.109 | 0.051 | 0.2 | 78 |
| 3/4".081 | 0.923 | 2 | 0.75 | 1.68 | 0.129 | 0.081 | 0.22 | 76 |
| 3/4".081 | 0.923 | 2 | 0.75 | 1.68 | 0.165 | 0.081 | 0.3 | 69 |
| 3/4".125 | 0.923 | 2 | 0.688 | 1.68 | 0.169 | 0.125 | 0.305 | 68 |
| 1-1/2".081 | 1.333 | 3 | 1.188 | 2.5 | 0.128 | 0.081 | 0.24 | 85 |
| 1-1/2".125 | 1.333 | 3 | 1.188 | 2.5 | 0.162 | 0.125 | 0.3 | 79 |
| Note: Special size and specification can be customized. | ||||||||
Flatted expanded metal mesh also called:
expanded metal mesh screen
expanded metal mesh panels
flattened expanded metal mesh
small hole steel expanded metal mesh
expanded sheet metal mesh
fine expanded mesh panels

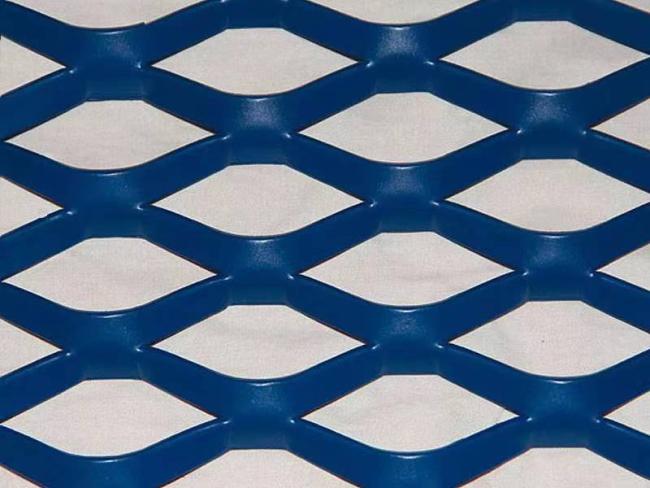

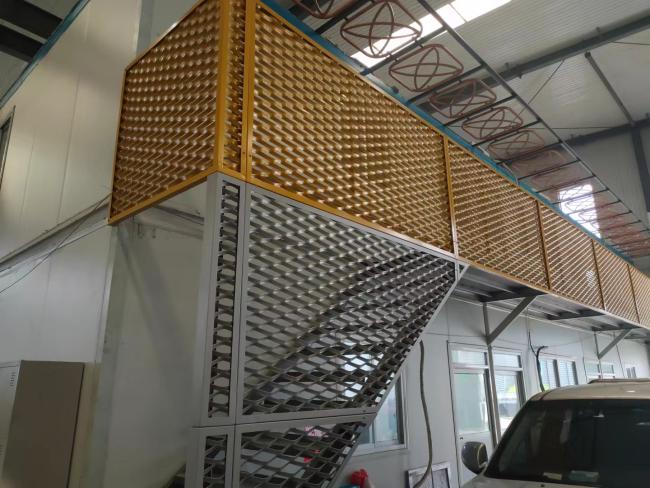

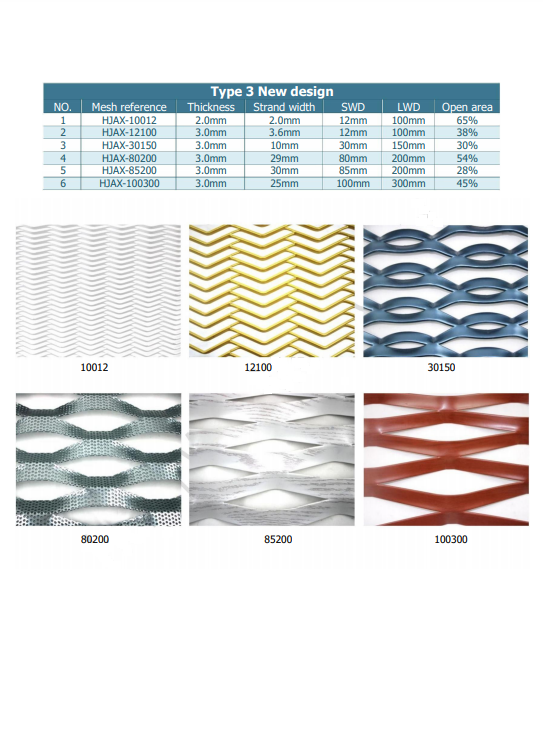

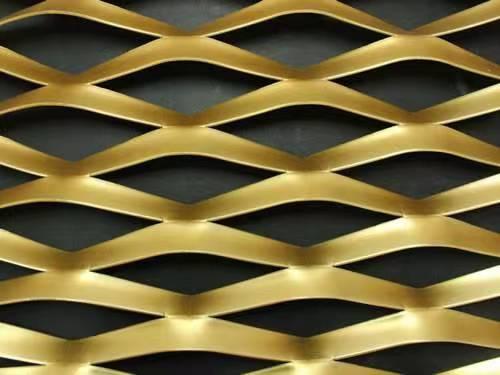

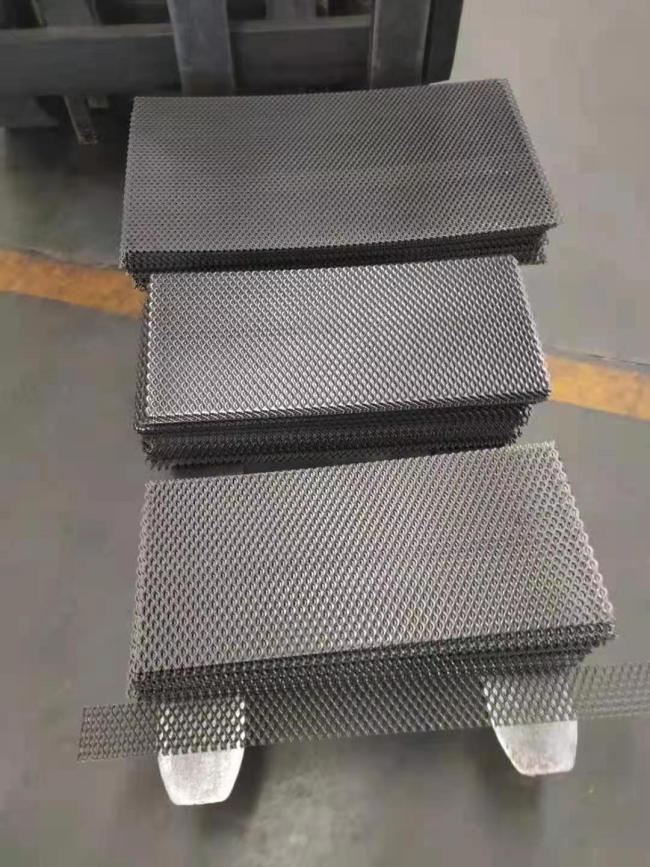

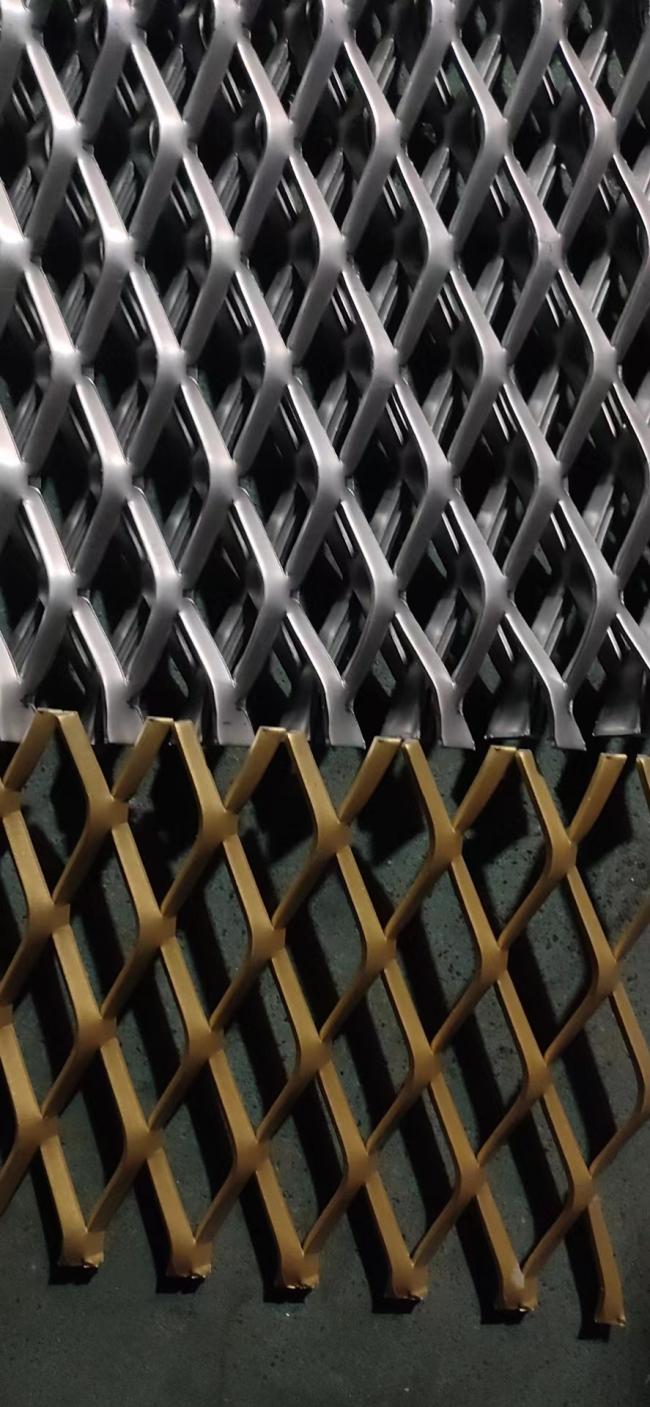

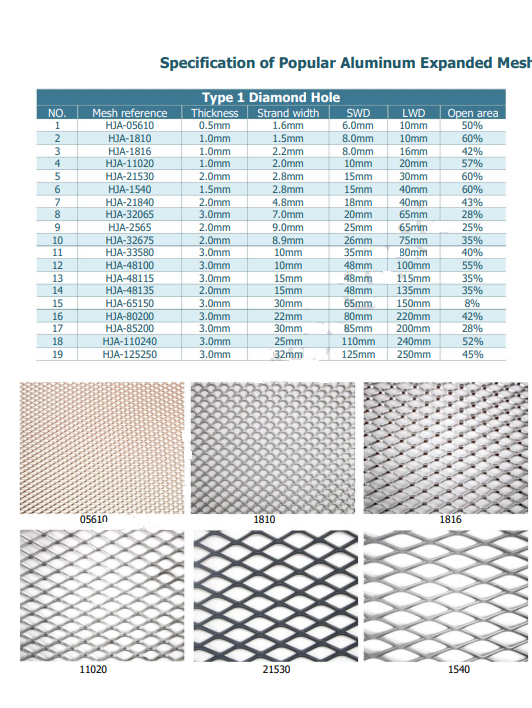

Expanded metal mesh Product pictures:
1. Can you make custom panels if I have a design?
Yes,we can OEM according to your detailed drawings.
2. Can I get a pcs of your products sample?
Yes, free samples will be provided anytime.
3. What type of materials do you use for your products?
Carbon steel plate,Stainless steel plate,Aluminum and Aluminum Alloy plate,Cooper plate,Galvanized plate etc.
Special material also available
4. Do you have any certificate?
Yes,we have ISO9001,ISO14001,BV certificate,SGS certificate.
