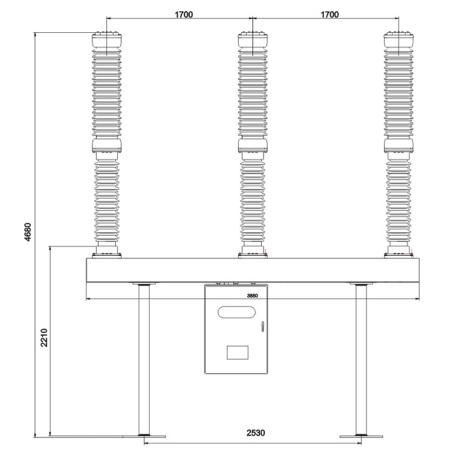

LW36 Live Tank 145kv 1250A 2500A 3150A SF6 Gas Circuit Breaker
MOQ:
1 SET
Delivery Time:
7-15 DAYS
Brand:
XG
Product Description
1. LW36 Type Live Tank 145kv 1250A 2500A 3150A Sf6 Gas Circuit Breaker
145kV SF6 circuit breaker adopts three phase porcelain knob construction, outdoor design.
Three phase serve for one spring operation mechanism, locates in the middle, three phase ganged. It adopts SF6 gas as insulation and arcing medium, the SF6 gas should be connective in three poles at working, it adopts
pointer density relay to monitor pressure and density. Improve mechanical efficiency and Reduce operate power by the greatest extent, because of adopting auto-accumulation energy principle and making use of optimal
design.
2. Technical request
| No. | Item | Unit | Parameter | |
| 1 | Rated voltage |
kV |
132/145 | |
| 2 | Rated power frequency withstand voltage(1min) | to ground | 230/275 | |
| between gap | 265/275 | |||
| 3 | Rated lightning impulse withstand voltage | to ground | 550/650 | |
| between gap | 630/650 | |||
| 4 | The power frequency withstand voltage when gas SF6 is zero pressure(5min) | 95 | ||
| 5 | Rated frequency | Hz | 50 | |
| 6 | Rated current | A | 3150 | |
| 7 | First pole to clear factor | 1.5 | ||
| 8 | Rated short circuit breaking current |
kA |
40/31.5 | |
| 9 | Rated short circuit making current | 100/80 | ||
| 10 | Rated short time withstand current | 40/31.5 | ||
| 11 | Rated peak withstand current | 100/80 | ||
| 12 | Rated short circuit continuous time | s | 4 | |
| 13 | Rated out of synchronism breaking current |
kA
|
10 | |
| 14 | Short line fault breaking current | 36,30 | ||
| 15 | Rated line charge breaking current | A | 31.5 | |
| 16 | Rated operating sequence | O-0.3s-CO-180s-CO | ||
| 17 | Switch off time | ms | 30±3 | |
| 18 | Switch on time | 75±8 | ||
3. Photo
4. Photo
5. Factory
6. FAQ
1. Send the technical data, better for all useful information; we will make a good recommendation.
2. The lead time depend on quantity of order. Some standard type is on stock. Otherwise, it will take 3-15 days.
3. All our activities are accredited to ISO 14001:2015 and IEC standard.
