LW36-110KV 126KV 132KV 145KV Outdoor 3 Phase Circuit Breaker

1. LW36 - 110KV 126KV 132KV 145KV Outdoor 3 Phase SF6 Circuit Breaker

LW36-72.5/126/145 self-energy type SF6 circuit breaker is a new generation of high voltage circuit breaker independently developed byour company. The circuit breaker has a great improvement in the principle of arc extinguishing compared with the conventional pressuregas type sulfur hexafluoride circuit breaker. It fully utilizes the blocking effect of the arc to increase the pressure of the sulfur hexafluoridegas in the pressurizing cylinder, which can significantly reduce the diameter of the pressure chamber and reduce the required operatingpower of the circuit breaker, so that no oil and gas leakage can be used and the reliability is improved. High spring operating mechanism.

At the same time, the operation noise is greatly reduced, which is most conducive to the use of urban network transformation.

The product is high in the West and common development with six sulfur hexafluoride gas as insulation and

arc extinction medium,using a single voltage variable outdoor device from boast type arc principle. The product is suitable for 126kV three-phase AC 50Hz power system. with points . and load current, overload current, short circuit current.

2. Outline dimension

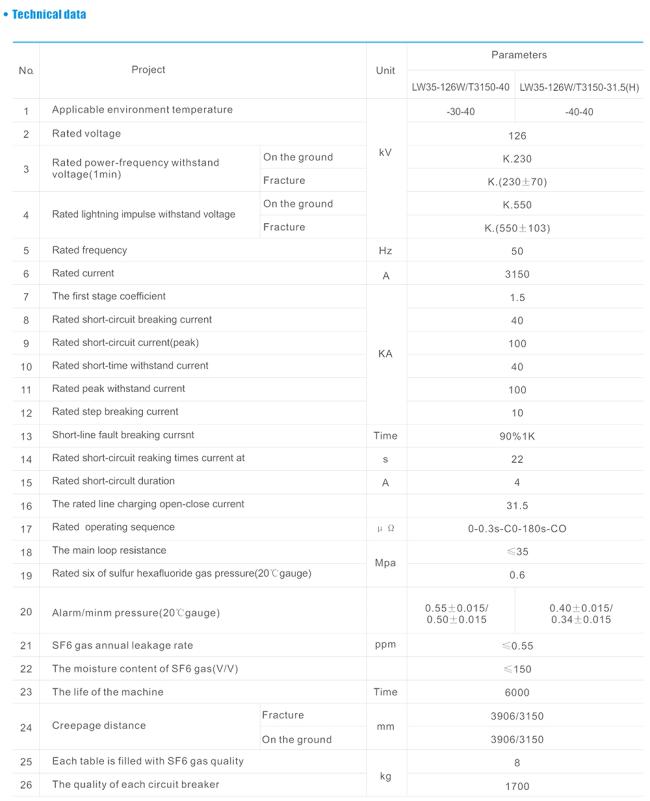

3. Technical data

4. Factory

5. Delivery

6. FAQ

1. Send the technical data, better for all useful information; we will make a good recommendation.

If possible please attach one reference picture to avoid any misunderstanding or any links from our website for we get a better understanding.

2. The lead time depend on quantity of order. Some standard type is on stock. Otherwise, it will take 3-15 days.

3. Usually shipped by sea, small order or urgent order we can send you by air.

4. All our activities are accredited to ISO 14001:2015 and IEC standard.

5. Technology ensure the quality satisfy international request.
