ISO9001 DC12V Truck Sleeper Cab Air Conditioner
Product Name :Mute Design DC Power LED Display Split Type Parking Air Conditioner For Heavy Duty Truck
Noiseless style , less working noise, Enjoy peach and comfortable
1. Main Instruction of Parking Air Conditioner :
- Split type ac is economy
- No need cut hole on cab
- Back mounted or roof mounted both ok.
- Noiseless design, better environment
Battery powered parking air conditioner is an auxiliary AC system on vehicles independent from original AC system on vehicles. parking air conditioner is powered by vehicle battery and is able to work standalone whenever the engine is running or stopping. In daytime, when vehicles are running, using of parking air conditioner can improve the effect of cooling together with original AC system. In nights, when vehicles are parking, parking air conditioner can work standalone to provide a cooling environment to drivers for overnight rest. Reasonable using of parking air conditionercan save obviously the fuel consumption caused by AC using.
Wide range of applications: Light & heavy duty trucks, construction machinery, agricultural machinery, mobile workshops, and any other equipment with 5-8 cbms cooling space.
2. Detail Images and Main Components :
3. Main Parameters:
| Model | FT-TAC-PV04 |
| Rated Voltage | DC12V |
| Voltage protection | 10V |
| Rated Current | 60A-80A |
| Rated Input | 850W |
| Rated cooling capacity | 1000-300W/ 3500-9000btu |
| Refrigerant | R134a |
| Injection Volume | 600g |
| Air flow | 600 m3/h |
| Compressor | DC scroll frequency conversion |
| Dimension of product | 700*560*230 mm |
| Weight | 27kgs |
4. Benefiary of parking air conditioner : Fuel , Energy , Money Saving
| Diesel Price | Fuel Consumption | Idle Time | Average Usage per year |
| $1.3/L | 3.5L/h | average 8h/day | 180days |
| Fuel Saving:$1.3L * 3.5l/h *8h*180days=USD6652.00/year | |||
5. Quick Installation
- condenser unit mounting :drill screw hole on cab, place the unit and fix it with screw
- evaporator unit mounting with screw
- connect pipe between outside and inside unit
- Vaccum the air conditioner

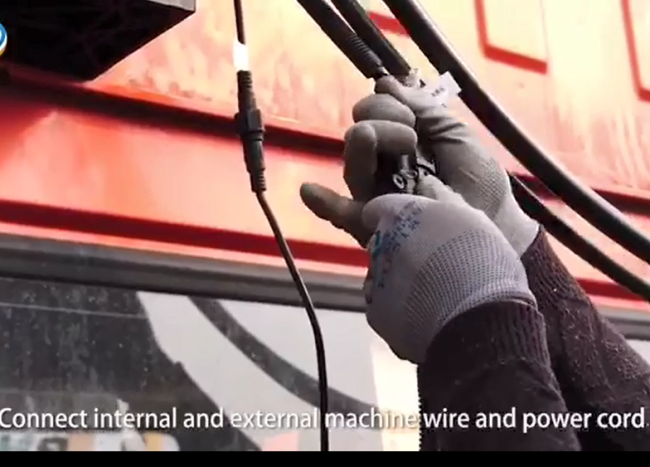

- connect wire to battery
- fill in refrigerant
- check working status and finish assembly
6.Applications
parking air conditioner can be widely used for any vehicle with small cabin, such as truck, caravan, forklift ,crane and other agriculture machine,construction machine and so on.
7. Shipping and package :
We are arrange sea, air and landing shipment for different customer requirements .
8. Our Service :
- support customer with formal technical suggestions
- response in 4 hours
- support customer to solve problem referring to our product
- follow custom for installation and after-sales service until no problem left
- support customer to solve any problem related to our products for life time
