Fresadora Equipment Zirconia Milling Machine CAD CAM PMMA Wax 7.5 Bar

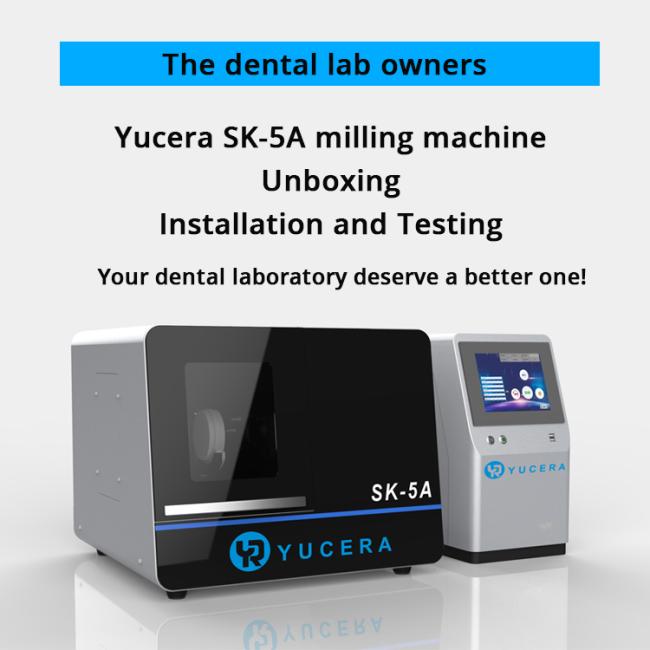

CADCAM 5 Axis Dental Milling Machine Zirconia Special Milling Machine Fresadora Equipment for Lab
Advantage of 5 axis dental milling machine
1. - Suitable for zirconia blocks , PMMA, Wax and Composite material;
2. - Horizontal processing-speed can be increased by nearly 20%;
3. - Simple maintenance- When the all-in-one machine fails, the after-sales maintenance is more complicated. The seperated equipment only needs to replace the processing system to complete the update and maintenance;
4. - Tool detection sensor with 2um
5. - 24hours on-line technical support
6. - Include hyperdent(free)
Key techinical parameter :
| Length, width and height |
Cutting machine:550*565*460mm Main engine :450*250*450mm |
Processing methods | Five-axis linkage, dry milling |
| weight |
Cutting machine:95KG Main engine:20KG |
Processable type | Inner crowns, full crowns, bridges, implant bridges, implant upper restorations, inlays, onlay, veneer, coping etc. |
| Rotating axis operating angle | A:360° B:±30° | Main axis speed | 0-60,000rmp |
| Total power | 800W | Working pressure | 4.5-7.5bar(no water, no gasoline ) |
| Cutting precision | 0.2mm | Installation conditions |
Stable voltage:220-230V Stable air pressure≥6.0bar Temperature:15-35℃ Relative humidity＜80% |
| Tool magazine capacity | 5 | Transmission interface | USB/Ethernet |
| Burs specifications |
Special props for handle diameter 4mm Automatic tool change, automatic tool detection |
Milling Materials | zirconia blocks , PMMA, Wax,Composite material |
Cleaning and maintenance after processing
Check the dust system regularly, preferably for two to three days, insert the trachea pipe into the hole behind the vacuum cleaner, press the dust key and suck.
