6 Ton Tire Combined Vibratory Road Roller LTC206P Hydraulic Drive 36.8kw

6 Ton Tire Combined Vibratory Road Roller LTC206P Hydraulic Drive 36.8kw

As we all know, if the road rollers are of different kinds, the functions they play will also be different. For example, most of the steel wheel rollers can be vibrated through the vibration of the vibrating wheel to solve the unevenness of gravel, soil and other materials, so the steel wheel roller is usually used for pavement, the ground of the foundation layer, such as compaction, in which the double drum roller is commonly used in asphalt paving layer; and tire roller is relying on its own gravity to carry out the leveling of the road surface work, mostly used for the asphalt material pavement of the re-pressure, can be used to make use of the rubber wheels kneading compacting features Eliminate all kinds of small cracks in the road surface, so that the surface of the denser, more waterproof.

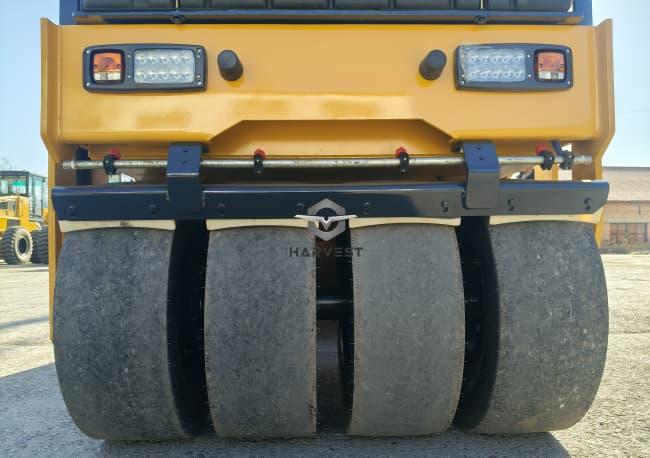

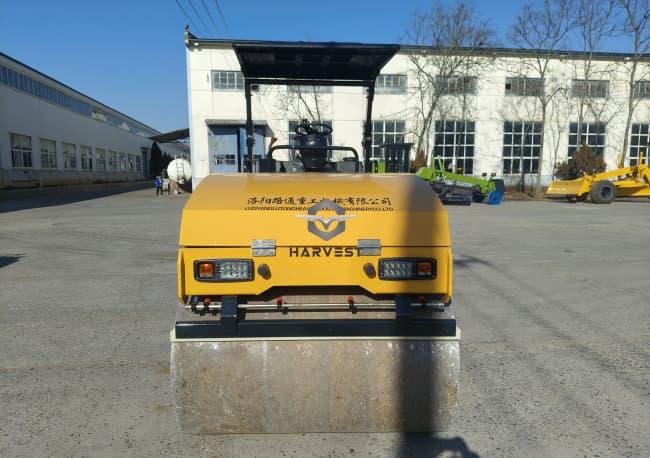

However, today we would like to recommend this small roller, does not belong to the steel wheel roller, nor is it included in the tire roller, it belongs to the combination of steel wheels and tires roller, the front wheel is a vibration function of the steel wheels, the rear wheel has four side-by-side glossy rubber wheels, a combination of both the steel wheel roller and the tire roller double performance, it is the LTC206P roller - a fully hydraulic dual-drive 3-ton front steel rear rubber roller, a fully hydraulic dual-drive 3-ton front steel rear rubber roller. It is LTC206P roller, a fully hydraulic dual-drive 6-ton front steel and rear rubber roller.

LTC206P road roller, the length of 3.38 meters, the width of 1.65 meters, the height of 2.75 meters (to the anti-turnover frame), the whole machine compaction width is 1.5 meters, the engine power of 36.8kw, the front steel wheel excitation force of 60kN, the climbing ability than the same type of double-steel wheel roller to strengthen the climbing force, that is, 35% of the climbing force, suitable for a variety of conditions of the place of compaction work, and its practicality is quite strong.

Technical Specification of LTC206

Configuration of 6-ton Front Steel Wheel Rear Tires Combined Hydraulic Vibratory Roller LTC206P:

Power: Standardly equipped with Changchai engine, or optional imported Perkins engine, which can provide sufficient power source for the roller;

Operation: The roller adopts a continuously variable speed + one-lever maneuver configuration, which allows for convenient adjustment of gear speed, while the front and rear frames are connected by a hydraulic articulating device, making the steering more flexible and lighter;

Sprinkling: The vehicle body is equipped with a large-capacity sprinkler tank, and the front and rear wheels are equipped with sprinklers, which can be switched between the modes of continuous sprinkling and indirect sprinkling;

Cleaning: The front and rear wheels of this roller are equipped with mud scrapers at the same time, which can promptly clean the asphalt sticking to the steel and rubber wheels after compaction, and speed up the efficiency of work;

In addition, the LTC206P 6-ton front steel rear rubber roller also has a fork-leg structure that facilitates side-to-side operation, a large-opening front hood that saves maintenance, a comfortable and vibration-dampening suspension seat, bright and long-lasting LED front and rear headlamps, and a safe and durable anti-tip rack and sunshade, and other configurations.
