23 Ton Hydraulic Vibratory Road Roller LTS723H with Detachable Sheepfoot

23 Ton Hydraulic Vibratory Road Roller LTS723H with Detachable Sheepfoot

Adopting foreign advanced technology and imported key components, the machine is a fully hydraulic vibratory roller. This machine is a super-heavy vibratory roller with large working quality and strong excitation force, thus it is the best compaction equipment for large-area, high-quality, high-efficiency and mechanized construction. It is suitable for crushing non-cohesive materials, such as gravel, crushed stone, sand and gravel mixture, sandy soil, etc.; it also has good compaction effect on the substrate material. This machine is the ideal equipment for foundation compaction in the projects of highway, mining road, large dam, important harbor and industrial site.

• Product Features

▲Power configuration for Weichai Tier 3 diesel engine, power reserve coefficient is large, in line with the work at an altitude of 4,000 meters above the working conditions of construction;

▲All-hydraulic single drive, vibration system frequency amplitude; articulated steering, two gears stepless speed, advanced technology; power-off brake, safe and reliable;

▲Streamlined lines, round arc surface windshield glass, curved shape hood, forming a unique appearance modeling style;

▲Hydraulic pumps and motors are made of international famous brand products with superior quality;

▲Optional detachable cam steel wheels.

▲Optional intelligent compaction management system.

Why is a single drum roller equipped with detachable sheepfood (padfoot)?

Sheepfoot refers to the steel wheels on the device many bumps on the road roller, because the bumps are shaped like sheep's feet so called sheepfoot. bumps in the shape of sheep's feet and cylindrical, etc. In the front and rear of the drum frame is equipped with a comb below the scraper, in order to remove the bumps embedded in the mud between the sticking block.

• Sheepfoot unit pressure is large, so that the filler is uniform, there is a pounding effect, compaction, suitable for compaction of clay soil and gravel layer. Especially for hard clay soil, the bumps have stirring, kneading and pounding effects, making the filler uniform, and the upper and lower layers are well bonded to avoid delamination. It is widely used for compaction of road base, bedding layer and embankment.
• Due to the small area of the bottom surface of the sheepfoot, thus the unit pressure is large and conical sheepfoot inserted into the soil layer, the surrounding soil also produces lateral extrusion effect, the compaction process is from bottom to top, so the compaction is uniform, the effect is good. As the soil surface formed a large number of pits, is conducive to the combination of the upper and lower soil layers, eliminating the planing process, increasing the integrity of the fill and seepage resistance, so the seepage requirements of high clay soil seepage control body more than the sheepfoot mill compaction. It is worth noting that sheepfoot is not suitable for compaction of sandy soil, because when sheepfoot is pulled out from the soil from the back of the traveling, the sandy soil that has just been compacted will be turned loose, so that it will not get the actual compaction.

Product Paramenters

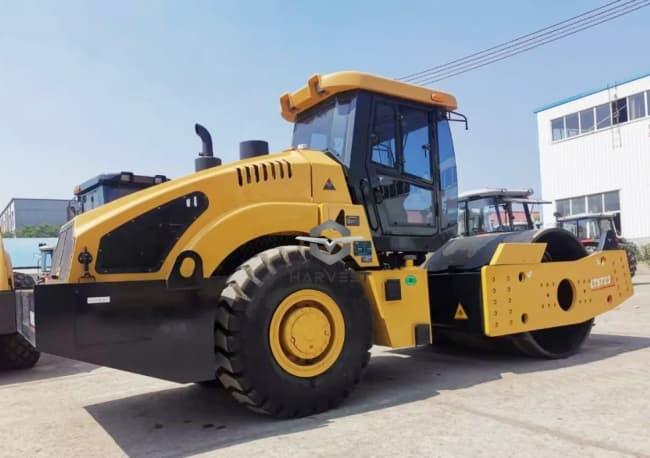

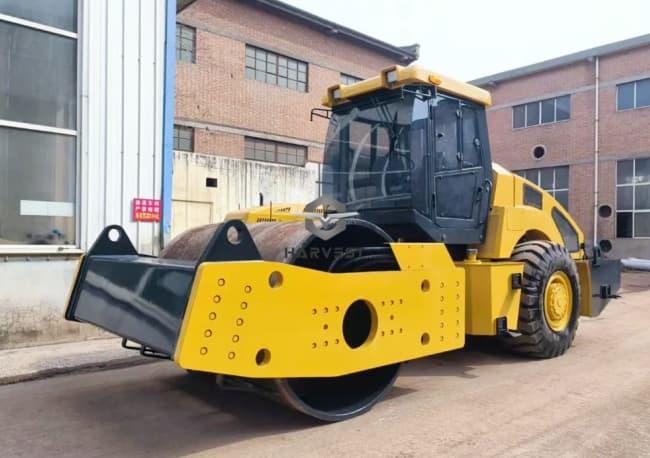

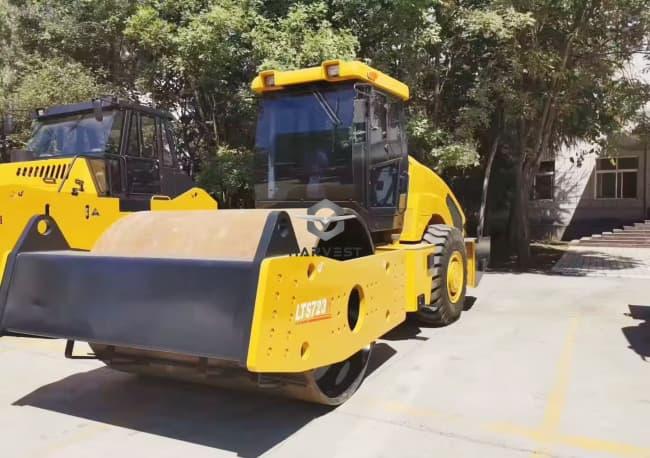

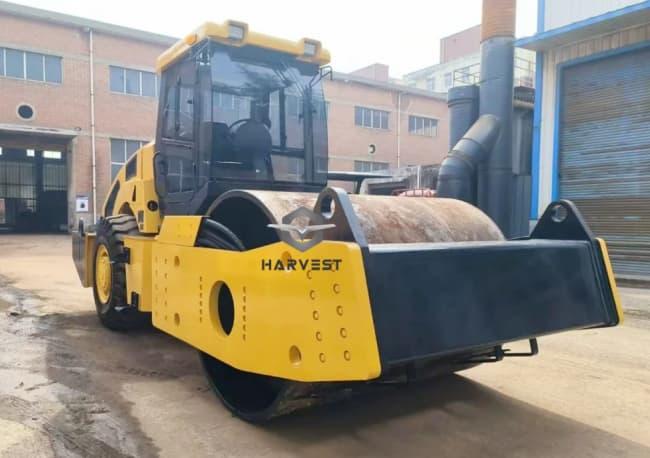

Detailed Pictures of 23 Ton Hydraulic Single Drive Single Drum Vibratory Roller LTS723H for Sale
