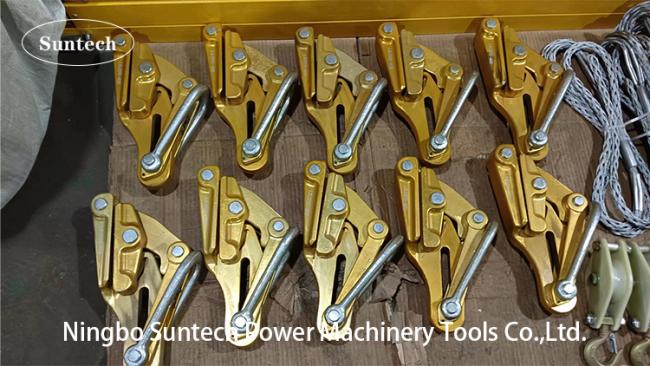

Lightweight Come Along Clamp 80KN Cable Pulling Conductors Adjustment
Cable Pulling Tools Wire Grip Clamp For Big Conductors Adjustment / Sagging
This wire grip clamp is for big conductors adjustment or sagging, which is processed during the heat treatment, and high temperature conditions,( quenched and tempered). Planar shape clamping jaw is suitable for pulling steel strand and steel wire, will not damage the cable's surface.
Wire Roper Clamp Features:
Cable Pulling Tools Wire Grip Clamp For Big Conductors Adjustment / Sagging
1. Forged with high strength Aluminum alloy;
2. Light in weight;
3. no damaging on wire.
Wire Grip Shipment
1. The wire grips will be shipped in plywood case by air or by ship.
2. We will ship the products within one month normally after receiving the payment.
3. Stock is available for standard product.
Self Gripping Clamp Detailed Spec
Cable Pulling Tools Wire Grip Clamp For Big Conductors Adjustment / Sagging
| Item No. | Model No. | Rated Load (KN) |
Applicable Conductor (ACSR-MM2) |
Max Open (MM) |
Unit Weight (KG) |
| 0201 | SKL-7 | 7 | 25~70 | 14 | 1.0 |
| 0202 | SKL-15 | 15 | 95~120 | 18 | 1.4 |
| 0203 | SKL-25 | 25 | 150~240 | 24 | 3.0 |
| 0204 | SKL-40 | 40 | 300~400 | 32 | 4.0 |
| 0205 | SKL-50 | 50 | 500~630 | 36 | 6.6 |
| 0206 | SKL-40G | 40 | 400 | 32 | 4.3 |
| 0207 | SKL-50G | 50 | 500 | 34 | 7.0 |
| 0208 | SKL-50GA | 50 | 630 | 36 | 7.3 |
| 0209 | SKL-60G | 60 | 720 | 38 | 9.2 |
| 0210 | SKL-70G | 70 | 900 | 42 | 14.0 |
| 0211 | SKL-80G | 80 | 1000 | 45 | 18.0 |
| 0212 | SKL-80GA | 80 | 1200 | 48 | 18.0 |
