Speedy Shaft Drive Transmission Cable Winch Puller With Gasoline Honda GX390 13HP Engine

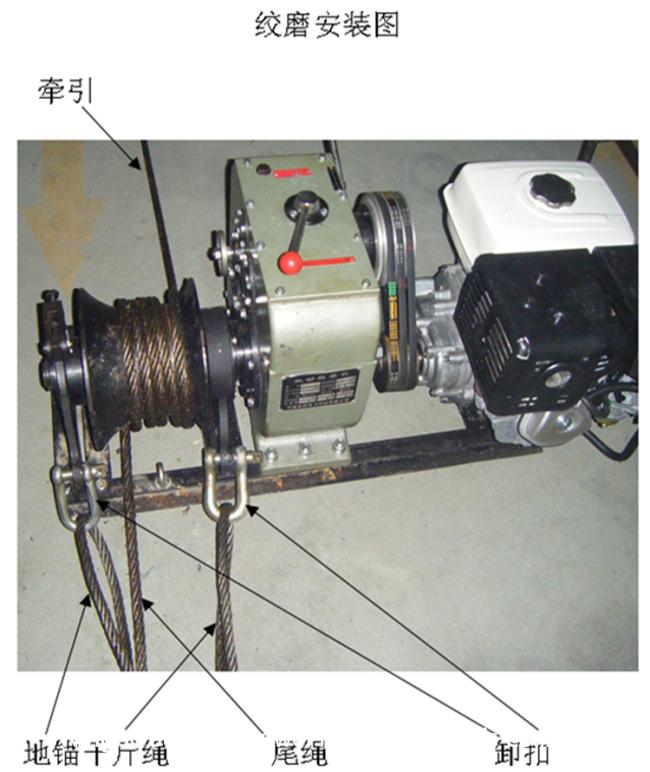

5 Ton Speedy Shaft Drive Transmission Gasoline Engine Winch with Honda GX390 13HP
Application
Gasoline engine powered winch referred to as gasoline winch, mainly used for erecting air high-voltage transmission lines and the laying of underground cables, gasoline engine powered winch automatic clamp brake and clutch transmission chain brake two kind of braking device, in the opposite direction are positive, the braking action.
Gasoline Winch can be modified as per requirement, such as changing curve capstan into straight even cylindrical shape and coming with steel rope.
Features
1) Speedy and Efficient
2) Safe and Reliable
3) Compact structure
4) Widely used
5) Light weight
Technical Data for 5 Ton Speedy Gasoline Engine Winch
| Model Type | Gear | Pulling Force(KN) | Pulling Speed(m/min) | Power(KW) | Dimension(mm) | Weight(kg) |
| JJM-5B HONDA gasoline engine GX390 13HP | Fast | 9 | 24 | 10 | 1100*498*600 | 137 |
| Mid | 15 | 14 | ||||
| Mid | 30 | 9 | ||||
| Slow | 50 | 5 |
