Electrical Equipment & Supplies Wires, Cables & Cable Assemblies Cable Manufacturing Equipment
China Pilot Wire Hydraulic Conductor Drum Stand For Construction Safety Tools for sale

Pilot Wire Hydraulic Conductor Drum Stand For Construction Safety Tools

Price Negotiable
Price: Negotiable
MOQ: 1set
Delivery Time: 1-2 Weeks
Brand: Suntech
Product Description

High-Performance Conductor Stringing Tools for Hydraulic Conductor Reel Stands

About us: Suntech Power Tools, which located in the southeast China, it is the earliest origin Power Tools Leading City in China.We are making the various related cable pulling tools, and hydraulic tension and puller to support the transmission work.All canaccept OEM and professionally produced per ISO 9001:2008, they are being sold to over more than 50 countries in the world,and has wined the best brand reputations. Some items like the stringing blocks,cable rollers,the cable jack stands,etc we can customized, and the Construction Safety Tools ,are not demanded the MOQ. You can freely help you out either

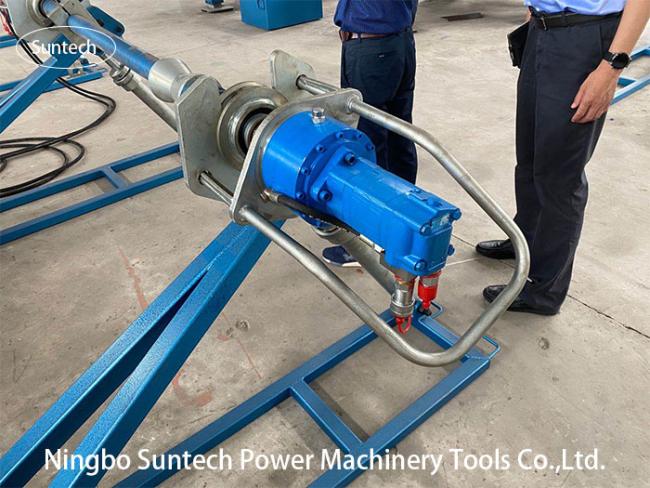

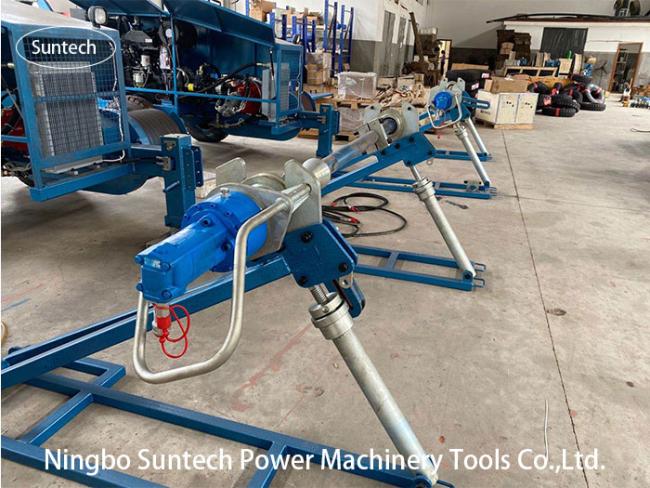

Hydraulic Conductor Reel Stands

Item number 15151 15152
Model SIPZ-5H SIPZ-7H
Applicable reel Diameter of coil (mm) Φ1250～2240 Φ1250～2500
Max width of coil (mm) 1400 1400
Diameter of axle hole (mm) Φ80-125 Φ80-125
Maximum weight (kg) 5000 7000
Max working torque (N.m) 1200 2000
Max Speed (rpm) 45 45
Axle diameter Φ76 Φ76
Weight (kg) 270 350
Length of hydraulic tube 13 13
