Heavy Duty Swivel Joint with 5-250KN Rated Load and 360° Rotation Capability for Transmission Line Stringing

Heavy Duty Swivel Joint 5-250KN for Transmission Line Stringing

Product Overview

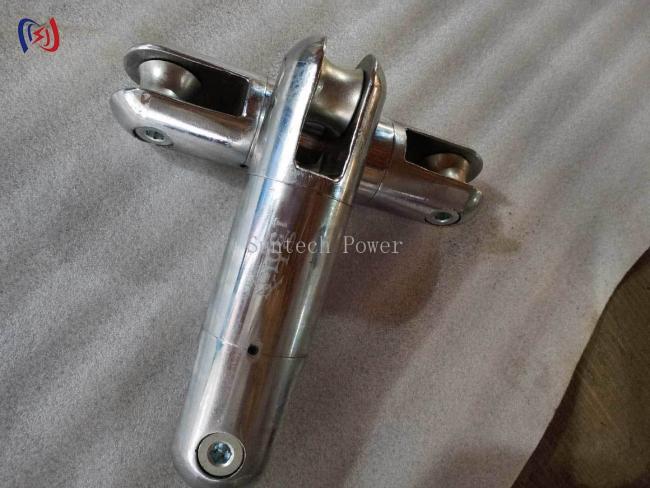

The SLX series heavy duty swivel joint is a key rotating connection component for transmission line stringing construction and maintenance, with rated loads from 5KN to 250KN. It supports 360° rotation to smoothly change cable laying direction and reduce twisting. Featuring a forged steel body with reinforced bearing system, locking mechanism and cable protection design, it is widely used in overhead line stringing, underground cable pulling and substation equipment connection.

Technical Specifications

Applications

· Overhead transmission line stringing and maintenance

· Underground cable pulling and laying

· Substation equipment connection

· Direction changes in cable routing to prevent twisting

Product Advantages

· 360° Rotation Capability — smooth rotation reduces cable twisting and maintains conductor alignment during stringing and pulling operations.

· Forged Steel Body with Reinforced Bearings — forged steel body withstands extreme loads up to 250KN, with a reinforced bearing system for heavy duty durability.

· Cable-Friendly Rounded Edges — rounded edges prevent cable sheath abrasion and protect contact surfaces during pulling.

Locking Mechanism and Safety Design — locking mechanism prevents accidental disconnection, with high-visibility safety marking and self-lubricating bearings for long service life.
