1000 Lb Hand Winch Boat Trailer Manual Cable Winch China Manufacturer
1000 Lb Hand Winch Boat Trailer Manual Cable Winch China Manufacturer

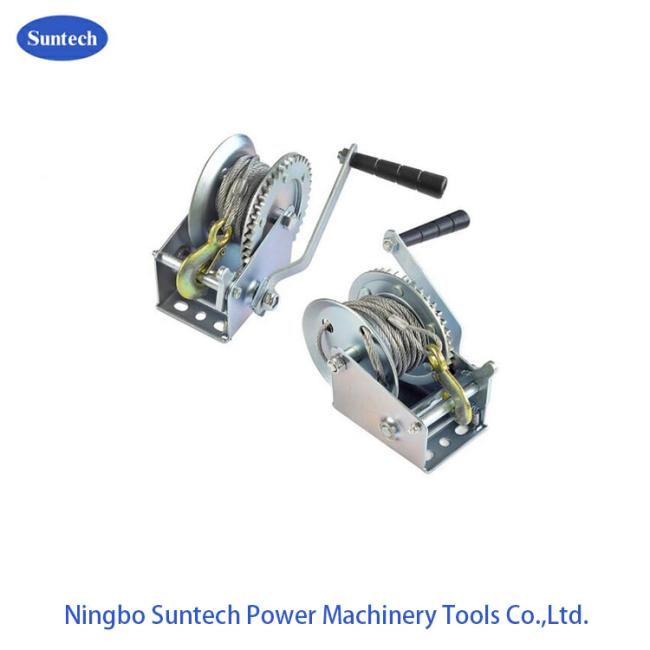

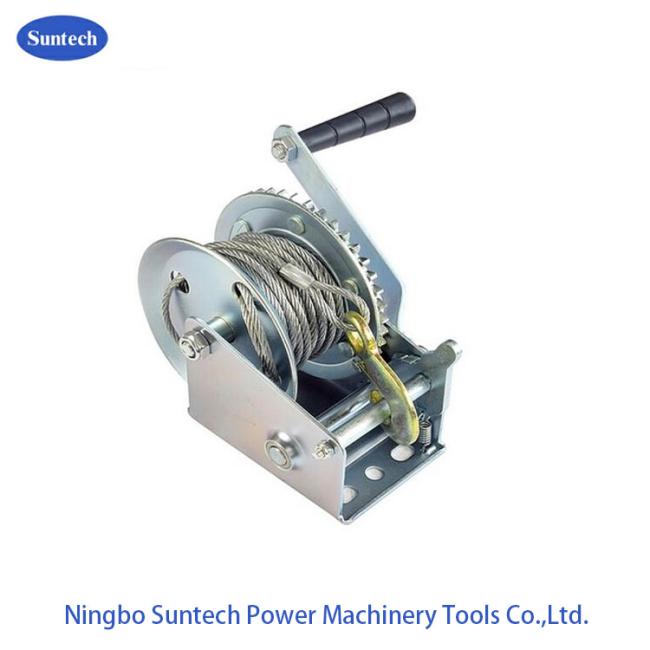

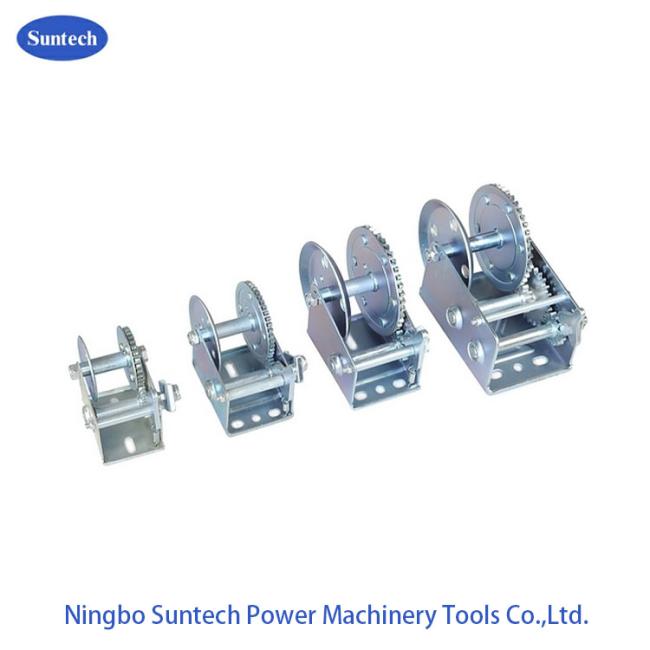

Heavy-duty 1000lb. capacity Endurance Marine Deck/Davit Crane is powerful enough to handle the tough jobs. Comes complete with a 1,000 lb. This hand winch is designed for toughest pulling demands. the typical applications is boat towing to trailers, cable pulling for poultry farms, and moving the load. All gears are hot treated for superb strength and long cycle life.
Features:
1. Positive Weston-style brake will hold the load in any position.
2. Compact, lightweight and rugged construction.
3. Mechanical components enclosed for protection and safety.
4. Available with a powder-coated or a marine-coated corrosion resistant finish.
5. Rope to drum fixing clamp provided is available
6. Heat-treated gears.
7. Strong removable handles.
8. High precision construction minimises gear noise.
| SPECIFICATION | ||||||||
| Item No. | Rated Capacity | Max Capacity | Cable Size(Dia.x L) | Strap Size(Dia.x L) | Gear Ratio) | Pcs/Carton | Packing Size | G.W/N.W |
| NW500 | 220 | 330 | 3.0mmx8m | 25mmx6m | 3.1:1 | 12 | 40*36.5*29.5 | 25/24kg |
| NW600 | 250 | 375 | 3.8mmx10m | 50mmx8m | 3.2:1 | 8 | 48*29.5*21 | 21/20kg |
| NW800 | 350 | 525 | 4.0mmx10m | 50mmx8m | 3.2:1 | 8 | 48*29.5*21 | 21/20kg |
| NW1000 | 450 | 675 | 4.2mmx10m | 50mmx8m | 4.1:1 | 6 | 39*22.5*34 | 22/21kg |
| NW1200 | 550 | 825 | 4.5x10m | 50mmx8m | 4.1:1 | 6 | 39*22.5*34 | 23/22kg |
| NW1400 | 600 | 900 | 4.8x10m | 50mmx8m | 4.1:1 | 6 | 39*22.5*34 | 24/23kg |
| NW1600 | 700 | 1050 | 4.8x10m | 50mmx8m | 4.1:1 | 6 | 39*22.5*34 | 24/23kg |
| NW1800 | 800 | 1200 | 5.0x10m | 50mmx10m | 4:1/8:1 | 4 | 48*35.5*19 | 19/18kg |
| NW2000 | 900 | 1350 | 5.2x10m | 50mmx10m | 4:1/8:1 | 4 | 48*35.5*19 | 20/19kg |
| NW2500 | 1100 | 1650 | 5.5x10m | 50mmx10m | 4:1/8:1 | 4 | 48*35.5*19 | 21/20kg |
| NW3000 | 1500 | 2250 | 5.8x10m | 50mmx10m | 4:1/8:1 | 4 | 52.5*33.5*20 | 22/21kg |
About us: Suntech Power Tools, which located in the southeast China, it is the earliest origin Power Tools Leading City in China.We are making the various related cable pulling tools, and hydraulic tension and puller to support the transmission work.All canaccept OEM and professionally produced per ISO 9001:2008, they are being sold to over more than 50 countries in the world,and has wined the best brand reputations. Some items like the stringing blocks,cable rollers,the cable jack stands,etc we can customized, and the Construction Safety Tools ,are not demanded the MOQ. You can freely help you out either
