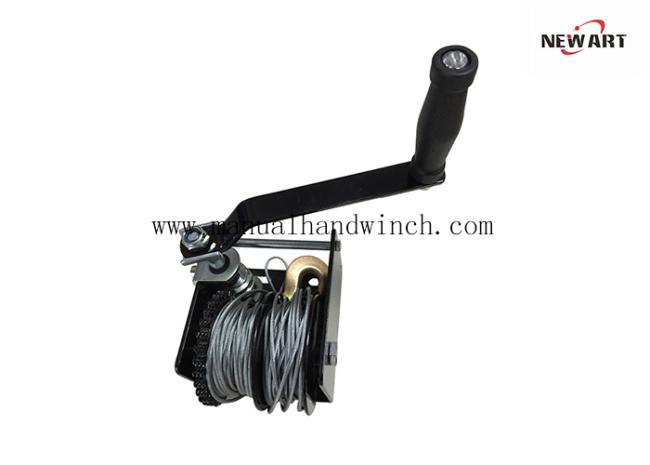

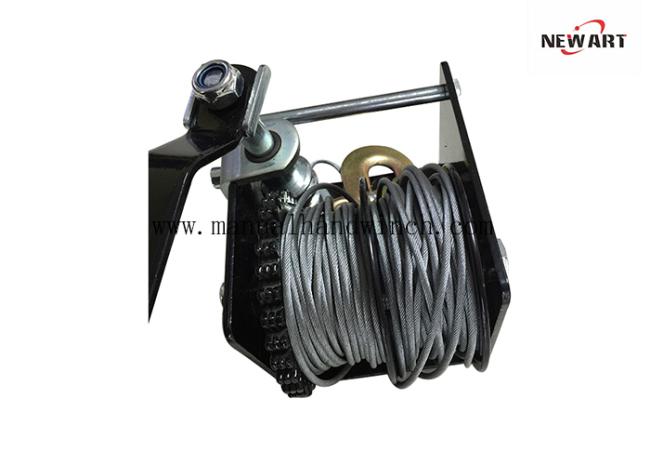

Split Drum Wire Rope Worm Gear Winch Greenhouse Lifting Hand Winch
Split Drum Wire Rope Worm Gear Winch Greenhouse Lifting Hand Winch
Descriptions
The 1500 lb. capacity worm gear hand winch is easy-to-mount and ideal for mobile use on pickup trucks and trailers. The worm gear winch features steel towing cable and a smooth-action worm gear drive to keep a firm hold on items in tow.
Worm gear winch allows for better load control and features a reinforced frame, comfort-grip handle. Worm gear provides load holding capability
when handle is released. Reel stops automatically, locking load in place whenever the handle is released.
High quality enamel paint finish, dipped and baked.
ADVANTAGE
• Portable, easy-to-mount manually operated winch.
• Smooth-operating worm gear drive.
• 25 ft. aircraft grade wire rope.
• Maximum weight capacity: 1500 lb.
SPECIFICATIONS:
| Model | BHW600CS | BHW600CD | BHW900CS | BHW900CD | BHW1100CS | BHW1100CD |
| Capacity (Lbs) | 400kg(880lbs) | 400kg(880lbs) | 900kg(2000lbs) | 900kg(2000lbs) | 1100kg(2500lbs) | 1100kg(2500lbs) |
| Gear ratio | 31:1 | 31:1 | 41:1 | 41:1 | 51:1 | 51:1 |
| Drum | Single | Divided | Single | Divided | Single | Divided |
| Drum-hub Diameter(mm) | ￠38 | ￠38 | ￠38 | ￠38 | ￠50 | ￠50 |
| Cable Diameter(mm) | ￠4.8 | ￠4.8 | ￠5.0 | ￠5.0 | ￠5.6 | ￠5.6 |
| Cable Length(m) | 8 | 15 | 15 | 15 | 30 | 30 |
| Hook Type | "Snap" hook | "Snap" hook | "Snap" hook | "Snap" hook | "Snap" hook | "Snap" hook |
| Surface Treatment | Black Spraying | Black Spraying | Black Spraying | Black Spraying | Black Spraying | Black Spraying |
| Hand length (mm) | 280 | 280 | 280 | 280 | 280 | 280 |
| N.W(kg)/pcs | 4.3 | 4.3 | 5.5 | 5.5 | 6.7 | 6.7 |
| Pcs/Each Carton | 4pcs | 4pcs | 4pcs | 4pcs | 4pcs | 4pcs |
