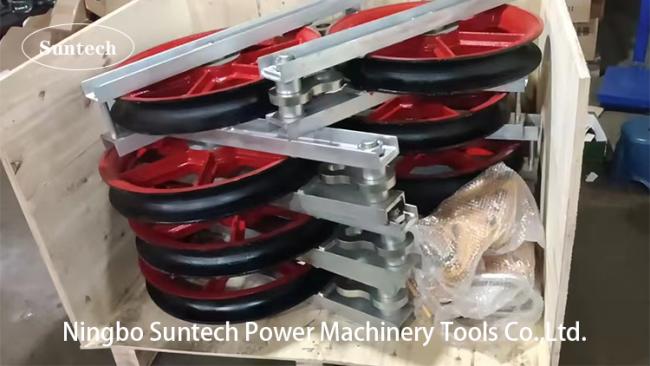

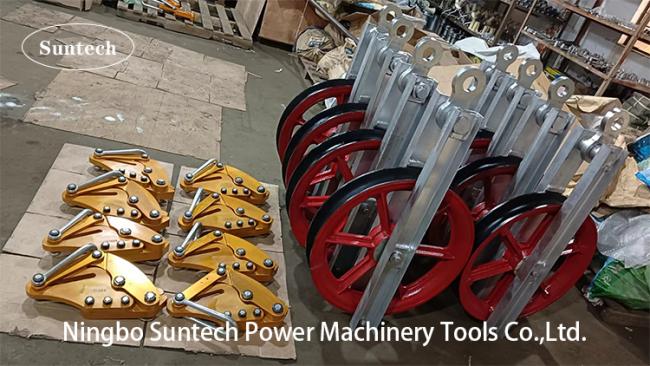

916mm 300KN Single Steel Sheave Conductor Stringing Blocks
916mm 300KN Single Steel Sheave Conductor Stringing Blocks
Suntech Power is a Professional manufacturer of transmission line stringing tools and equipments in Ningbo,China.
Such as conductor stringing blocks,cable roller,hoisting tackles,pulley blocks,conductor grippers,cable reel stand,gin poles,
inspection trolleys,hydraulic puller tensioner,conductor compressors,cable pulling winch,anti twisting wire steel rope,etc.
Apply to steel wire rope traction and turning. It can pass through steel wire rope connector;
The maximum allowable speed of hauling rope is 80m/min.
| Item number | Model | Rated Load(KN) | Sheave Diameter(mm) | Sheave Width(mm) | Weight(kg) | Remark |
| 12141 | THZ1-5 | 50 | Φ308 | 75 | 22 | Steel Sheave |
| 12141A | THZ1-8 | 80 | Φ308 | 110 | 30 | |
| 12142 | THZ1-16 | 160 | Φ600 | 110 | 115 | |
| 12143 | THZ1-30 | 300 | Φ916 | 110/125 | 200 | |
| 12141B | THZ2-10 | 100 | Φ308 | 110 | 52 | |
| 12142A | THZ2-16 | 160 | Φ660 | 110 | 68 |
About us: Suntech Power Tools, which located in the southeast China, it is the earliest origin Power Tools Leading City in China.We are making the various related cable pulling tools, and hydraulic tension and puller to support the transmission work.All canaccept OEM and professionally produced per ISO 9001:2008, they are being sold to over more than 50 countries in the world,and has wined the best brand reputations. Some items like the stringing blocks,cable rollers,the cable jack stands,etc we can customized, and the Construction Safety Tools ,are not demanded the MOQ. You can freely help you out either
