Hydraulic Crimping Tools Featuring High Pressure Hydraulic Pump for Power Supply to Cutting Compressing and Punching Machines
Gasoline Power Electric Pump Crimping Super High Pressure Hydraulic Pump
High Pressure Hydraulic Pump Application
Application of hydraulic pump: to provide power for the cutting tool, the hydraulic compressor, punching machine
and other construction machinery, which is operated in the wild field in electric power, railway, rescue, construction and other industries.
High Pressure Hydraulic Pump Technical Data
| Item number | Model | Engine Tyde | Power |
Rated Pressure (Mpa) |
Max Oil Pressure (Mpa) |
Rated Flow (L/min) |
Weight (kg) |
|
| Hig | Low | |||||||
| 16146 | YBQA-80-02 |
Gasoline engine |
5.0HP | 80 | 94 | 1.6 | / | 55 |
| 16147 | YBCA-80-02 |
Diesel engine |
4.0HP | 80 | 94 | 1.6 | / | 65 |
| 16144 | YBDA-80-02 |
Electric engine |
1.5KW | 80 | 94 | 1.6 | / | 45 |
| Item number | Model | Engine Tyde | Power |
Rated Pressure (MPa) |
Max Oil Pressure (MPa) |
Rated Flow (L/min) |
Weight (kg) |
|
| Hig | Low | |||||||
| 16146A | YBQA-80-03 |
Gasoline engine |
5.0HP | 80 | 94 | 2.05 | 11.02 | 55 |
| 16147A | YBCA-80-03 |
Diesel engine |
4.0HP | 80 | 94 | 2.05 | 11.02 | 65 |
| 16144A | YBDA-80-03 |
Electric engine |
3.0KW | 80 | 94 | 1.6 | 8 | 45 |

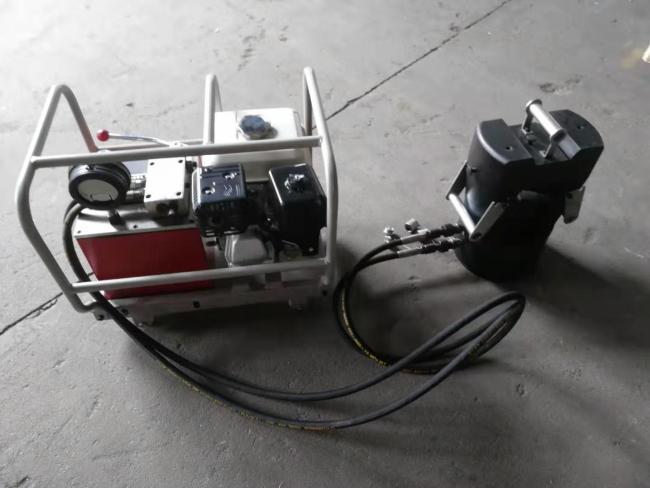

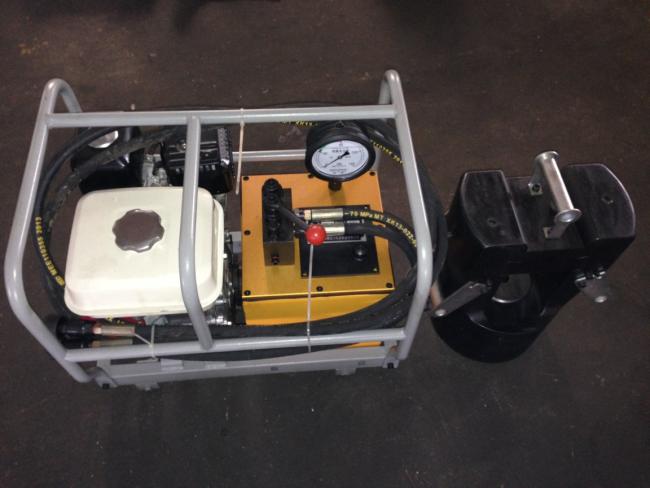

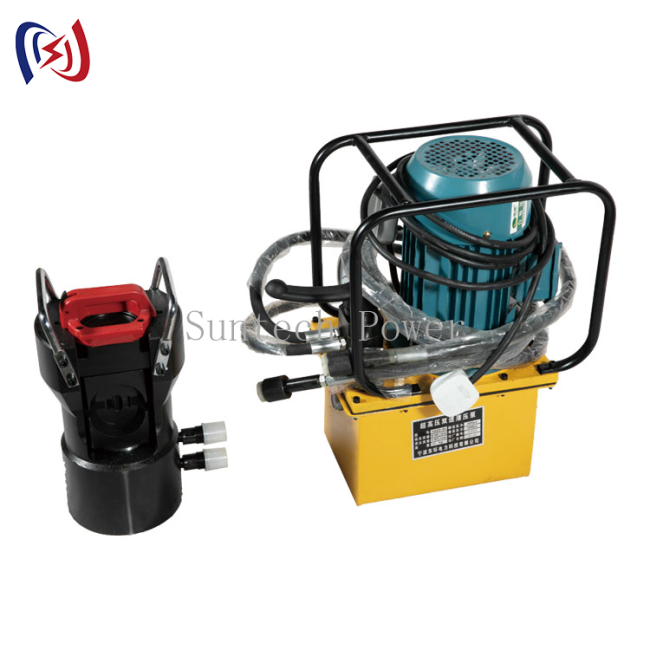

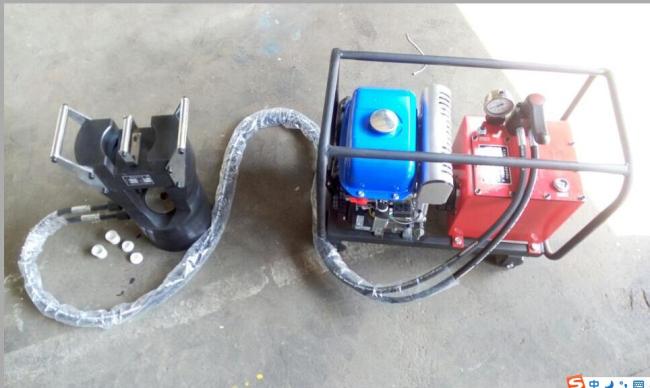

High Pressure Hydraulic Pump Pictures
